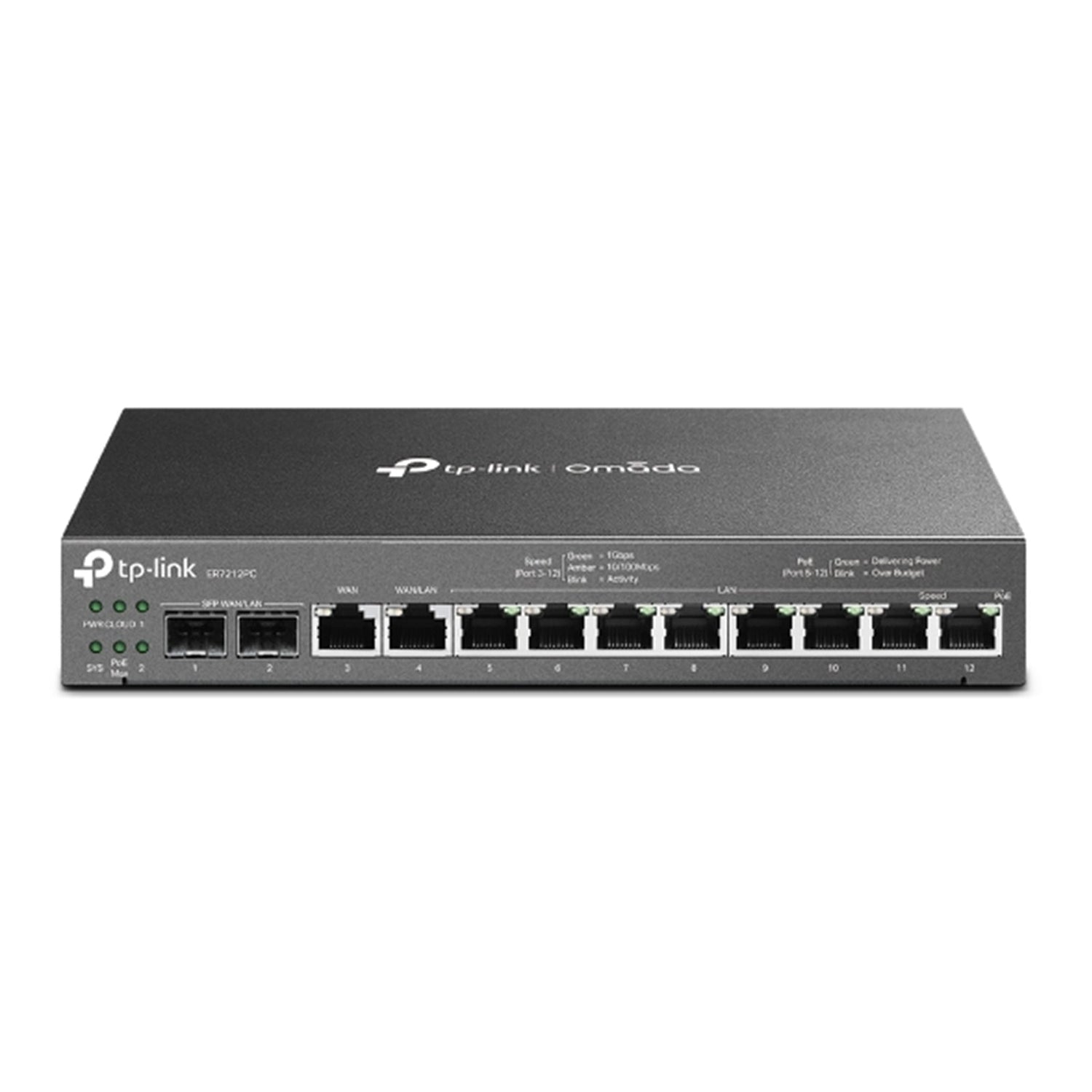

TP-Link Omada ER7212PC 3-in-1 (Router, POE Switch and Omada Controller) Gigabit VPN Router
$300.00
Omada ER7212PC 3‑in‑1 Gigabit VPN Router with PoE and Integrated Controller
The Omada ER7212PC is a compact 3‑in‑1 networking solution designed for homes and small businesses. It combines a high‑performance router, PoE+ switch, and embedded Omada SDN controller in a single device to simplify deployment, reduce clutter, and streamline management.
Key Features
3‑in‑1 Design
- Router, PoE switch, and Omada controller integrated into one compact unit
- Replace multiple devices and perform unified deployment from a single box
- Manage and update connected devices in bulk without complex individual setup
Professional Hardware Performance
- Dual‑Core 1.2 GHz CPU with 1 GB DDR3 memory
- Up to 12 x Gigabit ports for high‑speed wired connectivity
Flexible Multi‑WAN Connectivity
- Up to 4 x WAN Gigabit ports:
- 2 x Gigabit SFP WAN/LAN ports
- 1 x Gigabit RJ45 WAN port
- 1 x Gigabit RJ45 WAN/LAN port
- Multi‑WAN Load Balancing distributes data streams based on bandwidth to optimize multi‑line broadband usage
Integrated PoE+ Switch
- 8 x 802.3at/af‑compliant PoE+ RJ45 LAN ports
- 110 W total PoE power budget*
- Ideal for powering PoE‑supported devices such as access points, IP cameras, and IP phones
- Helps lower infrastructure costs for small businesses
*110 W total PoE power budget.
Embedded Omada SDN Controller
- Built‑in Omada SDN controller for centralized, software‑defined network management
- Manage and update devices in bulk without extra hardware controllers
- Cloud access and Omada app support:
- Remote control of connected devices
- Real‑time network monitoring and maintenance
- Captive portal configuration
- Manages up to 1 router, 2 switches, and 10 EAPs
High‑Security, High‑Performance VPN
- Supports multiple VPN protocols:
- IPSec, OpenVPN, PPTP, L2TP in Client/Server mode
- One‑click auto IPSec VPN for simplified configuration and deployment
- Pass‑through traffic support for flexible VPN scenarios
- VPN client capability connecting to up to 10 VPN servers
Robust Security Features
- Powerful Firewall
-
Advanced firewall policies to protect network and data
-
IP/MAC/URL/Keyword Filtering
-
Helps prevent viruses and attacks from intruders
-
Convenient VLAN Support
-
Create virtual network segments to enhance security and simplify management
-
IP‑MAC Binding
-
Reserves static IP assignments to defend against ARP attacks and spoofing
-
DoS Defense
-
Automatic detection and blocking of DoS attacks such as:
- TCP/UDP/ICMP Flooding
- Ping of Death
- Other related threats
-
One‑Click ALG Activation
- Application Layer Gateway support for:
- FTP, H.323, SIP, IPSec, PPTP
Clean, Quiet, and Easy Installation
- Fanless design for noiseless heat dissipation in offices and shops
- Compact, minimalist form factor suitable for:
- Desktops and office corners
- Ceilings and varied retail or office spaces
- Supports desktop and wall mounting for flexible installation
Technical Specifications
General
| Category | Details |
|---|---|
| Type | VPN Router |
| Connectivity | Wired |
| Max Wired Transfer Rate | 10/100/1000 Mbps |
Interfaces
| Interface Type | Quantity / Description |
|---|---|
| Gigabit SFP WAN/LAN ports | 2 |
| Gigabit WAN port | 1 |
| Gigabit LAN/WAN port | 1 |
| Gigabit LAN ports | 8 |
IEEE Standards & Protocols
| Standards & Protocols |
|---|
| IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q |
| TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |
Hardware
| Item | Details |
|---|---|
| Button(s) | Reset Button |
| Power Supply | 53.5 VDC / 2.43 A Adapter |
| Dimensions (W x D x H) | 226 x 131 x 35 mm |
Security & Access Control
| Feature Category | Details |
|---|---|
| Filtering | URL Filtering |
| Attack Defense | TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN |
| Access Control | Source/Destination IP‑based Access Control |
DHCP & Multi‑Network
| Feature | Details |
|---|---|
| DHCP | DHCP Server, DHCP Address Reservation |
| Multi‑IP Interfaces | Supported |
| Multi‑Net DHCP | Supported |
VPN Performance
| VPN Type / Mode | Throughput |
|---|---|
| IPsec VPN (AES256) | 168.5 Mbps |
| OpenVPN | 34 Mbps |
| L2TP (Unencrypted) | 845.3 Mbps |
| L2TP (Encrypted) | 333.2 Mbps |
| PPTP (Unencrypted) | 1012.6 Mbps |
| PPTP (Encrypted) | 401.4 Mbps |
Management & Cloud
| Management Feature | Details |
|---|---|
| App | Omada App |
| Cloud Access | Supported |
| Dynamic DNS | Dyndns, No‑IP |
| Web Management Interface | Supported |
| Remote Management | Supported |
| Configuration | Export & Import Configuration |
| SNMP | v1/v2c/v3 |
| Syslog Support | Supported |
Management Functions
- Automatic device discovery
- Intelligent network monitoring
- Abnormal event warnings
- Unified configuration
- Reboot schedule
- Captive portal configuration
Traffic Management & NAT
| Feature Category | Details |
|---|---|
| Bandwidth Control | IP/Port‑based Bandwidth Control |
| Load Balance | Intelligent Load Balance, Application Optimized Routing, Link Backup, Online Detection |
| NAT | Multi‑Net NAT, Virtual Server, NAT‑DMZ |
| ALG | FTP/H.323/SIP/IPSec/PPTP ALG |
| UPnP | Supported |
| Session Limit | IP‑based Session Limit |
Environment
| Condition | Range |
|---|---|
| Operating Temperature | 0–45°C (32–1113°F) |
| Storage Temperature | −40–70°C (−40–158°F) |
| Operating Humidity | 10–90% RH non‑condensing |
| Storage Humidity | 5–90% RH non‑condensing |
Package Contents
- ER7212PC
- Power Adapter
- Power Cord
- Quick Installation Guide
Warranty
- Limited Lifetime Warranty
