Gigabyte H810M GAMING WIFI6 Intel 1851 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, WiFi 6, 1x DisplayPort / 1x HDMI Port

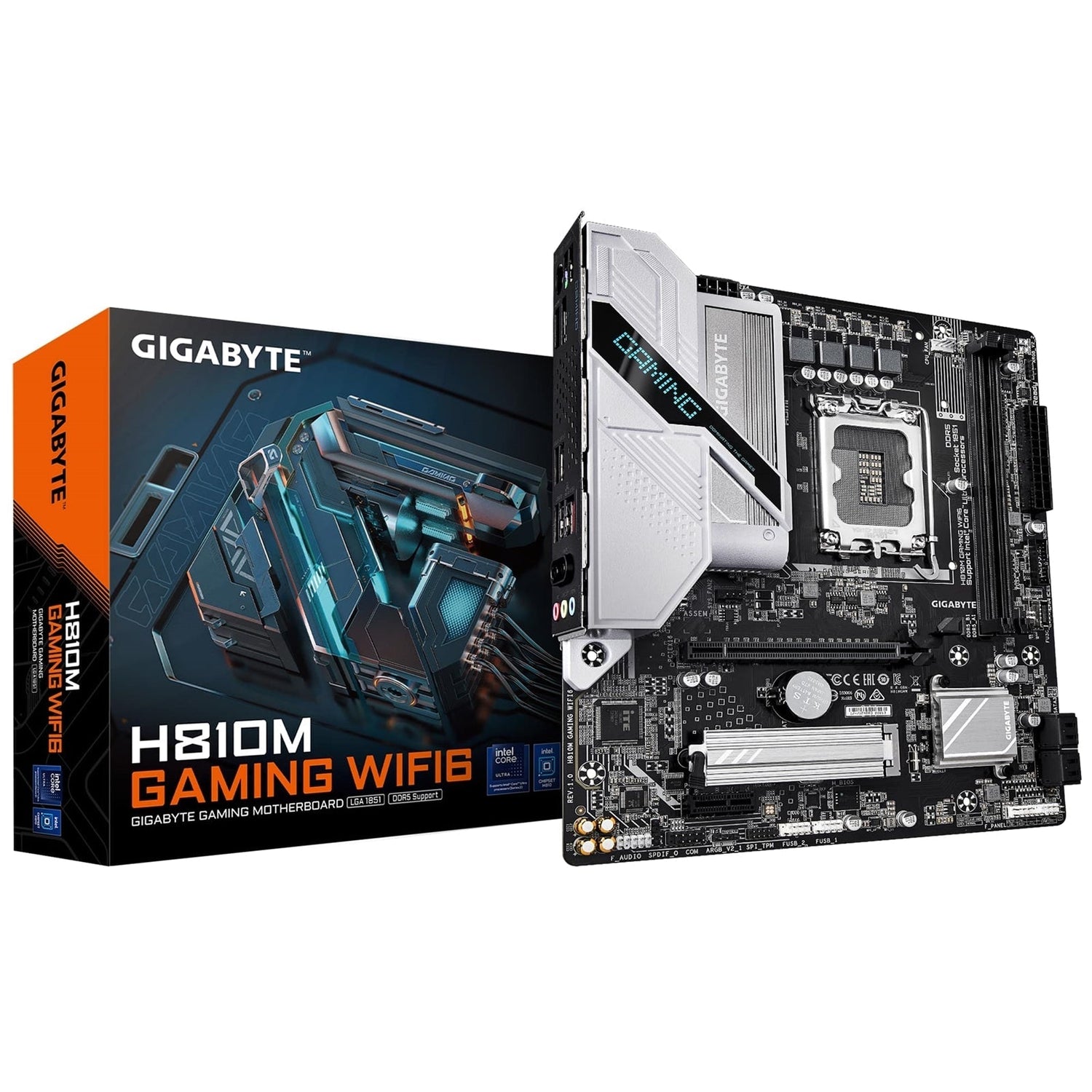

Gigabyte H810M GAMING WIFI6 Motherboard

A compact Micro ATX gaming motherboard designed for smooth, reliable performance with next-generation connectivity and streamlined DIY assembly.

Key Features

Optimized for Intel Core Ultra (Series 2)

• LGA1851 socket
• Supports Intel Core Ultra Processors
• Hybrid VRM Design for consistent, high-powered performance
• 4 VCORE phases to unlock the full power of multi-core CPUs
• 1 VCCGT phase optimized for integrated GPU performance and memory management
• VCCSA phases to deliver reliable power to CPU-connected PCIe lanes

Steady Power for Better Gaming

BETER PLAY GAMING Series design helps keep your gaming smooth, delivering stable power and performance for demanding workloads.

Cooling & Thermal Solutions

Comprehensive Thermal Design

GAMING motherboards feature advanced full-metal thermal design and durable heatsinks to help keep your system cool and efficient.

M.2 Thermal Guard

• Helps prevent throttling and bottlenecks on high-speed M.2 SSDs by dissipating heat before it becomes an issue.

Smart Fan 6 – Cool, Quiet, Customized

• Fan and cooling controls designed for flexible, quiet, and efficient operation.

Storage & Expansion

Ultra-Fast Storage

• PCIe 4.0 x4 M.2 slot for high-speed SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, 1, 5, 10 support for SATA storage devices

Expansion Slots

• 1 x PCI Express x16 slot (PCIe 4.0, running at x16)
• The PCIEX16 slot can only support a graphics card or an NVMe SSD
• 1 x PCI Express x1 slot (PCIe 3.0, running at x1)

Networking & Wireless

Fast Networking

• Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)

Built-in Wi-Fi 6 & Bluetooth

• Realtek Wi-Fi 6 RTL8851BE
• Wi-Fi a/b/g/n/ac/ax, supporting 2.4/5 GHz bands
• Supports 11ax 80MHz wireless standard
• Bluetooth 5.3
• Actual data rate may vary depending on environment and equipment

WIFI EZ-Plug

• Quick and easy design for Wi-Fi antenna installation

Connectivity & I/O

Extended Display Connectivity

• HDMI port, supporting up to 4096x2160@60 Hz
• HDMI 2.1 and HDCP 2.3
• DisplayPort, supporting up to 3840x2160@60 Hz
• DisplayPort 2.1
• (Graphics specifications may vary depending on CPU support.)

USB Ports

• 1 x USB Type-C port with USB 3.2 Gen 1 support (front panel via internal header)
• 3 x USB 3.2 Gen 1 ports (1 rear, 2 via internal header)
• 5 x USB 2.0/1.1 ports on the back panel
• 4 x USB 2.0/1.1 ports via internal headers

DIY-Friendly Design

Hassle-Free Assembly

• EZ-Latch: PCIe x16 slot with quick release design
• M.2 EZ-Latch Plus: Screwless M.2 SSD installation
• Designed to make building your own PC a smooth and enjoyable process.

Friendly UI

• Multi-theme BIOS interface
• Q-Flash Auto Scan in BIOS and software for easier updates

Audio & Immersion

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel support
• Jack functionality configurable via audio software
• 7.1-channel configuration available in audio software
• Support for S/PDIF Out

Software & Unique Features

• Support for GIGABYTE Control Center (GCC)
• Available applications may vary by motherboard model and specifications
• Support for Q-Flash
• Support for Smart Backup
• Norton Internet Security (OEM version)
• LAN bandwidth management software

Built to Last – Born from Ultra Durable

This technology embodies a commitment to excellence, providing a platform that is powerful, long-lasting, and reliable. GAMING series motherboards are engineered to endure and excel.

GIGABYTE motherboards also reflect ongoing BIOS improvement and collaboration with the user community, helping democratize next-level computing power.

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN & Wireless

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable RGB Gen2 LED strip headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C header (USB 3.2 Gen 1 support)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port (CPU dependent)
• 1 x DisplayPort (CPU dependent)
• 1 x USB 3.2 Gen 1 port
• 5 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller & Monitoring

• iTE I/O Controller Chip
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control (depends on installed fan)

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit
• Intel NPU driver is only supported on Windows 11

Form Factor
