Gigabyte H610M K DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x HDMI Port

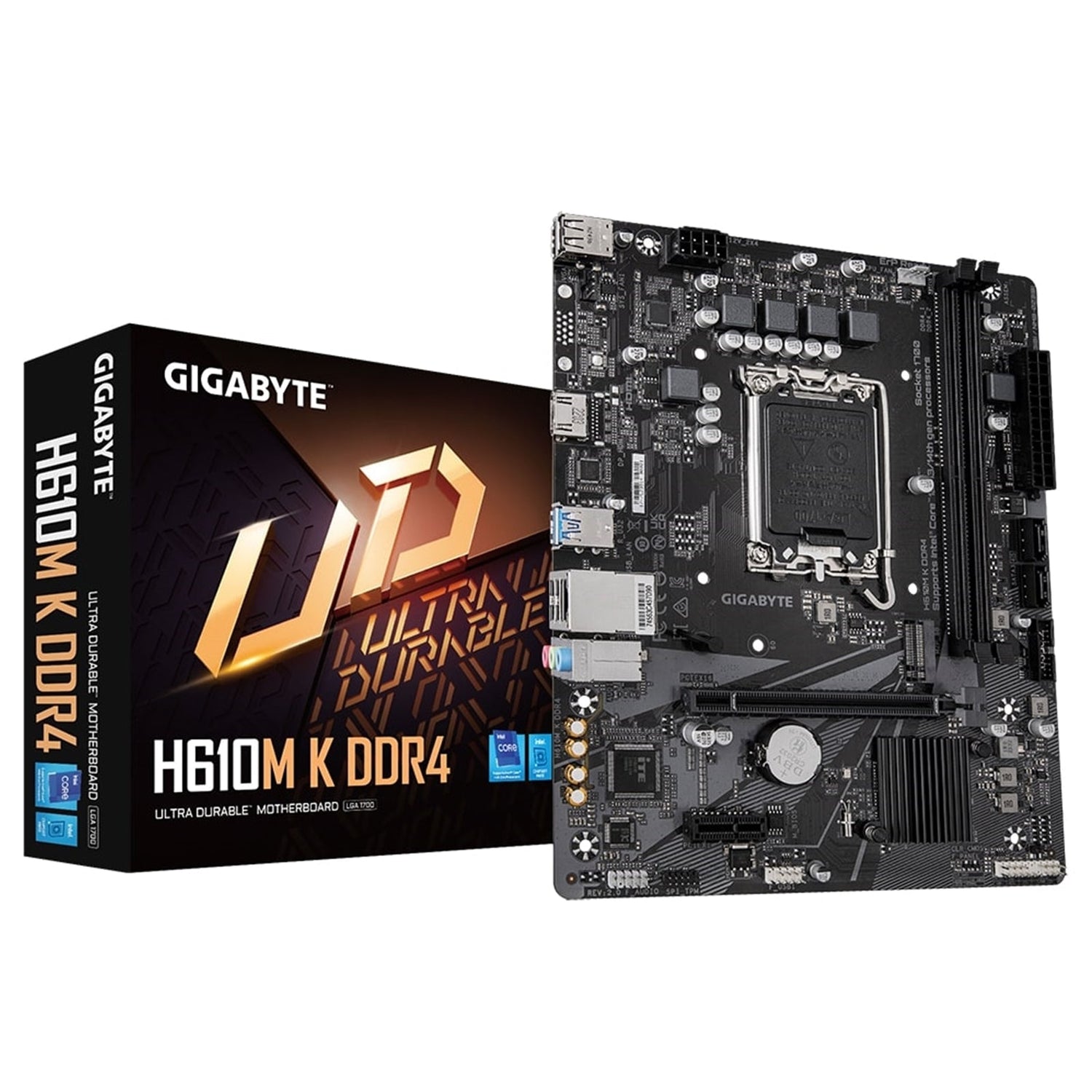

GIGABYTE H610 Micro ATX Motherboard (LGA1700, DDR4, PCIe 4.0, M.2, GbE LAN)

Optimize your Intel-based system with this GIGABYTE H610 micro ATX motherboard, designed for 14th, 13th, and 12th Gen Intel Core processors. With PCIe 4.0 support, NVMe PCIe Gen3 x4 M.2, GbE LAN, and Smart Fan 6, it delivers a solid foundation for responsive, reliable performance.

Key Features

• LGA1700 Socket Support
• Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors

• PCIe 4.0 design with Gen3 x4 M.2 support

• DDR4 Dual Channel Memory

• 2 x DDR4 DIMM slots

• Dual channel, Non-ECC Unbuffered DDR4 support

• High-Speed Storage

• NVMe PCIe 3.0 x4 M.2 connector

• SATA 6Gb/s connectivity

• GbE LAN with Bandwidth Management

• Realtek GbE LAN with integrated bandwidth management application

• Helps improve network latency and maintain low ping times for better responsiveness in crowded LAN environments

• Enhanced Power & Durability

• Solid pin ATX 12V 8-pin power connector for stable power delivery during CPU overloading
• Anti-sulfur resistors design

• Solid pin power connectors with:

  • Larger contact area for electricity
  • More metal quantity to sustain higher power and heat
  • Ultra-durable, longer lifespan

• Smart Cooling – Smart Fan 6

• Multiple temperature sensors

• Hybrid fan headers with FAN STOP functionality

• Premium Audio Design

• High-end audio capacitors for high-resolution, high-fidelity sound

• Audio Noise Guard to separate sensitive analog audio components from PCB-level noise

• User-Friendly BIOS & Software

• New GUI BIOS with easier-to-use functionalities
• GIGABYTE APP Center for simple, centralized access to utilities

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Expansion Slots

Storage Interface

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header
• For GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 128 Mbit flash
• Licensed AMI UEFI BIOS
• Supported standards: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center
• @BIOS
• EasyTune
• Smart Backup
• System Information Viewer
• Support for Q-Flash

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• Micro ATX
• Dimensions: 22.6 cm x 18.5 cm
