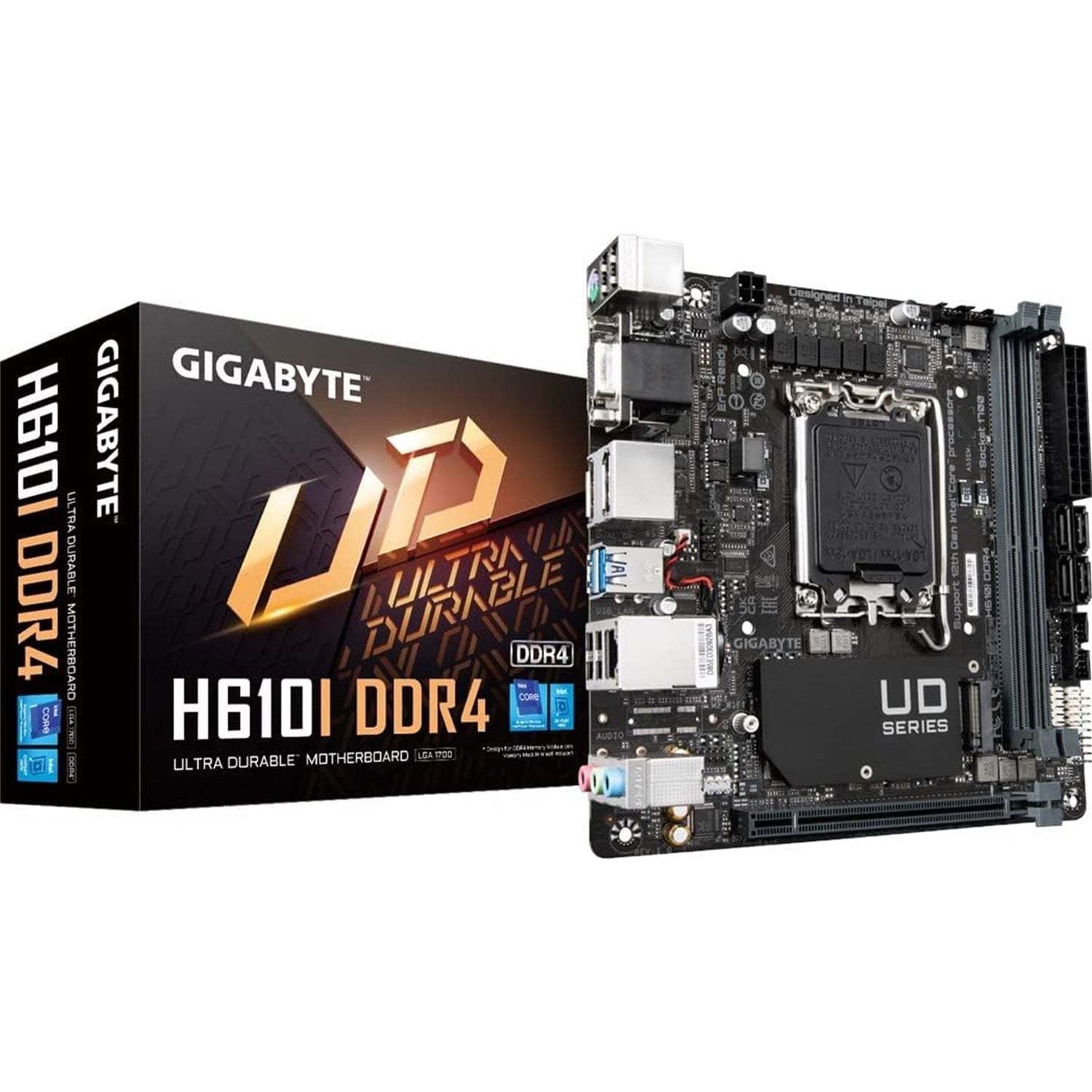

Gigabyte H610I DDR4 Ultra Durable Intel 1700 Socket Motherboard, Mini-ITX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

Intel H610 Mini-ITX Motherboard

Compact and feature-rich, this Intel H610 Mini-ITX motherboard delivers efficient power design, reliable connectivity, and essential tuning tools for modern Intel® platforms.

Key Features

• Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® Processors (LGA1700)
• 4+1+1 Hybrid Digital VRM Design with DrMOS
• Cleaner, more efficient power delivery
• Improved thermal performance for stability under high CPU frequencies and heavy loading
• Solid capacitors help improve transient response and minimize oscillation
• Solid Pin CPU power connector
• Dual Channel DDR4 Memory Support
• 2 x DIMM slots, up to 64 GB
• Intel® GbE LAN with cFosSpeed Internet Accelerator
• Network traffic management to help maintain low ping and better responsiveness in crowded LAN environments
• NVMe PCIe 3.0 x4 M.2
• Smart Fan 6 Cooling
• Multiple temperature sensors
• Hybrid fan headers with FAN STOP
• High Quality Audio
• High quality audio capacitors
• Audio Noise Guard
• GIGABYTE APP Center
• Simple and easy access to utilities and settings
• Anti-Sulfur Resistor Design
• Enhanced Solid Pin Power Connectors
• Larger contact area for electricity
• More metal to sustain higher power and heat
• Ultra durable, longer lifespan

Power Design

• 4+1+1 Phases Hybrid Power Design
• 4+1+1 Phases DrMOS
• Solid capacitors for stable power delivery
• Solid plated ATX 24-pin & ATX 12V 4-pin power connectors to help provide a stable power supply during CPU overloading

Optimized BIOS Experience

The redesigned BIOS interface offers a new GUI and more intuitive functionality, helping users access optimal settings easily during initial setup and configuration.

Specifications

CPU

*Refer to CPU specifications for detailed compatibility.

Chipset

Memory

Onboard Graphics

(Integrated graphics support depends on CPU)

Audio

LAN

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
• 2 x serial port headers
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x D-Sub port
• 2 x DisplayPorts
• 1 x HDMI 2.0 port
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash
• Licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center
• @BIOS
• EasyTune
• Ambient LED
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor
