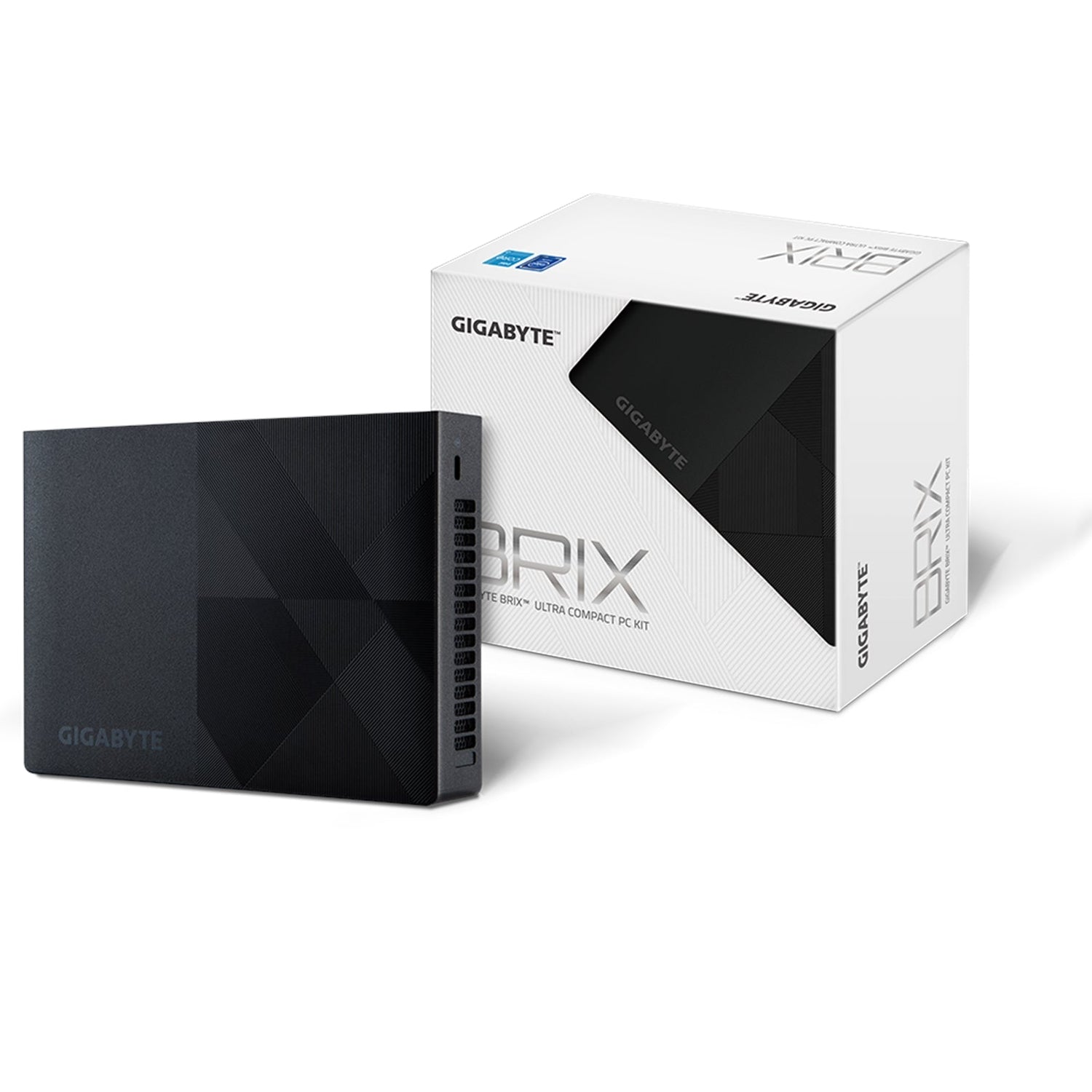

Gigabyte BRIX (GB-BNI3-N305) Barebone Kit, Intel i3 N305 3.0GHz 8 Core CPU, 1 x DDR4 3200 SO-DIMM Slot, 2 x M.2 2280 Slots, Wi-Fi 6 & Bluetooth 5.2

Intel Core i3-N305 BRIX Mini PC

Power through everyday tasks with the Intel Core i3 N-Series platform, designed to deliver the performance you need at an affordable price. Built on the latest Intel 7 process with the new “Gracemont” CPU microarchitecture, this BRIX system offers responsive computing for browsing, learning, streaming, and productivity—anywhere.

Key Performance Highlights

• Intel Core i3-N305 Processor
• 8 Efficient Cores (E-cores) / 8 Threads
• 3.0 GHz base frequency, up to 3.8 GHz turbo
• 6 MB L3 cache
• “Gracemont” E-core architecture on Intel 7 process
• Generational Performance Boost
• More powerful than the prior generation
• Intel 7 nm manufacturing process and efficient-core design for higher performance and improved power efficiency
• Generational performance improvements of 30% or more (overall)

With enhanced processing power and efficiency, users can enjoy faster browsing and improved productivity to accomplish more.

Advanced Intel Platform Features

• Intel Wi-Fi 6 (802.11ax) with Intel AX101 wireless card (2.4 & 5 GHz)
• Next-gen Intel UHD Graphics 1250
• Enhanced Image Processing Unit (IPU 6)

These technologies help balance performance and value, making this BRIX system a strong choice for essential computing, learning, streaming, and everyday tasks.

Storage & Expansion

• Dual M.2 SSD Support
• 2 x M.2 2280 slots for SSD
  • 1 x PCIe x2 or SATA
  • 1 x PCIe x2

• Install two M.2 SSDs for faster boot times, quicker application loading, and expanded storage capacity for media, files, and documents.

• Additional Expansion

• 1 x M.2 2230 slot (PCIe x1, A-E key — occupied by the Wi-Fi + Bluetooth card)

Connectivity & I/O

Front I/O

• 1 x Power Button
• 1 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen2 Type-C
• 1 x Headphone / Microphone combo jack

Rear I/O

• 2 x HDMI 2.1
• 1 x DisplayPort 1.4
• 1 x 2.5 GbE RJ45 (Realtek RTL8125)
• 3 x USB 2.0 Type-A
• 1 x USB 3.2 Gen2 Type-A
• 1 x DC-In
• 1 x Kensington lock slot

High-Speed USB Type-C

• USB Type-C Connector
• Reversible design for easy plug-in
• Supports USB 3.2 Gen2
• Data transfer speeds up to 10 Gb/s

Display & Audio

• HDMI 2.1

• Supports up to 4K@60P HDR10

• Mini DisplayPort 1.4

• Supports up to 4K@60P HBR2

• Graphics

• Intel UHD Graphics 1250

• Audio

• Realtek ALC897 HD Audio

Specifications

VESA Mounting

• VESA support for 75 x 75 mm and 100 x 100 mm mounting patterns
• VESA bracket must be purchased separately

This Intel Core i3-N305 BRIX system delivers a strong balance of performance, efficiency, connectivity, and compact design, ideal for users seeking affordable, capable, and space-saving computing.
