Gigabyte B850M Eagle WIFI6E ICE AMD AM5 Socket Motherboard, Micro ATX, 4x DDR5 Slots, 3x M.2 Sockets, Wi-Fi 6E, 2x DisplayPort / 1x HDMI Port

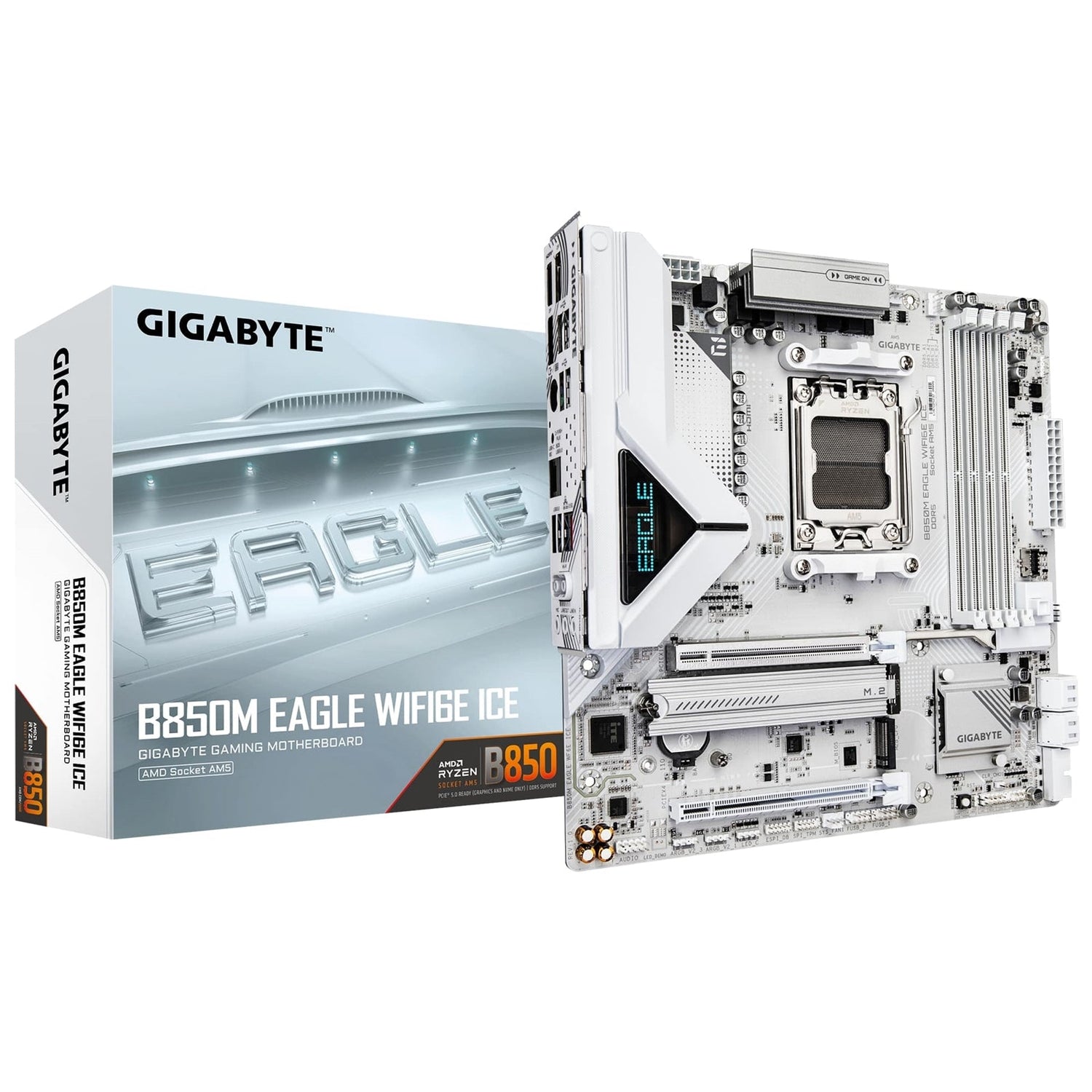

GIGABYTE B850M EAGLE WIFI 6E (Ice) – X3D Turbo Mode Gaming Motherboard

Unleash a new era of gaming performance with the GIGABYTE B850M EAGLE WIFI 6E. Designed for AMD Ryzen 9000, 8000, and 7000 Series processors, this Micro ATX motherboard combines one-click acceleration, advanced DDR5 support, efficient thermals, and cutting-edge connectivity in a robust, DIY-friendly platform.

X3D Turbo Mode – One-Click Gaming Acceleration

Maximize gaming performance with GIGABYTE’s BIOS innovation:

• X3D Turbo Mode: Unique optimization parameters enhance Ryzen 9000 X3D gaming performance and allow Ryzen 9000 non‑X3D processors to reach similar gaming performance levels as their X3D counterparts.
• One-Click Activation: Enhance gaming FPS performance with a single click.
• Experience smoother gameplay, higher frame rates, and reduced latency with easy, BIOS-level optimization.

Performance & Power

• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
• DDR5 OC up to 8200 MT/s: Infinite memory performance with boosted DDR5 compatibility.
• Dual Channel DDR5: 4 DIMM slots with AMD EXPO memory module support.
• Digital Twin 8+2+2 Phases VRM Solution: Steady power delivery to keep demanding workloads and AI operations smooth.

Advanced Cooling & DIY-Friendly Design

• Comprehensive Thermal Design:
• Advanced full-metal thermal design
• Durable heatsinks for efficient heat dissipation
• VRM Thermal Armor Advanced

• M.2 Thermal Guard

• Hassle-Free Assembly:

• EZ-Latch Plus: PCIe and M.2 slots with quick-release, screwless design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Designed for a smooth, enjoyable DIY PC building experience

All-Round Connectivity & Networking

• Ultra-Fast Storage:
• 2 x M.2 slots, including PCIe 5.0 x4 support
• 4 x SATA 6Gb/s connectors
• RAID 0/1/5/10 for NVMe SSDs (RAID 5 on Ryzen 9000 only)

• RAID 0/1/10 for SATA storage devices

• Fast Networking:

• Realtek 2.5 GbE LAN
• Wi-Fi 6E with directional ultra-high gain antenna
• Realtek Wi-Fi 6E RTL8852CE with 2.4/5/6 GHz support

• Bluetooth 5.3

• Extended Display & I/O:

• HDMI and 2 x DisplayPort outputs for up to triple-display support
• Multiple USB 3.2 Gen 2 / Gen 1 / USB 2.0 ports
• Rear USB Type‑C and front USB Type‑C header (USB 3.2 Gen 2)

Built to Last – Born from Ultra Durable

The EAGLE and GAMING series motherboards embody GIGABYTE’s Ultra Durable technology:

• Platform engineered for longevity and reliability
• Designed to endure and excel for gamers
• BIOS improvements driven by collaboration with the user community, democratizing next-level computing power

Key Features

• X3D Turbo Mode: unleash new era gaming performance
• DDR5 OC support up to 8200 MT/s
• AMD Socket AM5 support for Ryzen 9000 / 8000 / 7000 Series
• Digital twin 8+2+2 phases VRM solution
• Dual Channel DDR5: 4 x DIMMs with AMD EXPO support
• WIFI EZ-Plug for quick, easy Wi‑Fi antenna installation
• EZ-Latch Plus & EZ-Latch Click screwless PCIe/M.2 handling
• Ultra-Fast Storage: 2 x M.2 including PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5 GbE LAN & Wi‑Fi 6E
• Extended Connectivity: HDMI, 2 x DisplayPort
• PCIe UD Slot: SMD PCIe 5.0 armor for enhanced graphics card support

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage Interfaces

USB

Internal I/O Connectors

• 1 x 24‑pin ATX main power connector
• 1 x 8‑pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan / water cooling pump header
• 1 x system fan header
• 1 x system fan / water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type‑C header (USB 3.2 Gen 2)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC‑TPM2.0 SPI modules)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x HDMI port*
• 2 x DisplayPorts*
• 1 x Q‑Flash Plus button
• 1 x PS/2 keyboard/mouse port
• 1 x USB 3.2 Gen 2 Type‑A (red)
• 1 x USB 3.2 Gen 2 Type‑C
• 2 x USB 3.2 Gen 1
• 4 x USB 2.0/1.1
• 1 x RJ‑45 LAN port
• 2 x antenna connectors (2T2R)
• 3 x audio jacks

*Actual support may vary by CPU.

I/O Controller & Monitoring

BIOS

Unique Features

• Support for GIGABYTE Control Center (GCC)*
• Support for Q‑Flash
• Support for Q‑Flash Plus
• Support for Smart Backup

*Available GCC applications and functions vary by motherboard model and specifications.

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64‑bit
• Windows 10 64‑bit

Form Factor

The GIGABYTE B850M EAGLE WIFI 6E (Ice) delivers powerful AMD AM5 performance, advanced DDR5 and PCIe 5.0 support, efficient cooling, next‑gen networking, and a DIY‑friendly design—making it a compelling foundation for modern gaming and high-performance PCs.
