Gigabyte B760M H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x HDMI Port
$131.00

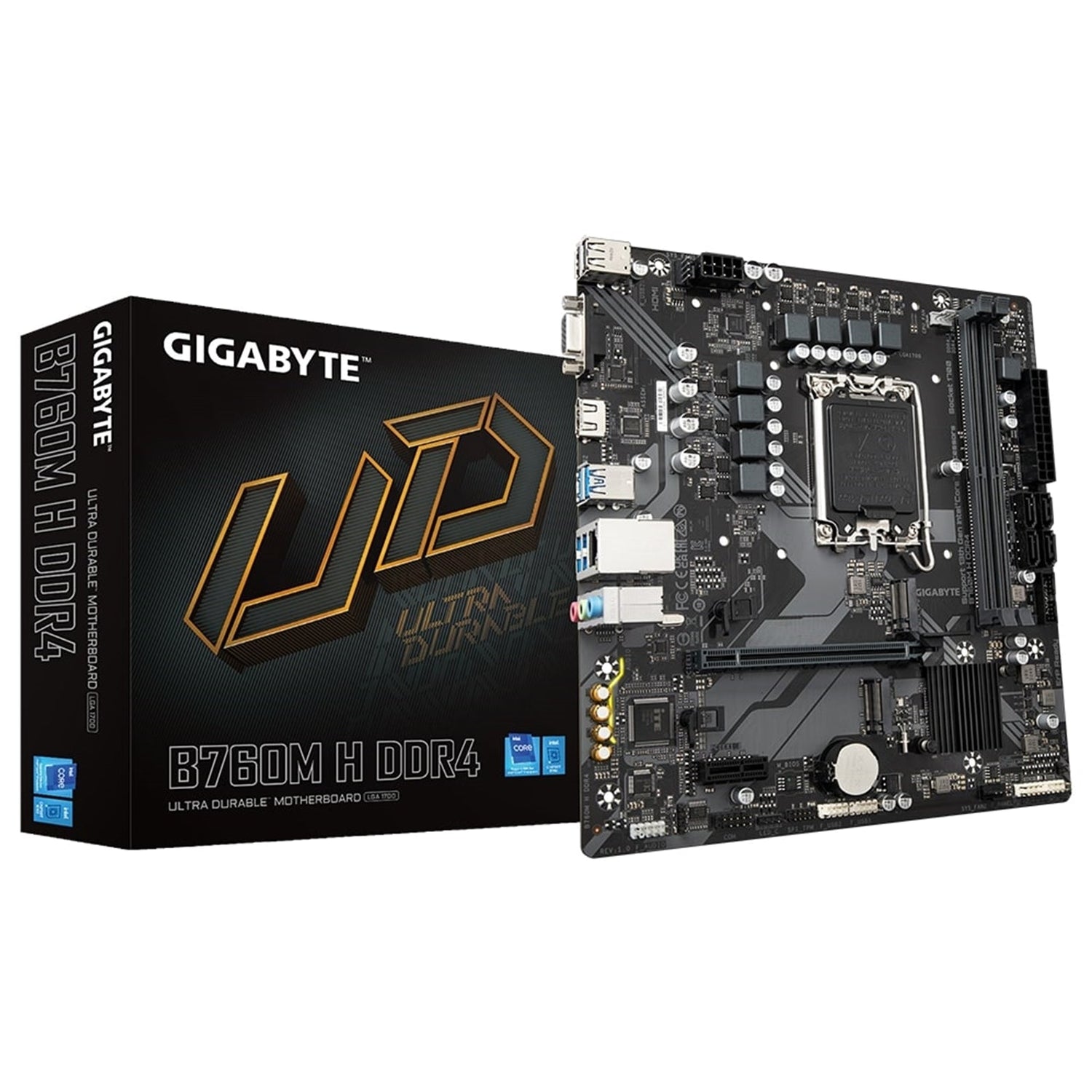

GIGABYTE B760M H DDR4 (rev. 1.0) Micro ATX Motherboard
The GIGABYTE B760M H DDR4 (rev. 1.0) is designed for Intel 14th, 13th, and 12th Gen processors, delivering a balanced platform with strong performance, efficient power design, and versatile connectivity for modern PCs.
Key Features
- CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, and Celeron processors (LGA1700)
- Power Design: Hybrid 6+1+1 phases digital VRM solution
- Memory: Dual-channel DDR4, 2 x DIMMs with XMP support (up to 5333 MHz and beyond)
- Storage: 2 x PCIe 4.0 x4 M.2 connectors
- Graphics Slots: PCIe 4.0 x16 slot with EZ-Latch quick release design
- Networking: Realtek GbE LAN
- Display Outputs: HDMI and D-Sub
- Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
- Form Factor: Micro ATX (23.0cm x 21.5cm)
Performance & Power Design
6+1+1 Phases Hybrid Digital VRM
- 6+1+1 phases hybrid digital VRM design
- Low RDS(on) MOSFETs
- Premium chokes and capacitors to improve transient response and minimize oscillation
PCIe 4.0 Ready
- PCIe 4.0 design ready for PCIe 4.0 devices
- Low-impedance PCB to help maintain high-speed signal integrity
DDR4 XMP Support
- Support for XMP memory profiles up to 5333 MHz and beyond
- Tested platform to help ensure proper compatibility with XMP-capable DDR4 modules
- Simple XMP enablement through the GIGABYTE motherboard BIOS
GIGABYTE PerfDrive
- Integrated BIOS technology to help balance performance, power consumption, and temperature when using 13th Gen Intel Core processors
Advanced Cooling: Smart Fan 6
Smart Fan 6 offers extensive cooling control to help keep systems cool and quiet:
- High Current Support
- Each fan header supports PWM/DC fans and water cooling pumps
-
Up to 24W (12V x 2A) per header with over-current protection
-
Precision Control
-
Multiple temperature and fan speed control points for accurate fan curves
-
Dual Curve Mode
-
Slope and Stair modes to match different usage scenarios
-
Fan Stop
- Fans can stop completely below user-specified temperature thresholds
Connectivity & User Experience
Storage & Network
- Dual PCIe 4.0 x4 M.2 connectors for next-generation storage
- 4 x SATA 6Gb/s connectors with RAID 0, 1, 5, and 10 support
- Realtek GbE LAN (1 Gbps / 100 Mbps)
BIOS & Interface
- EASY MODE: Key hardware information on a single page (CPU clock, memory, storage, fans)
- My Favorites: Custom menu for frequently used settings
- Storage Information: Detailed overview of SATA, PCIe, and M.2 devices
- Changelog: Lists all changes before saving and exiting BIOS
- Intuitive Load Line Curve: Graphical view of loadline calibration settings
PCIe EZ-Latch
- Quick-release PCIe slot latch for easier graphics card removal
Specifications
CPU
| Feature | Details |
|---|---|
| Socket | LGA1700 |
| Supported CPUs | 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors |
| L3 Cache | Varies by CPU |
| Chipset | Intel B760 Express Chipset |
Memory
| Feature | Details |
|---|---|
| Memory Support | DDR4 3200/3000/2933/2666/2400/2133 MT/s |
| DIMM Slots | 2 x DDR4 DIMM sockets |
| Maximum Capacity | Up to 64 GB (32 GB per DIMM) |
| Architecture | Dual-channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP | Support for Extreme Memory Profile (XMP) modules |
Onboard Graphics
| Output | Max Resolution |
|---|---|
| D-Sub | 1920x1200 @ 60 Hz |
| HDMI | 4096x2160 @ 60 Hz |
(Intel HD Graphics support depends on CPU)
Audio
| Feature | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel |
| Digital Out | Support for S/PDIF Out |
LAN
| Feature | Details |
|---|---|
| Controller | Realtek GbE LAN chip |
| Speed | 1 Gbps / 100 Mbps |
Expansion Slots
| Source | Slot | Standard | Mode |
|---|---|---|---|
| CPU | 1 x PCI Express x16 | PCIe 4.0 | x16 |
| Chipset | 1 x PCI Express x1 | PCIe 3.0 | x1 |
Storage Interfaces
| Source | Connector | Type | Interface |
|---|---|---|---|
| CPU | 1 x M.2 (M2A_CPU) | Socket 3, M key, type 2280 | PCIe 4.0 x4/x2 |
| Chipset | 1 x M.2 (M2P_SB) | Socket 3, M key, type 2280 | PCIe 4.0 x4/x2 |
| Chipset | 4 x SATA | SATA 6Gb/s | RAID 0/1/5/10 support |
USB
| Source | Ports | Specification |
|---|---|---|
| Chipset | 6 x USB 3.2 Gen 1 | 4 rear, 2 via internal header |
| Chipset | 6 x USB 2.0/1.1 | 2 rear, 4 via internal headers |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 modules only)
- 1 x serial port header
- 1 x Clear CMOS jumper
Back Panel Connectors
- 2 x USB 2.0/1.1 ports
- 1 x D-Sub port
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller & Monitoring
- iTE I/O controller chip
- Voltage, temperature, and fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 128 Mbit flash
- AMI UEFI BIOS (licensed)
- Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- Micro ATX
- Dimensions: 23.0cm x 21.5cm
