Gigabyte B760 GAMING X WIFI6E GEN5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 1x Display Port
$212.00

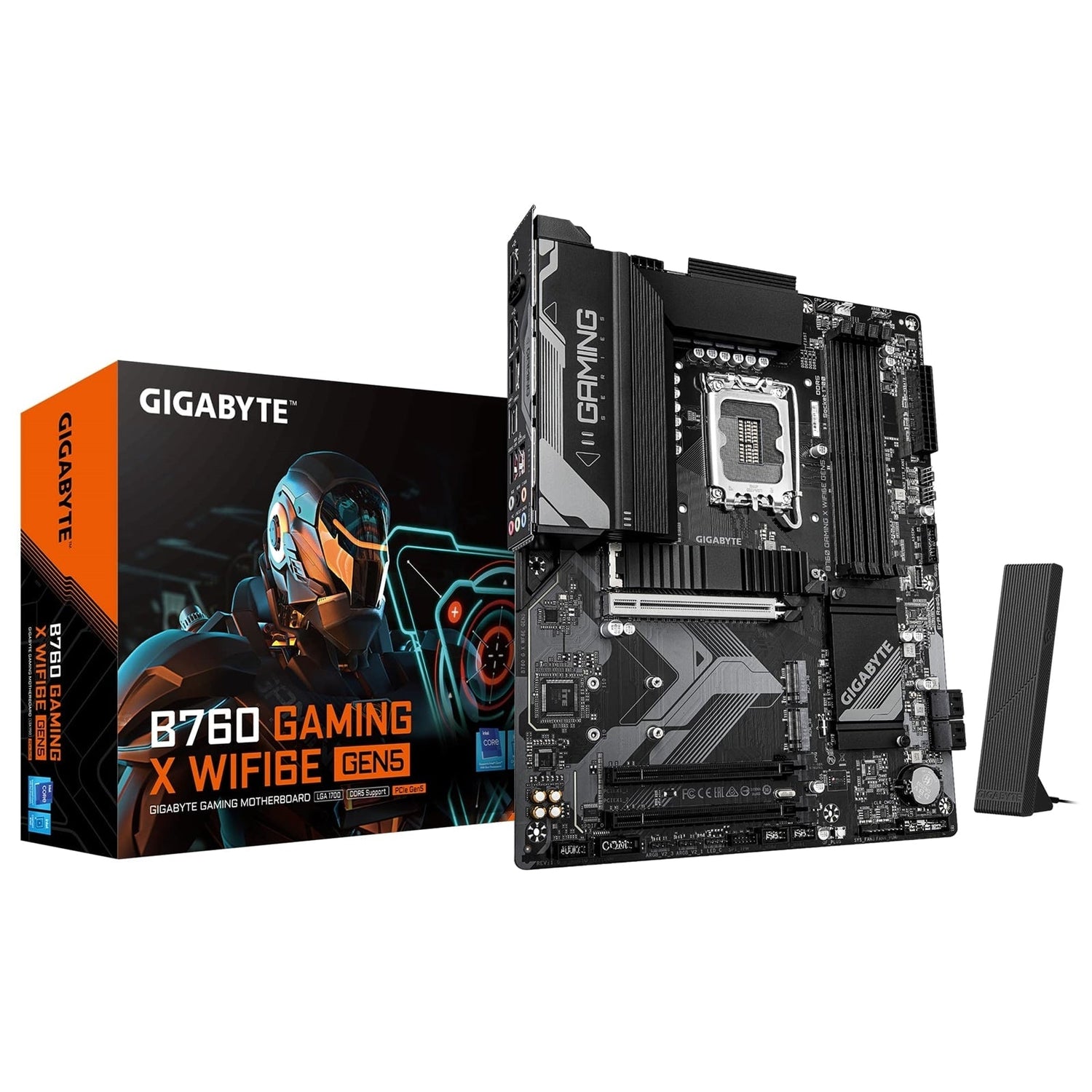

GIGABYTE B760 GAMING X WIFI6E GEN5 ATX Motherboard
The GIGABYTE B760 GAMING X WIFI6E GEN5 motherboard delivers PCIe Gen5 performance, efficient cooling, and versatile connectivity for Intel 14th, 13th, and 12th Gen processors. Designed for durability, DIY-friendly assembly, and customizable aesthetics, it provides a powerful and reliable foundation for modern gaming and high-performance PCs.
PCIe Gen5 Performance
-
Express to PCIe 5.0 Performance
Enjoy boosted performance of PCIe Gen5 on the existing platform. -
Double Bandwidth vs PCIe 4.0
PCIe 5.0 increases data transfer rate from 16 GT/s to 32 GT/s per lane, delivering significantly higher bandwidth for demanding components.
Advanced Thermal Design
-
Fully Covered Thermal Design
High coverage MOSFET and integrated molding heatsinks enhance thermal efficiency. -
Improved Airflow & Heat Exchange
Optimized layout for better cooling performance to help maintain stability under load.
Built for DIY and Durability
-
Hassle-free Assembly
Engineered to simplify the building process for an ultimate DIY experience. -
Born from Ultra Durable Technology
Designed for longevity, reliability, and consistent performance. -
Optimal Power Delivery
Supports maximum Turbo Boost and overclocking performance.
Customization & Software
-
Personalized Aesthetics
Customizable lighting effects to match your unique style. -
Intuitive Control
Bundled GIGABYTE software helps manage motherboard settings and lighting with ease.
Key Features
- PCIe Gen5 Performance: Perfect Sync to Win
- CPU Support: Intel Core 14th / 13th / 12th Generation processors
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Wi-Fi EZ-Plug: Quick and easy Wi-Fi antenna installation
- Wi-Fi Compass: Auto-detects best antenna position for strongest Wi-Fi signal
- EZ-Latch: PCIe 5.0 x16 slot with quick-release design
- PCIe UD Slot: SMD PCIe 5.0 armor for enhanced graphics card support
- Power Design: Hybrid 8+1+1 phases VRM solution
- Memory: Dual Channel DDR5, 4 x DIMM with XMP support
- Networking: 2.5GbE LAN & Wi-Fi 6E (802.11ax)
- Connectivity: Front USB-C 10 Gb/s, DisplayPort, HDMI
- Storage: 3 x PCIe 4.0 x4 M.2 connectors
- Cooling Control: Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
- Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card
Specifications
CPU
| Item | Details |
|---|---|
| Socket | LGA1700 |
| Supported CPUs | 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors |
| Notes | CPU support list available on GIGABYTE’s website |
| L3 Cache | Varies with CPU |
Chipset
| Item | Details |
|---|---|
| Chipset | Intel B760 Express Chipset |
Memory
| Item | Details |
|---|---|
| Supported CPUs (Memory) | 14th & 13th Gen Intel Core i9/i7: DDR5 5600/5200/4800/4400 MT/s; 13th Gen Core i5/i3 & 12th Gen Core/Pentium Gold/Celeron: DDR5 4800/4400 MT/s |
| Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP | Support for Extreme Memory Profile (XMP) memory modules |
| Notes | Supported types, speeds, and module count depend on CPU and configuration; see GIGABYTE’s Memory Support List |
Onboard Graphics
| Item | Details |
|---|---|
| Integrated Graphics | Intel HD Graphics (CPU-dependent) |
| DisplayPort | 1 x DP, max 4096x2304 @ 60 Hz |
| HDMI | 1 x HDMI, max 4096x2160 @ 60 Hz |
| Notes | Graphics specifications may vary depending on CPU support |
Audio
| Item | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio Channels | High Definition Audio; 2/4/5.1/7.1-channel |
| Digital Output | Support for S/PDIF Out |
LAN
| Item | Details |
|---|---|
| Controller | Realtek 2.5GbE LAN chip |
| Speeds | 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication
| Item | Details |
|---|---|
| Module | Intel Wi-Fi 6E AX210 |
| Wi-Fi Standards | a/b/g/n/ac/ax |
| Frequency Bands | 2.4 / 5 / 6 GHz |
| Bluetooth | Bluetooth 5.3 |
| Standard | Supports 11ax 160 MHz wireless |
| Notes | Actual data rate may vary by environment and equipment |
Expansion Slots
| Source | Slots | Details |
|---|---|---|
| CPU | 1 x PCI Express x16 | PCIe 5.0, runs at x16 (PCIEX16). Supports a graphics card or an NVMe SSD only. If only one graphics card is installed, use PCIEX16. |
| Chipset | 2 x PCI Express x16 | PCIe 3.0, running at x1 (PCIEX1_1, PCIEX1_2) |
Storage Interface
| Source | Connectors | Details |
|---|---|---|
| CPU | 1 x M.2 | Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support (M2A_CPU) |
| Chipset | 2 x M.2 | Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support (M2P_SB, M2M_SB) |
| Chipset | 4 x SATA | SATA 6 Gb/s connectors |
| RAID | RAID 0, 1, 5, 10 support for SATA storage devices |
USB
| Source | Ports | Details |
|---|---|---|
| Chipset | 1 x USB Type-C (internal) | USB 3.2 Gen 2, via internal header |
| Chipset | 1 x USB 3.2 Gen 2 Type-A | Rear panel (red) |
| Chipset | 1 x USB Type-C | Rear panel, USB 3.2 Gen 1 support |
| Chipset | 3 x USB 3.2 Gen 1 | 1 rear, 2 via internal header |
| Chipset | 1 x USB 2.0/1.1 | Rear panel |
| Chipset + 2 USB 2.0 Hubs | 8 x USB 2.0/1.1 | 4 rear, 4 via internal headers |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6 Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C header (USB 3.2 Gen 2 support)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 only)
- 1 x serial port header
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 1 x USB Type-C port (USB 3.2 Gen 1 support)
- 1 x USB 3.2 Gen 1 port
- 5 x USB 2.0/1.1 ports
- 2 x antenna connectors (2T2R)
- 1 x DisplayPort*
- 1 x HDMI port*
- 1 x RJ-45 LAN port
- 6 x audio jacks
*Actual support may vary by CPU.
I/O Controller
- iTE I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS (licensed)
- Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- ATX Form Factor
- Dimensions: 30.5 cm x 24.4 cm
