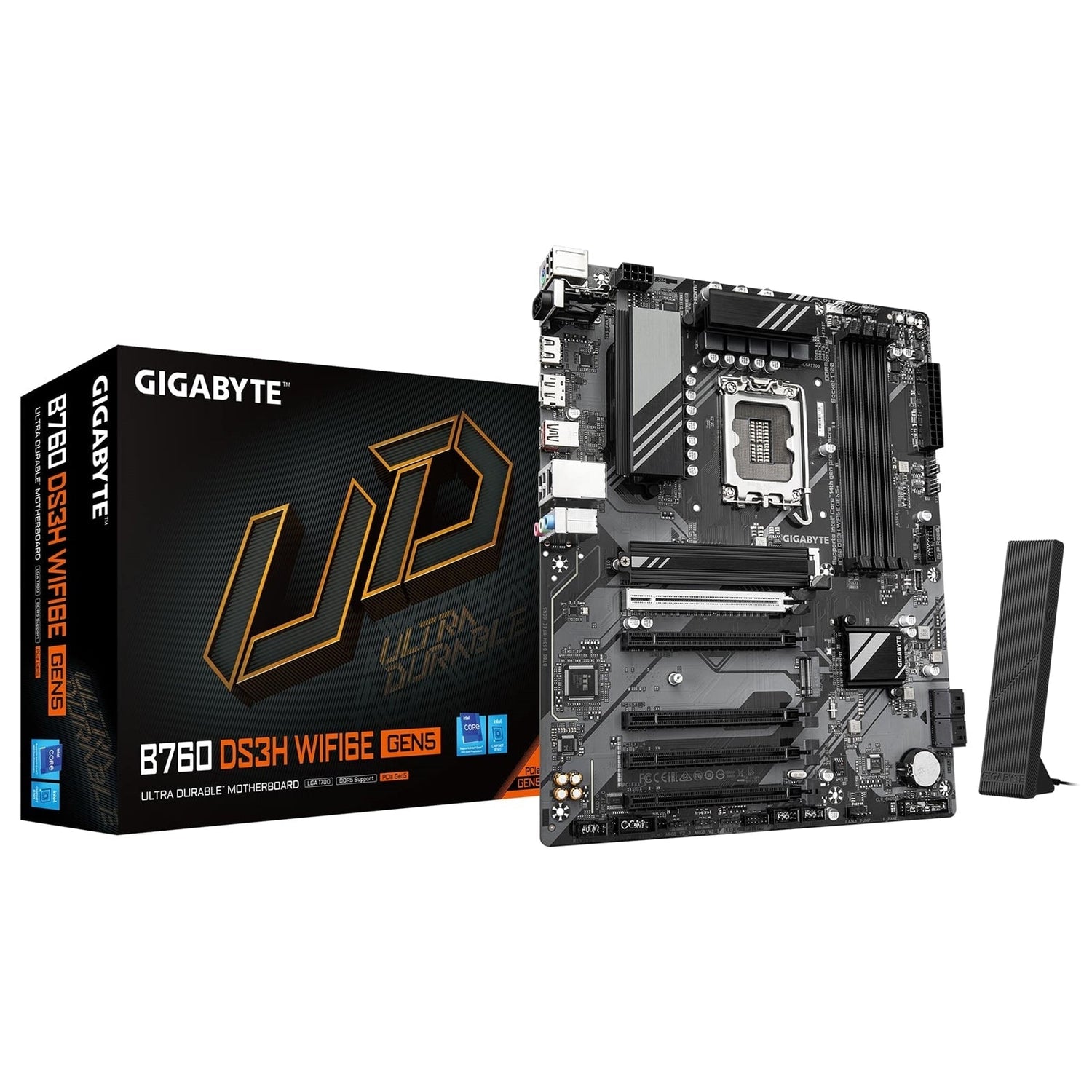

Gigabyte B760 DS3H WIFI6E GEN5 Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 2x M.2 Sockets, GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

GIGABYTE B760 DS3H WIFI 6E (PCIe Gen5)

The GIGABYTE B760 DS3H WIFI 6E motherboard delivers PCIe Gen5 performance, robust power design, and modern connectivity on the Intel LGA1700 platform.

PCIe Gen5 Performance

Enjoy next-generation PCIe 5.0 performance on a proven platform:

• PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane
• Designed to benefit demanding devices that require faster data movement

Durable, Future-Ready Design

Durable Performance

• GIGABYTE Ultra Durable design built with optimal components inside and out
• Aims to deliver prime performance and a stable, long-lasting platform

Future Connectivity

• High-speed data transfer through next-generation network and storage interfaces

Easy & User-Friendly

• Innovative, intuitive hardware, software, and BIOS interface design
• Helps you build and customize your own personal style

Key Features

• PCIe Gen5 Performance: Optimized for winning performance
• CPU Support: Intel Core 14th / 13th / 12th Generation processors
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• WIFI Compass: Automatically detects the best antenna position for the strongest Wi-Fi signal
• EZ-Latch: PCIe 5.0 x16 slot with quick release design
• PCIe UD Slot: SMD PCIe 5.0 armor for enhanced graphics card support
• Power Design: Hybrid 8+2+1 phases VRM solution
• Memory: Dual channel DDR5, 4 × DIMM slots with XMP support
• Networking: GbE LAN & Wi-Fi 802.11ax
• Storage: 2 × PCIe 4.0 x4 M.2 connectors
• Connectivity: Rear USB-C® 20 Gb/s, DisplayPort, HDMI
• Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
• BIOS Update: Q-Flash Plus – update BIOS without installing CPU, memory, or graphics card

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage Interface

USB

Internal I/O Connectors

• 1 × 24-pin ATX main power connector
• 1 × 8-pin ATX 12V power connector
• 1 × CPU fan header
• 1 × CPU fan/water cooling pump header
• 3 × system fan headers
• 1 × system fan/water cooling pump header
• 3 × addressable RGB Gen2 LED strip headers
• 1 × RGB LED strip header
• 2 × M.2 Socket 3 connectors
• 4 × SATA 6 Gb/s connectors
• 1 × front panel header
• 1 × front panel audio header
• 1 × S/PDIF Out header
• 1 × USB Type-C header (USB 3.2 Gen 1 support)
• 1 × USB 3.2 Gen 1 header
• 2 × USB 2.0/1.1 headers
• 1 × Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 modules only)
• 1 × serial port header
• 1 × Q-Flash Plus button
• 1 × reset button
• 1 × reset jumper
• 1 × Clear CMOS jumper

Back Panel Connectors

• 1 × PS/2 keyboard/mouse port
• 2 × antenna connectors (2T2R)
• 1 × USB Type-C port (USB 3.2 Gen 2x2)
• 1 × USB 3.2 Gen 2 Type-A port (red)
• 4 × USB 2.0/1.1 ports
• 1 × HDMI port (Note: actual support may vary by CPU)
• 1 × DisplayPort (Note: actual support may vary by CPU)
• 1 × RJ-45 port
• 3 × audio jacks

I/O Controller

• iTE I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 × 128 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• ATX Form Factor
• Dimensions: 30.5 cm × 24.4 cm
