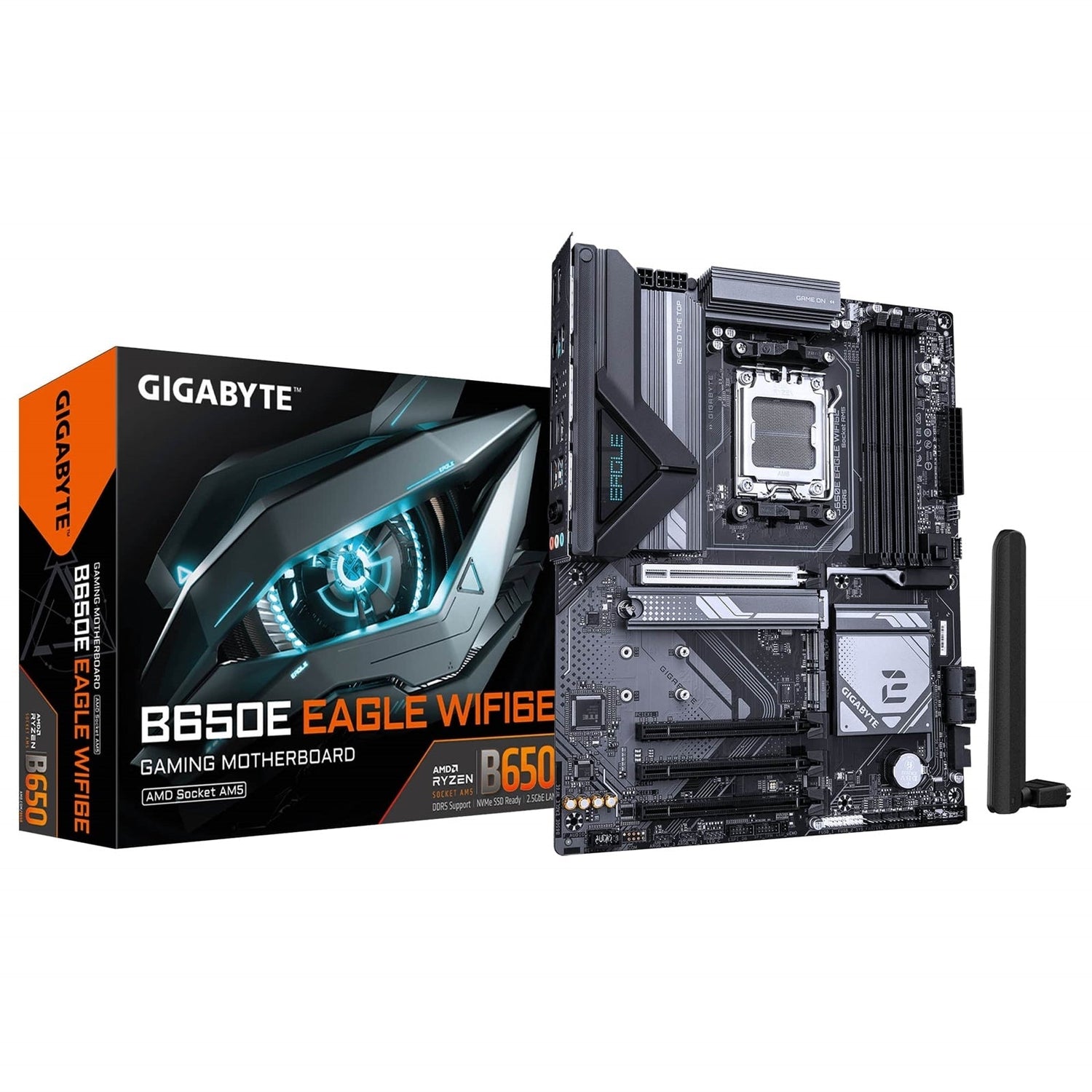

Gigabyte B650E EAGLE WIFI6E AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

GIGABYTE B650E EAGLE WIFI 6E Motherboard

AMD Socket AM5 | DDR5 | PCIe 5.0 | Wi-Fi 6E

Key Features

• AMD Socket AM5 Support

• Compatible with AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series processors

• Unparalleled Performance

• 8+2+2 phases digital VRM solution

• High-Speed DDR5 Memory

• Dual channel DDR5
• 4 × SMD DIMM slots

• Supports AMD EXPO™ and Intel® XMP memory modules

• SuperSpeed Storage

• 1 × PCIe 5.0 M.2 connector

• 2 × PCIe 4.0 M.2 connectors

• Advanced Thermal Design

• M.2 Thermal Guard to help maintain VRM power stability and 22110 M.2 SSD performance

• EZ-Latch Plus

• PCIe x16 slots with quick-release, screwless design

• Fast Networking

• Wi-Fi 6E 802.11ax

• GbE LAN

• WIFI EZ-Plug

• Quick and easy Wi-Fi antenna installation

• Extended Connectivity

• DisplayPort, HDMI

• Rear USB® 10 Gb/s

• Smart Fan 6

• Multiple temperature sensors

• Hybrid fan headers with FAN STOP

• Q-Flash Plus

• Update BIOS without installing CPU, memory, or graphics card

Specifications

CPU

Chipset

Memory

BIOS

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support (depending on CPU):

• DisplayPort
• 1 × DisplayPort
• Max resolution: 3840×2160 @ 144 Hz

• Supports DisplayPort 1.4 and HDR

• HDMI

• 1 × HDMI port
• Max resolution: 4096×2160 @ 60 Hz
• Supports HDMI 2.1, HDCP 2.3, and HDR
• Supports native HDMI 2.1 TMDS compatible ports

Graphics specifications may vary depending on CPU support.

Audio

* Audio jack functionality can be changed using the audio software. To configure 7.1-channel audio, use the audio software settings.

LAN

Wireless LAN

Expansion Slots

CPU:

• 1 × PCI Express x16 slot (PCIEX16)
• AMD Ryzen™ 9000 / 7000 Series: PCIe 5.0 x16 mode
• AMD Ryzen™ 8000 Series – Phoenix 1: PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series – Phoenix 2: PCIe 4.0 x4 mode
• The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is installed, it must be in the PCIEX16 slot.

Chipset:

• 1 × PCI Express x16 slot (PCIEX4), PCIe 4.0, running at x4
• 2 × PCI Express x16 slots (PCIEX1_1, PCIEX1_2), PCIe 3.0, running at x1
• PCIEX1_1 and PCIEX1_2 share bandwidth with SATA3 0 and SATA3 1. SATA3 0/1 become unavailable when a device is installed in PCIEX1_1 or PCIEX1_2.

Storage

• M.2 Connectors

• M2A_CPU (integrated in CPU)

  • Socket 3, M key, type 22110/2280 SSDs
  • AMD Ryzen™ 9000 / 7000: PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series – Phoenix 1: PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series – Phoenix 2: PCIe 4.0 x4/x2 SSDs

• M2B_CPU (integrated in CPU)

  • Socket 3, M key, type 22110/2280 SSDs
  • AMD Ryzen™ 9000 / 7000: PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series – Phoenix 1: PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series – Phoenix 2: PCIe 4.0 x2 SSDs

• M2C_SB (integrated in chipset)

  • Socket 3, M key, type 22110/2280 SSDs
  • PCIe 4.0 x2 SSDs

• SATA

• 4 × SATA 6 Gb/s connectors

RAID

USB

From CPU:

• 1 × USB Type-C® port on rear panel (USB 3.2 Gen 1)
• 2 × USB 3.2 Gen 2 Type-A ports (red) on rear panel

From Chipset:

• 1 × USB Type-C® port with USB 3.2 Gen 1 support (via internal header)
• 4 × USB 3.2 Gen 1 ports
• 2 × rear panel
• 2 × via internal header
• 4 × USB 2.0/1.1 ports on rear panel

Chipset + USB 2.0 Hub:

• 4 × USB 2.0/1.1 ports via internal headers

Internal Connectors

• 1 × 24-pin ATX main power connector
• 1 × 8-pin ATX 12V power connector
• 1 × 4-pin ATX 12V power connector
• 1 × CPU fan header
• 1 × CPU fan / water cooling pump header
• 3 × system fan headers
• 1 × system fan / water cooling pump header
• 3 × addressable RGB Gen2 LED strip headers
• 1 × RGB LED strip header
• 3 × M.2 Socket 3 connectors
• 4 × SATA 6 Gb/s connectors
• 1 × front panel header
• 1 × front panel audio header
• 1 × USB Type-C® header (USB 3.2 Gen 1)
• 1 × USB 3.2 Gen 1 header
• 2 × USB 2.0/1.1 headers
• 1 × Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
• 1 × reset button
• 1 × reset jumper
• 1 × Clear CMOS jumper

Rear Panel I/O

• 1 × DisplayPort
• 1 × HDMI port
• 1 × Q-Flash Plus button
• 4 × USB 2.0/1.1 ports
• 1 × PS/2 keyboard/mouse port
• 2 × USB 3.2 Gen 2 Type-A ports (red)
• 1 × USB Type-C® port (USB 3.2 Gen 1)
• 1 × RJ-45 LAN port
• 2 × USB 3.2 Gen 1 ports
• 2 × antenna connectors (1T1R)
• 3 × audio jacks

Form Factor

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit
