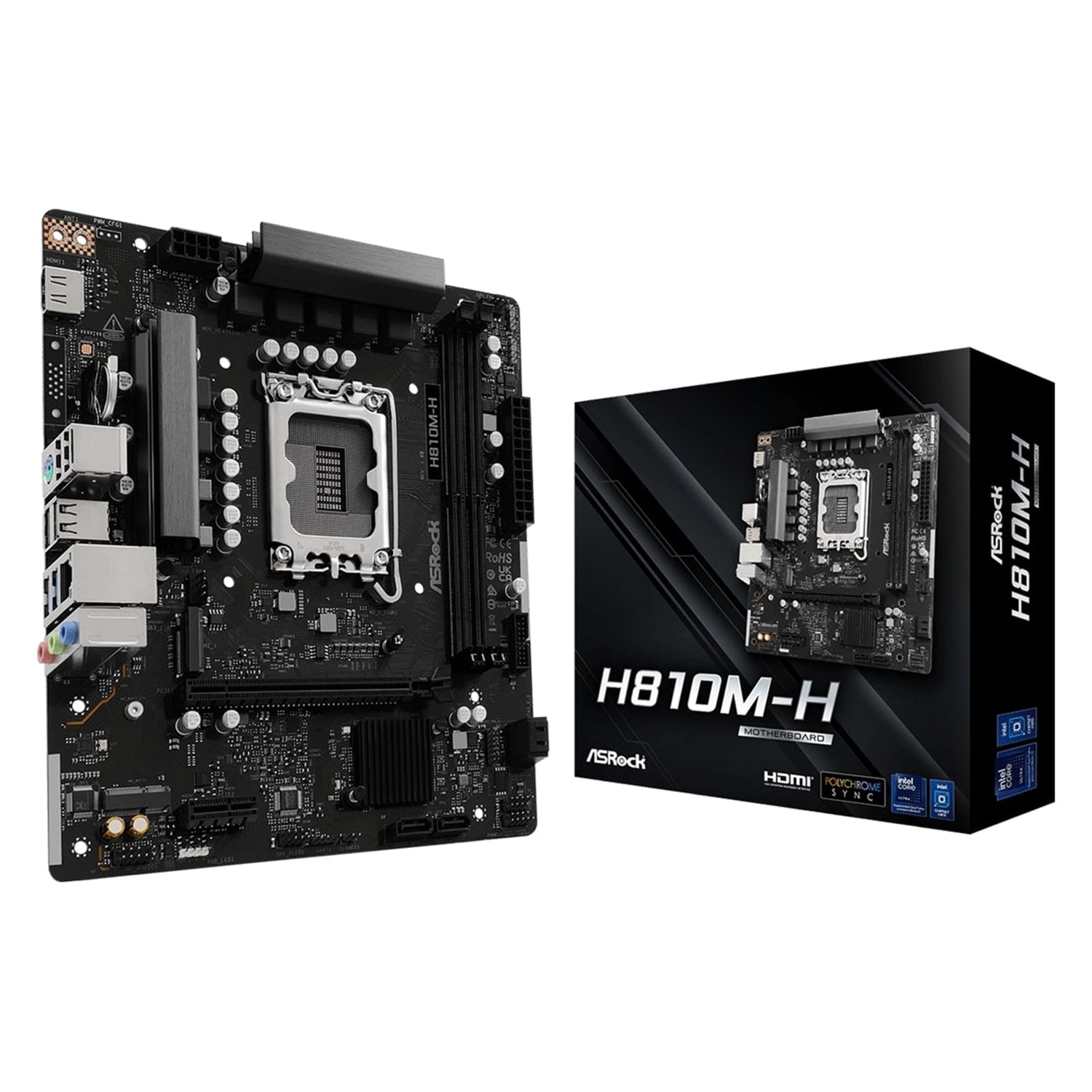

ASRock H810M-H Intel 1850 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Sockets, GbE LAN, 1x HDMI Port

ASRock H810 Micro ATX Motherboard (LGA1851, DDR5, PCIe 4.0)

A compact, feature-rich Micro ATX motherboard designed for the latest Intel Core Ultra Processors (Series 2) on the LGA1851 socket, with fast DDR5 memory support, PCIe 4.0 expansion, advanced storage, and customizable RGB lighting.

Key Features

• CPU Support
• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• Supports Intel Hybrid Technology
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel Thermal Velocity Boost (TVB)
• Supports Intel Adaptive Boost Technology (ABT)

• Integrated NPU for dedicated AI acceleration

• Power Design & Durability

• 6+1+1+1+1 Power Phase

• Rock-solid durability

• Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM slots
• Supports DDR5 non-ECC, un-buffered memory up to 6400
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Max system memory capacity: 128 GB
• Supports Intel Extreme Memory Profile (XMP) 3.0

• ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology

• Graphics & Display

• Intel Xe LPG Graphics Architecture (processor-dependent)
• 1 x HDMI 2.1 TMDS/FRL 8G compatible
• Supports HDR, HDCP 2.3

• Maximum resolution up to 4K 120Hz

• Storage

• 1 x Hyper M.2 (Key M, type 2280) PCIe Gen4x4 (64 Gb/s)
• 4 x SATA3 6.0 Gb/s connectors
• High Speed M.2 solution

• Supports PCI Express 4.0 M.2 SSDs

• Expansion Slots

• 1 x PCIe 4.0 x16 slot (CPU, x16 mode)
• 1 x PCIe 4.0 x1 slot (chipset)

• 1 x M.2 (Key E) socket for type 2230 WiFi/BT PCIe WiFi module
  Wi-Fi module not included

• Audio & Networking

• Realtek ALC897 7.1 CH HD Audio Codec

• Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H)

• USB Connectivity

• 4 x USB 3.2 Gen1 Type-A (2 rear, 2 front)

• 6 x USB 2.0 (4 rear, 2 front)

• Cooling & Design

• Intelligent Cooling Design
• Optimized aluminum heatsink for efficient heat dissipation
• 1 x CPU Fan connector (4-pin, Smart Fan Speed Control)

• 1 x Chassis Fan connector (4-pin, Smart Fan Speed Control)

• RGB Lighting

• POLYCHROME RGB
• 1 x RGB LED header
• 2 x Addressable LED headers

• Supports connection to compatible LED strips, CPU fans, coolers, chassis, and Polychrome RGB Sync-certified accessories

• Unique Features

• Superb productivity
• Dual Channel DDR5
• EZ Update
• ASRock Auto Driver Installer

Specifications

Chipset

BIOS

Slots & Storage

Audio & LAN

Internal Connectors

Rear Panel I/O

Software & UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)

• ASRock Polychrome SYNC

• UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Accessories

• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

Form Factor & OS Support

• Form Factor: Micro ATX, 8.66" x 7.6" (22.0 cm x 19.3 cm)
• Operating System: Microsoft Windows 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
