ASRock B760M PRO RS Intel 1700 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 3x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port

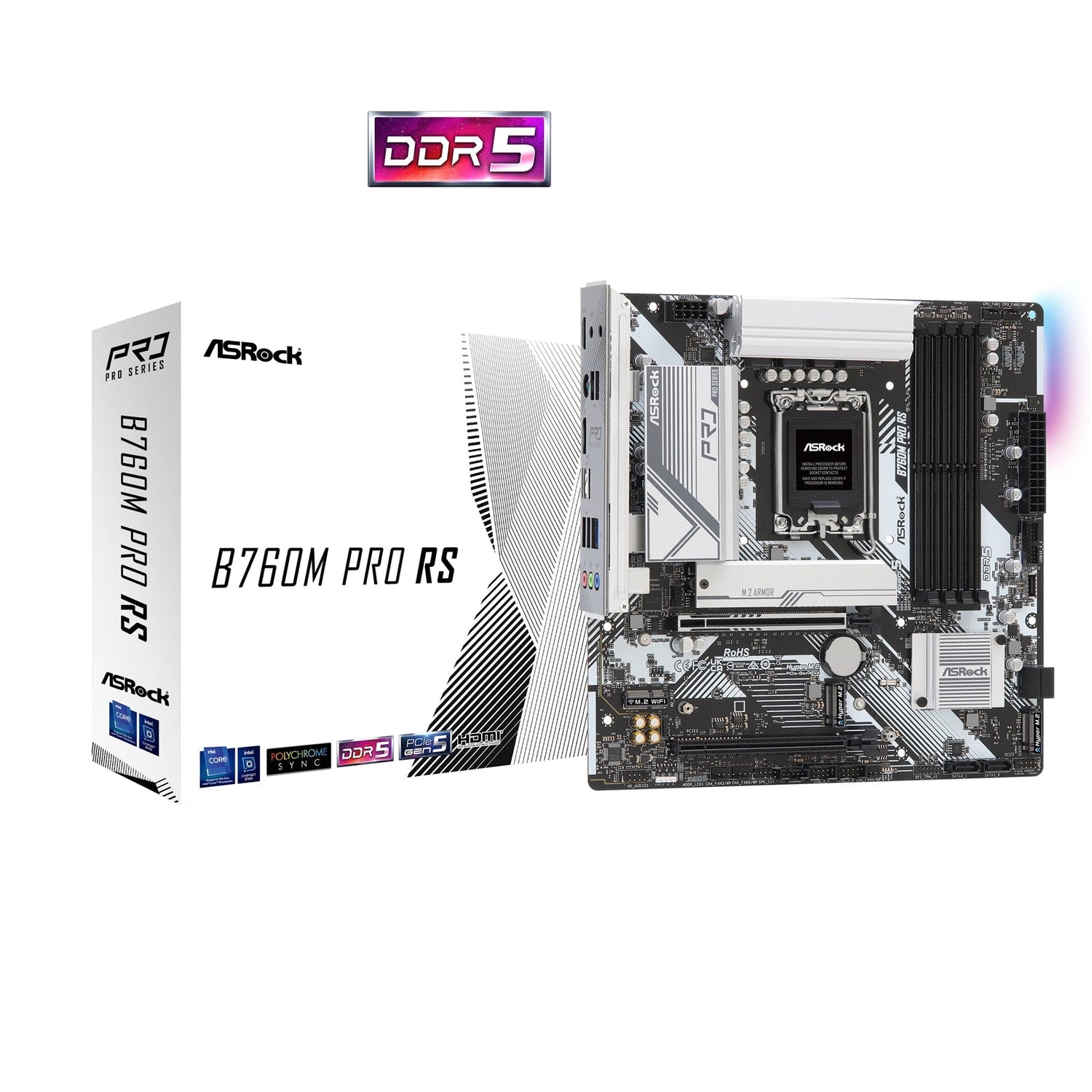

ASRock B760M Pro RS Micro ATX Motherboard

The ASRock B760M Pro RS is a micro ATX motherboard designed for 14th, 13th, and 12th Gen Intel® Core™ processors, delivering superb productivity, rock-solid durability, and ultrafast connectivity in a compact form factor.

Key Features

Superb Productivity

• PCIe Gen5 support for graphics
• Dual Channel DDR5 memory support

Rock-Solid Durability

• 7+1+1 Power Phase design
• 50A Dr.MOS for VCore+GT
• Pre-installed I/O shield

Ultrafast Connectivity

• 2.5G LAN
• EZ Update with ASRock Auto Driver Installer

EZ Troubleshooter

• ASRock Post Status Checker

CPU & Chipset

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
• Chipset: Intel® B760

Memory

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM slots
• Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
• Maximum system memory capacity: 256GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible
• Supports HDCP 2.3
• Max resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed)
• Supports HDCP 2.3
• Max resolution up to 8K 60Hz / 5K 120Hz

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

Networking

LAN

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG

Dragon 2.5G LAN Software: - Smart auto adjust bandwidth control
- Visual user-friendly UI
- Visual network usage statistics
- Optimized default settings for Game, Browser, and Streaming modes
- User customized priority control

Wireless LAN

• N/A

Expansion Slots

CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

• Supports AMD CrossFire™

Storage

CPU: - 1 x Hyper M.2 Socket (M2_1, Key M)
- Supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M)
- Supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M)
- Supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s connectors

RAID

• Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB Connectivity

• 2 x USB 3.2 Gen1 Type-C (1 rear, 1 front)
• 5 x USB 3.2 Gen1 Type-A (3 rear, 2 front)
• 6 x USB 2.0 (2 rear, 4 front)

Internal Connectors & Headers

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin)
• Supports ASRock Thunderbolt™ 4 AIC Card
• 2 x USB 2.0 Headers (support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type-C USB 3.2 Gen1 Header

* Supports in total up to 12V/3A, 36W LED Strip
* Supports in total up to 5V/3A, 15W LED Strip
* CPU_FAN1 supports fan power up to 1A (12W)
* CPU_FAN2/WP supports fan power up to 2A (24W)
*** CHA_FAN1~4/WP support fan power up to 2A (24W)

CPU_FAN2/WP and CHA_FAN1~4/WP can auto-detect if a 3-pin or 4-pin fan is in use.

Rear Panel I/O

• 2 x Antenna mounting points
• 1 x PS/2 mouse/keyboard port
• 1 x HDMI port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C port
• 3 x USB 3.2 Gen1 Type-A ports
• 2 x USB 2.0 ports
• 1 x RJ-45 LAN port
• HD audio jacks: Line in / Front speaker / Microphone

Software & UEFI

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer

Accessories

• 1 x User Manual
• 2 x SATA Data Cables
• 4 x Screws for M.2 Sockets
• 1 x Standoff for M.2 Socket

Form Factor

• Micro ATX Form Factor
• Dimensions: 9.6 in x 9.6 in (24.4 cm x 24.4 cm)

Operating System Support

• Microsoft Windows® 10 64-bit
• Microsoft Windows® 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
