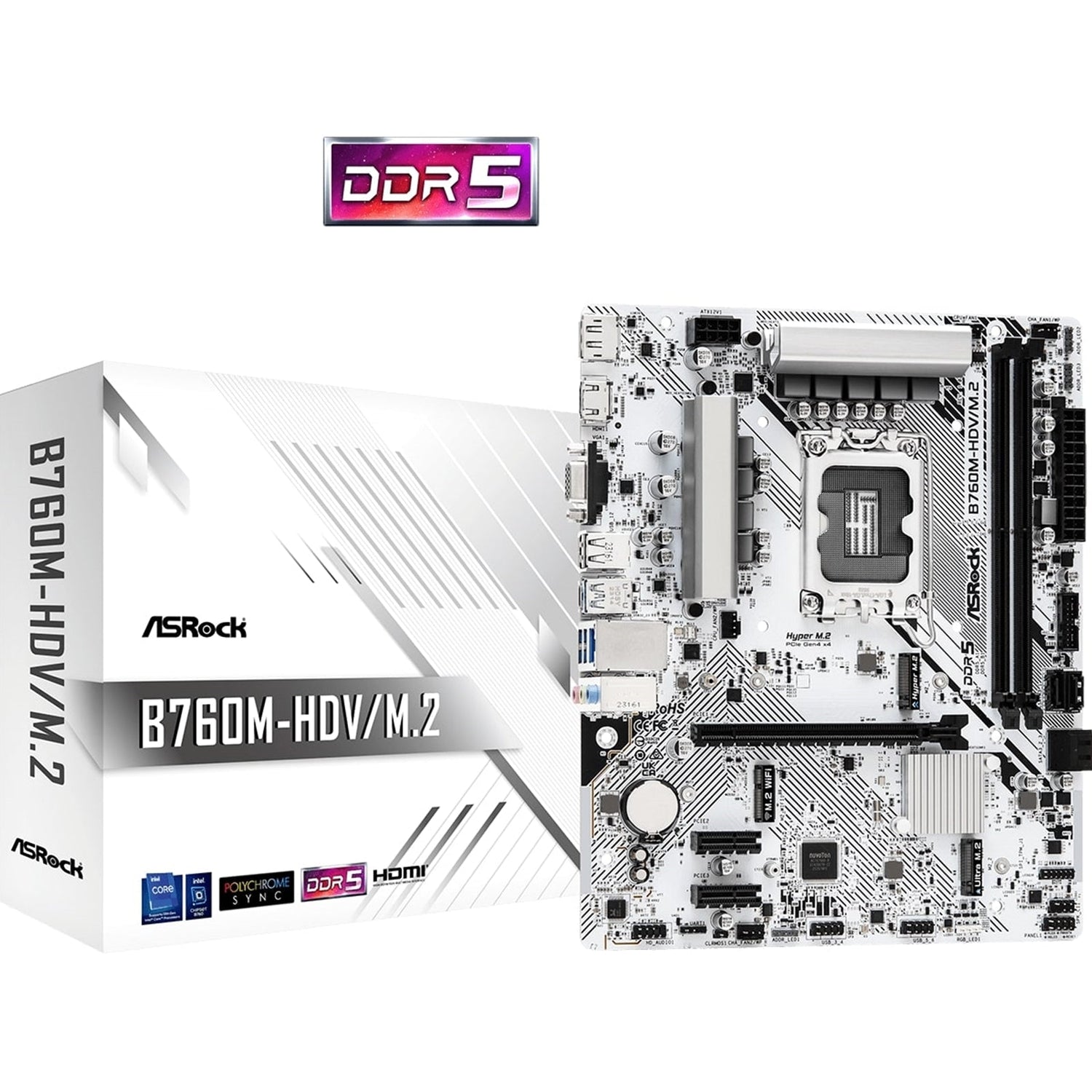

ASRock B760M-HDV/M.2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port
$145.00
ASRock B760 Micro ATX Motherboard – DDR5, 13th & 12th Gen Intel, 2.5G LAN
Key Features
- CPU Support
- Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
- Supports Intel Thermal Velocity Boost (TVB)
-
Supports Intel Adaptive Boost Technology (ABT)
-
Power Design
- 7+1+1 Power Phase Design
-
Sturdy components with smooth power delivery for enhanced CPU performance
-
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+ MHz (OC)
- Max system memory capacity: 96GB
- Intel XMP 3.0 & AMD EXPO support
- 1DPC 1R: Up to 7200+ MHz (OC), 5600 MHz native
- 1DPC 2R: Up to 6800+ MHz (OC), 5200 MHz native
-
Built for stable and reliable DDR5 overclocking with pre-tested profiles
-
Graphics & Display Outputs
- Intel Xe Graphics Architecture (Gen 12) support
- 1 x HDMI 2.1 TMDS Compatible (HDCP 2.3, up to 4K 60Hz)
- 1 x DisplayPort 1.4 with DSC (HDCP 2.3, up to 8K 60Hz / 5K 120Hz)
- 1 x D-Sub (up to Full HD 1920x1080 60Hz)
- Intel UHD Graphics Built-in Visuals (outputs supported only with processors that include integrated GPU)
-
Triple graphics output: D-Sub + DisplayPort + HDMI
-
Storage
- 1 x Hyper M.2 (M2_1, Key M): type 2260/2280, PCIe Gen4 x4 (64 Gb/s)
- 1 x Ultra M.2 (M2_2, Key M): type 2280, PCIe Gen3 x4 (32 Gb/s)
- 4 x SATA3 6.0 Gb/s connectors
- Supports Intel Volume Management Device (VMD)
- Supports NVMe SSDs as boot disks
- RAID 0, 1, 5, 10 support for SATA devices
-
High-speed M.2 solution (PCIe Gen4 x4) for lightning-fast data transfer
-
Expansion Slots
- 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode (from CPU)
- 2 x PCIe 3.0 x1 slots (PCIE2, PCIE3) from chipset
- 1 x M.2 Socket (Key E), type 2230, for PCIe WiFi/BT module (Wi-Fi module not included)
-
Supports NVMe SSD as boot disks
-
Audio
- 7.1 CH HD Audio
-
Realtek ALC897 Audio Codec
-
Networking
- Dragon 2.5 Gigabit LAN (10/100/1000/2500 Mb/s)
- Dragon RTL8125BG
- Dragon 2.5G LAN software:
- Smart Auto Adjust Bandwidth Control
- Visual user-friendly UI
- Visual network usage statistics
- Optimized default settings for Game, Browser, and Streaming modes
- User customized priority control
-
Boosts networking performance up to 2.5X compared to standard Gigabit Ethernet
-
USB Connectivity
- Rear:
- 1 x USB 3.2 Gen1 Type-C
- 3 x USB 3.2 Gen1 Type-A
- 2 x USB 2.0
- Internal:
- 1 x USB 3.2 Gen1 header (supports 2 x USB 3.2 Gen1 ports)
- 2 x USB 2.0 headers (supports 4 x USB 2.0 ports)
- All USB ports with ESD Protection
-
USB 3.2 Gen1 Type-C supports up to 5 Gbps data transfer and reversible connector design
-
Lighting & RGB
- Polychrome RGB support
- 1 x RGB LED header
- 3 x Addressable LED headers
- Supports up to:
- 12V/3A, 36W LED strip total
- 5V/3A, 15W LED strip total
-
Sync compatible LED strips, CPU fans, coolers, chassis, and Polychrome RGB Sync-certified accessories
-
Cooling & Power Connectors
- 1 x CPU Fan connector (4-pin), up to 1A (12W)
- 1 x CPU/Water Pump fan connector (4-pin, Smart Fan Speed Control), up to 2A (24W)
- 2 x Chassis/Water Pump fan connectors (4-pin, Smart Fan Speed Control), each up to 2A (24W)
- CPU_FAN2/WP and CHA_FAN1~2/WP auto-detect 3-pin or 4-pin fans
- 1 x 24-pin ATX power connector
-
1 x 8-pin 12V power connector
-
Productivity & Reliability Highlights
- Superb productivity
- Dual Channel DDR5
- Rock-solid durability
- 7+1+1 Power Phase
-
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
-
EZ Setup: ASRock Auto Driver Installer
- LAN driver pre-installed for easy driver setup
- Steps:
- Step 1: Install Auto Driver Installer
- Step 2: Update drivers needed
- Step 3: Done!
Detailed Specifications
CPU
| Feature | Description |
|---|---|
| Socket | LGA1700 |
| Supported CPUs | 13th Gen & 12th Gen Intel Core Processors |
| Technologies | Intel Hybrid Technology, Intel Turbo Boost Max 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT) |
Chipset
| Feature | Description |
|---|---|
| Chipset | Intel B760 |
Memory
| Feature | Description |
|---|---|
| Type | Dual Channel DDR5 Memory Technology |
| Slots | 2 x DDR5 DIMM |
| Capacity | Up to 96GB |
| Supported Memory | DDR5 non-ECC, un-buffered |
| Overclocking | Up to 7200+ MHz (OC) |
| XMP/EXPO | Supports Intel Extreme Memory Profile (XMP) 3.0 and AMD EXPO |
| 1DPC 1R | Up to 7200+ MHz (OC), 5600 MHz native |
| 1DPC 2R | Up to 6800+ MHz (OC), 5200 MHz native |
BIOS
| Feature | Description |
|---|---|
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
Graphics
| Feature | Description |
|---|---|
| Architecture | Intel Xe Graphics Architecture (Gen 12) |
| HDMI | 1 x HDMI 2.1 TMDS Compatible, HDCP 2.3, up to 4K 60Hz |
| DisplayPort | 1 x DisplayPort 1.4 with DSC, HDCP 2.3, up to 8K 60Hz / 5K 120Hz |
| D-Sub | 1 x D-Sub, up to 1920x1080 60Hz |
| Note | VGA outputs supported only with processors with integrated GPU |
Audio
| Feature | Description |
|---|---|
| Codec | Realtek ALC897 |
| Channels | 7.1 CH HD Audio |
LAN
| Feature | Description |
|---|---|
| Controller | Dragon RTL8125BG |
| Speed | 10/100/1000/2500 Mb/s (2.5G LAN) |
| Software | Dragon 2.5G LAN Software with Smart Auto Adjust Bandwidth, visual statistics, and mode presets |
Expansion Slots
| Slot | Description |
|---|---|
| PCIe x16 | 1 x PCIe 4.0 x16 (PCIE1), x16 mode (CPU) |
| PCIe x1 | 2 x PCIe 3.0 x1 (PCIE2, PCIE3) |
| M.2 Key E | 1 x M.2 Socket (Key E), type 2230 PCIe WiFi/BT module (Wi-Fi module not included) |
Storage
| Feature | Description |
|---|---|
| Hyper M.2 | 1 x M.2 (M2_1, Key M), type 2260/2280, PCIe Gen4 x4 (64 Gb/s) |
| Ultra M.2 | 1 x M.2 (M2_2, Key M), type 2280, PCIe Gen3 x4 (32 Gb/s) |
| SATA | 4 x SATA3 6.0 Gb/s connectors |
| VMD | Supports Intel Volume Management Device (VMD) |
| Boot Support | Supports NVMe SSDs as boot disks |
| RAID | RAID 0, 1, 5, 10 for SATA storage devices |
USB
| Location | Ports |
|---|---|
| Rear | 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| Internal Headers | 1 x USB 3.2 Gen1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Protection | All USB ports support ESD Protection |
Internal Connectors
| Connector | Description |
|---|---|
| TPM | 1 x SPI TPM header |
| Intrusion/Speaker | 1 x chassis intrusion and speaker header |
| RGB | 1 x RGB LED header |
| ARGB | 3 x Addressable LED headers |
| Fans | 1 x CPU Fan (4-pin), 1 x CPU/Water Pump Fan (4-pin), 2 x Chassis/Water Pump Fans (4-pin) |
| Power | 1 x 24-pin ATX, 1 x 8-pin 12V |
| Audio | 1 x front panel audio connector |
| USB | 2 x USB 2.0 headers, 1 x USB 3.2 Gen1 header |
Rear Panel I/O
| Port | Description |
|---|---|
| Antenna | 2 x antenna mounting points |
| Video | 1 x D-Sub, 1 x HDMI, 1 x DisplayPort 1.4 |
| USB | 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| LAN | 1 x RJ-45 (2.5G LAN) |
| Audio | HD Audio jacks: Line In / Front Speaker / Microphone |
Software & UEFI
| Category | Items |
|---|---|
| Software | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| UEFI | ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer |
Accessories
| Item | Included |
|---|---|
| User Manual | 1 |
| I/O Shield | 1 |
| SATA Data Cables | 2 |
| Screws for M.2 Sockets | 3 |
Form Factor
| Feature | Description |
|---|---|
| Type | Micro ATX |
| Dimensions | 9.6 in x 7.9 in (24.4 cm x 20.1 cm) |
Operating System
| Feature | Description |
|---|---|
| Supported OS | Microsoft Windows 10 64-bit / Windows 11 64-bit |
Certifications
| Feature | Description |
|---|---|
| Compliance | FCC, CE |
| Power Saving | ErP/EuP ready (ErP/EuP ready power supply required) |
