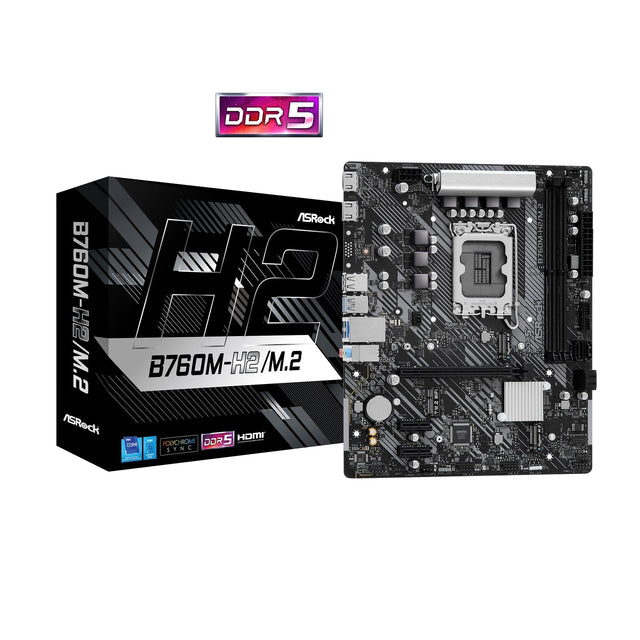

ASRock B760M-H2/M.2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, 2x HDMI Port

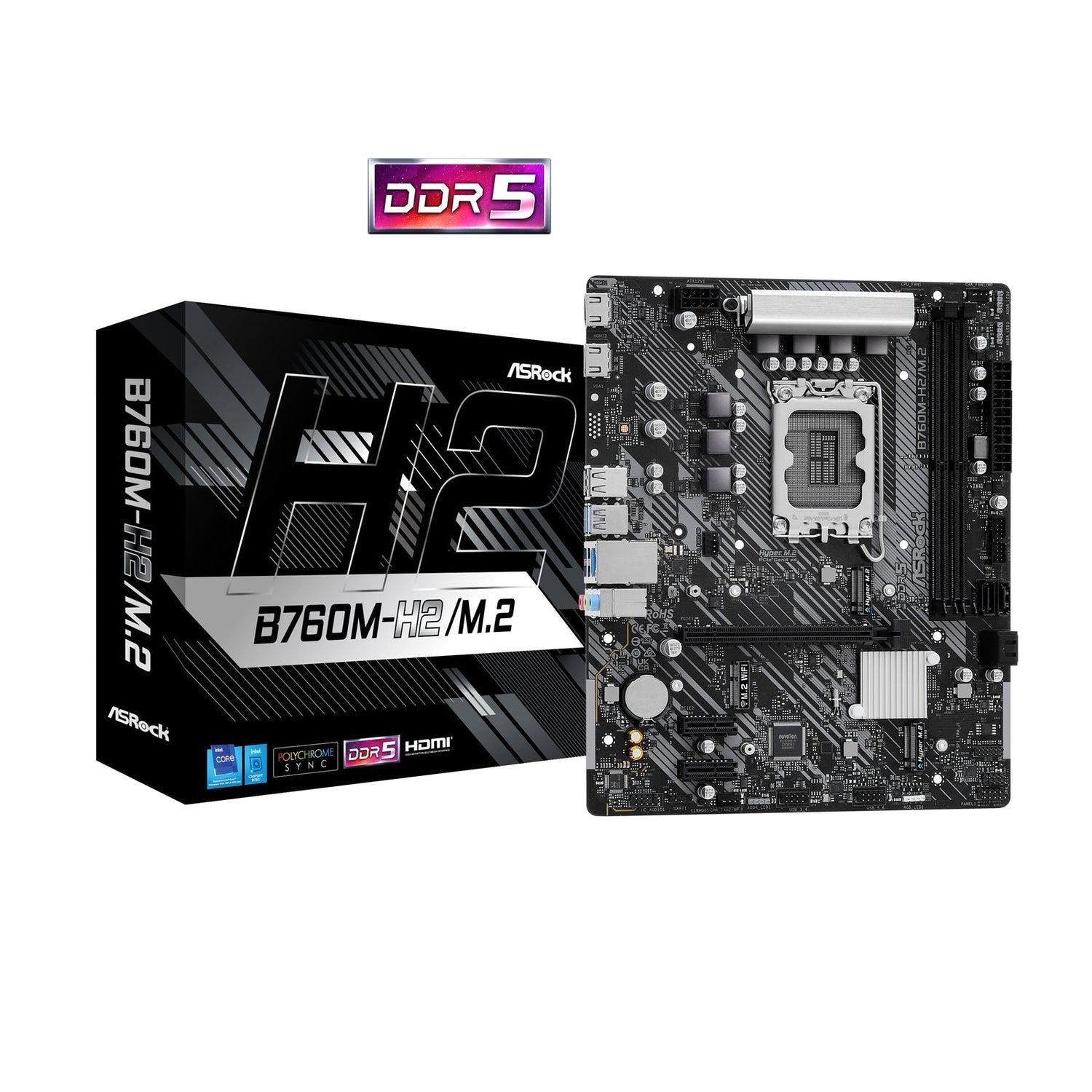

ASRock B760M-H2/M.2 Micro ATX Motherboard

The ASRock B760M-H2/M.2 is a Micro ATX Intel® B760 motherboard designed for 14th, 13th, and 12th Gen Intel® Core™ processors, offering dual-channel DDR5 support, fast connectivity, and a robust power design for reliable everyday performance.

Key Features

Superb Productivity

• Dual Channel DDR5 memory support

Rock-Solid Durability

• 5+1+1 Power Phase design
• ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology

Ultrafast Connectivity

• 2.5G LAN for high-speed networking

EZ Update

• ASRock Auto Driver Installer for convenient driver setup

CPU Support

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

Chipset

• Intel® B760

Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
• Maximum system memory capacity: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Intel® Xe Graphics Architecture (Gen 12)
• 2 x HDMI 2.1 TMDS Compatible ports
• Supports HDCP 2.3
• Maximum resolution up to 4K 60Hz

Audio

• 7.1 CH HD Audio
• Realtek ALC897 Audio Codec

LAN

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG controller

Dragon 2.5G LAN Software

• Smart Auto Adjust Bandwidth Control
• Visual user-friendly UI
• Visual network usage statistics
• Optimized default settings for Game, Browser, and Streaming modes
• User customized priority control

Wireless LAN

• N/A

Expansion Slots

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage

Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports: - Type 2260/2280
- PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports: - Type 2280
- PCIe Gen4x4 (64 Gb/s) modes
- 4 x SATA3 6.0 Gb/s Connectors

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB Connectivity

• 6 x USB 3.2 Gen1 Type-A
• 4 x Rear
• 2 x Front
• 6 x USB 2.0
• 2 x Rear
• 4 x Front

Internal Connectors & Headers

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (supports 2 USB 3.2 Gen1 ports)

* Supports in total up to 12V/3A, 36W LED Strip
* Supports in total up to 5V/3A, 15W LED Strip
* CPU_FAN1 supports fan power up to 1A (12W)
* CPU_FAN2/WP supports fan power up to 2A (24W)
*** CHA_FAN1~2/WP support fan power up to 2A (24W)

CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if a 3-pin or 4-pin fan is in use.

Rear Panel I/O

• 2 x Antenna Mounting Points
• 2 x HDMI Ports
• 4 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks:
• Line In
• Front Speaker
• Microphone

Software & UEFI

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer

Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

Form Factor

• Micro ATX Form Factor
• Dimensions: 9.6 in x 7.9 in (24.4 cm x 20.1 cm)

Operating System Support

• Microsoft Windows® 10 64-bit
• Microsoft Windows® 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
