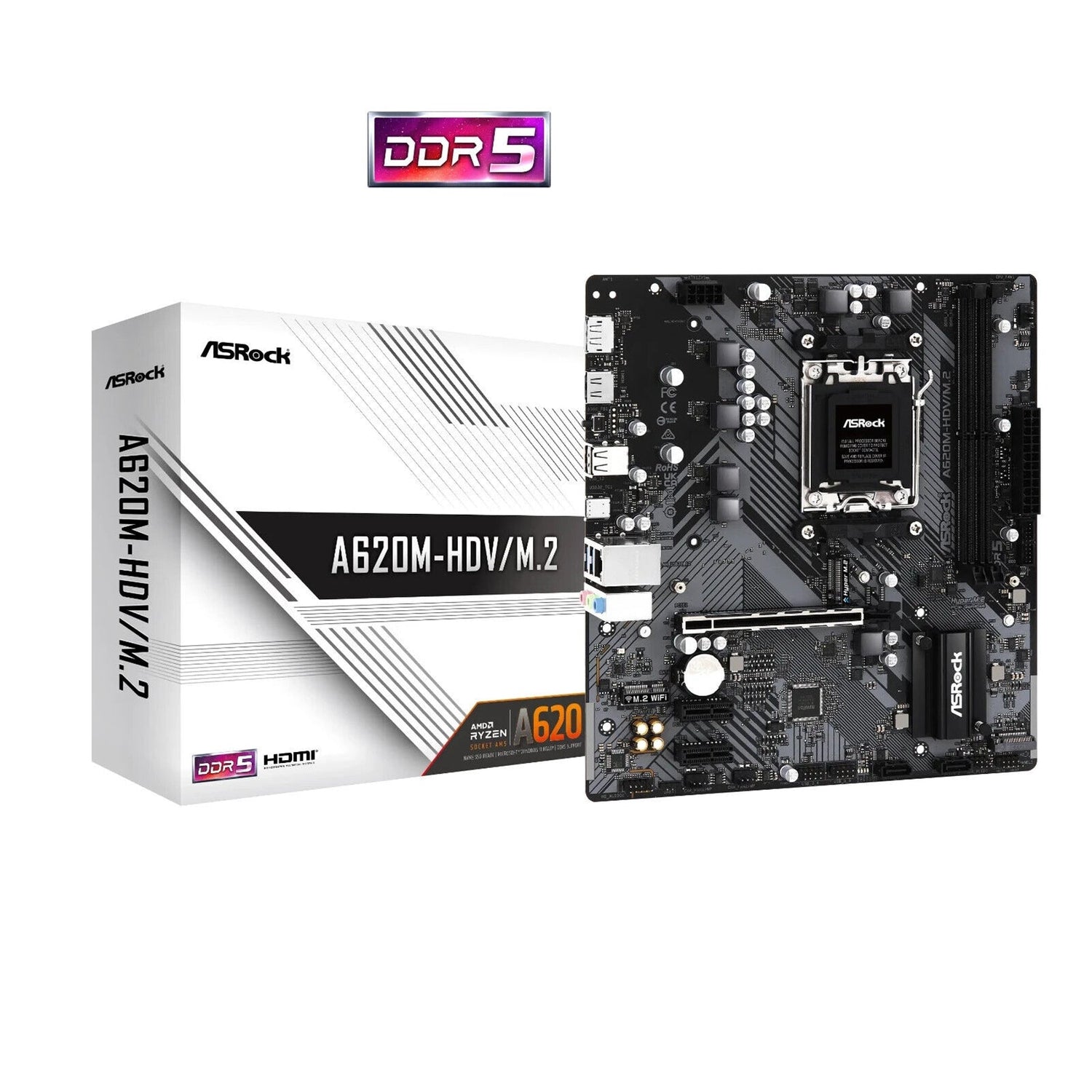

ASRock A620M-HDV/M.2 AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

ASRock A620 Micro ATX Motherboard – AMD AM5 Ryzen 7000 Series

Optimize your next build with a compact, feature-rich ASRock A620 Micro ATX motherboard designed for AMD Socket AM5 Ryzen 7000 Series processors. With integrated Dr.MOS power stages, 2oz copper PCB, PCIe 4.0 support, high-speed M.2 storage, and immersive Nahimic Audio, this board delivers productivity, stability, and performance.

Key Features

Dr.MOS Integrated Power Stage

Dr.MOS is an integrated power stage solution optimized for synchronous buck step-down voltage applications. Compared to traditional discrete MOSFETs, it intelligently delivers higher current per phase, providing improved thermal results and superior performance.

2oz Copper PCB

Featuring 2 ounce copper inner layers, this motherboard offers: - Stable signal traces and power shapes
- Lower operating temperatures
- Higher energy efficiency for overclocking

It is able to support the latest memory modules with extreme memory performance.

Reinforced Steel PCIe 4.0 Slot

[PCIe 4.0 Version] The reinforced steel slot supports the PCI Express 4.0 standard and is designed to: - Provide extra anchor points
- Offer a stronger latch
- Ensure signal stability
- Help keep heavy graphics cards securely installed

Nahimic Audio

Nahimic Audio delivers an engaging, vibrant, and detailed listening experience across: - Headphones and headsets
- External and internal speakers
- USB, Wi-Fi, analog output, and HDMI

High Speed M.2 Solution

This motherboard accommodates multiple M.2 storage devices. One M.2 slot supports PCI Express 4.0 M.2 SSDs, offering performance up to twice the speed of the previous 3rd generation for lightning-fast data transfer.

USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C on the rear panel provides: - Up to 5 Gbps data transfer rate
- Next-generation reversible USB connector design

M.2 (Key E) for WiFi

In addition to the onboard LAN port, users can choose wireless connectivity via the M.2 (Key E) slot.
Wi-Fi module is not included.

Specifications

Unique Features

• Superb Productivity
• Dual Channel DDR5
• Rock-Solid Durability
• 4+1+1 Power Phase, 50A Dr.MOS for VCore
• EZ Update
• BIOS Flashback Button
• ASRock Auto Driver Installer
• EZ Troubleshooter
• ASRock Post Status Checker

CPU

Chipset

Memory

BIOS

Graphics

Audio

LAN

Expansion Slots

Storage

RAID

* Requires additional M.2 NVMe expansion cards to support RAID 10.

USB

All USB ports support ESD Protection.

Internal Connectors

• 1 x Power LED and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (supports 2 USB 3.2 Gen1 ports)

* CPU_FAN1 supports fan power up to 1A (12W).
** CHA_FAN1~3/WP support fan power up to 2A (24W) and can auto detect 3-pin or 4-pin fans.

Rear Panel I/O

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 2 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line In / Front Speaker / Microphone

Software & UEFI

Software - ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN

UEFI - ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

Form Factor

Operating System Support

• Microsoft® Windows® 10 64-bit
• Microsoft® Windows® 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
