Gigabyte H610M H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard
$99.00
GIGABYTE H610M H V3 DDR4 (rev. 1.0)
Intel H610 Micro ATX Motherboard
The GIGABYTE H610M H V3 DDR4 (rev. 1.0) motherboard delivers a compact Intel H610 platform with a 4+1+1 Hybrid Digital VRM, PCIe 4.0 support, Gen3 x4 M.2, Smart Fan 6, and Anti-Sulfur resistors for enhanced durability and stability.
Key Features
- Supports Intel Core 14th / 13th / 12th Gen, Pentium Gold & Celeron processors (LGA1700)
- Dual Channel DDR4, 2 x DIMM, up to 64 GB (32 GB per DIMM)
- 4+1+1 Hybrid Digital VRM Design with Low RDS(on) MOSFETs
- PCIe 4.0 x16 slot with reinforced design
- NVMe PCIe 3.0 x4 M.2 slot (Socket 3, M key)
- Realtek GbE LAN with bandwidth management
- High quality audio capacitors & Audio Noise Guard
- Smart Fan 6 with multiple temperature sensors and hybrid fan headers (FAN STOP)
- GIGABYTE APP Center and utilities
- Anti-Sulfur Resistors for enhanced reliability
- Micro ATX form factor (22.3 cm x 19.3 cm)
Power Design: 4+1+1 Hybrid Phases
- 4+1+1 Phases Hybrid Power Design
- Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation
- 8-pin solid pin CPU power connector
- Cleaner, more efficient power delivery and improved thermal performance help maintain stability under high CPU frequencies and heavy loading
PCIe 4.0 Design
- 1 x PCIe 4.0 x16 slot
- Reinforced PCIe 4.0 x16 slot design
- PCIe 4.0 Ready PCB with low signal loss
Memory & Single 32 GB Support
- Maximum memory capacity: 64 GB
- Up to 32 GB per single DDR4 DIMM slot
- 2 DIMM slots support up to 64 GB total
- Provides additional memory headroom for memory-intensive applications such as rendering and video editing
Smart Fan 6 Cooling
Smart Fan 6 provides advanced cooling controls to keep systems cool and quiet.
Headers & Sensors
- 3 x PWM/DC fan headers
- 4 x internal temperature sensors
Cooling Features
- High current support: each fan header supports PWM/DC fans and water cooling pumps, up to 24W (12V x 2A) with over-current protection
- Precision fan control: up to 7 temperature/fan speed control points per fan curve
- Dual curve mode: Slope/Stair modes for different scenarios
- Fan Stop: fans can stop completely below user-defined temperature thresholds
Hybrid Cores Optimization
- Dedicated “CPU Upgrade” BIOS profiles to optimize Intel Hybrid technology by adjusting P-Core and E-Core activation and voltage policies for different usage scenarios
Connectivity & Networking
GbE LAN with Bandwidth Management
- Realtek GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps)
- Network bandwidth management software helps improve latency and maintain low ping in busy LAN environments
NVMe PCIe Gen3 x4 M.2
- 1 x M.2 connector (Socket 3, M key, type 2280/2260)
- Supports PCIe 3.0 x4/x2 SSDs to maximize system storage performance
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel audio support
- High-end audio capacitors for high-resolution, high-fidelity sound
- Audio Noise Guard design to separate sensitive analog audio from PCB-level noise
Solid Pin Power Connectors
- Solid plated ATX 24-pin and 8-pin 12V power connectors
- Benefits include:
- Larger contact area for electricity
- More metal content to sustain higher power and heat
Anti-Sulfurization Protection
- Anti-Sulfur resistors help prevent failure caused by sulfur compounds penetrating tiny onboard resistors, enhancing long-term durability and reliability
BIOS & Software
- AMI UEFI BIOS with new GUI and user-friendly features for easier setup and optimization
- Supports:
- APP Center
- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
-
Q-Flash
-
Bundled software:
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Specifications
CPU
- Socket: LGA1700
- Supports:
- 14th, 13th, and 12th Gen Intel Core processors
- Intel Pentium Gold and Celeron processors
- L3 cache varies by CPU
Chipset
- Intel H610 Express Chipset
Memory
- Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
- 2 x DDR4 DIMM sockets, up to 64 GB total (32 GB per DIMM)
- Dual channel memory architecture
- Supports:
- ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
- Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Extreme Memory Profile (XMP) modules
Onboard Graphics
Integrated Graphics Processor – Intel HD Graphics support:
- 1 x D-Sub port
- Max resolution: 1920x1200 @ 60 Hz
- 1 x HDMI port
- Max resolution: 4096x2160 @ 60 Hz
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel support
LAN
- Realtek GbE LAN chip
- 1 Gbps / 100 Mbps / 10 Mbps
Expansion Slots
- CPU:
- 1 x PCI Express x16 slot, PCIe 4.0, running at x16
- Chipset:
- 1 x PCI Express x1 slot, PCIe 3.0, running at x1
Storage Interface
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260, PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6 Gb/s connectors
USB
- Chipset:
- 4 x USB 3.2 Gen 1 ports (2 rear, 2 via internal header)
- 4 x USB 2.0/1.1 ports on the back panel
- Chipset + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6 Gb/s connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header

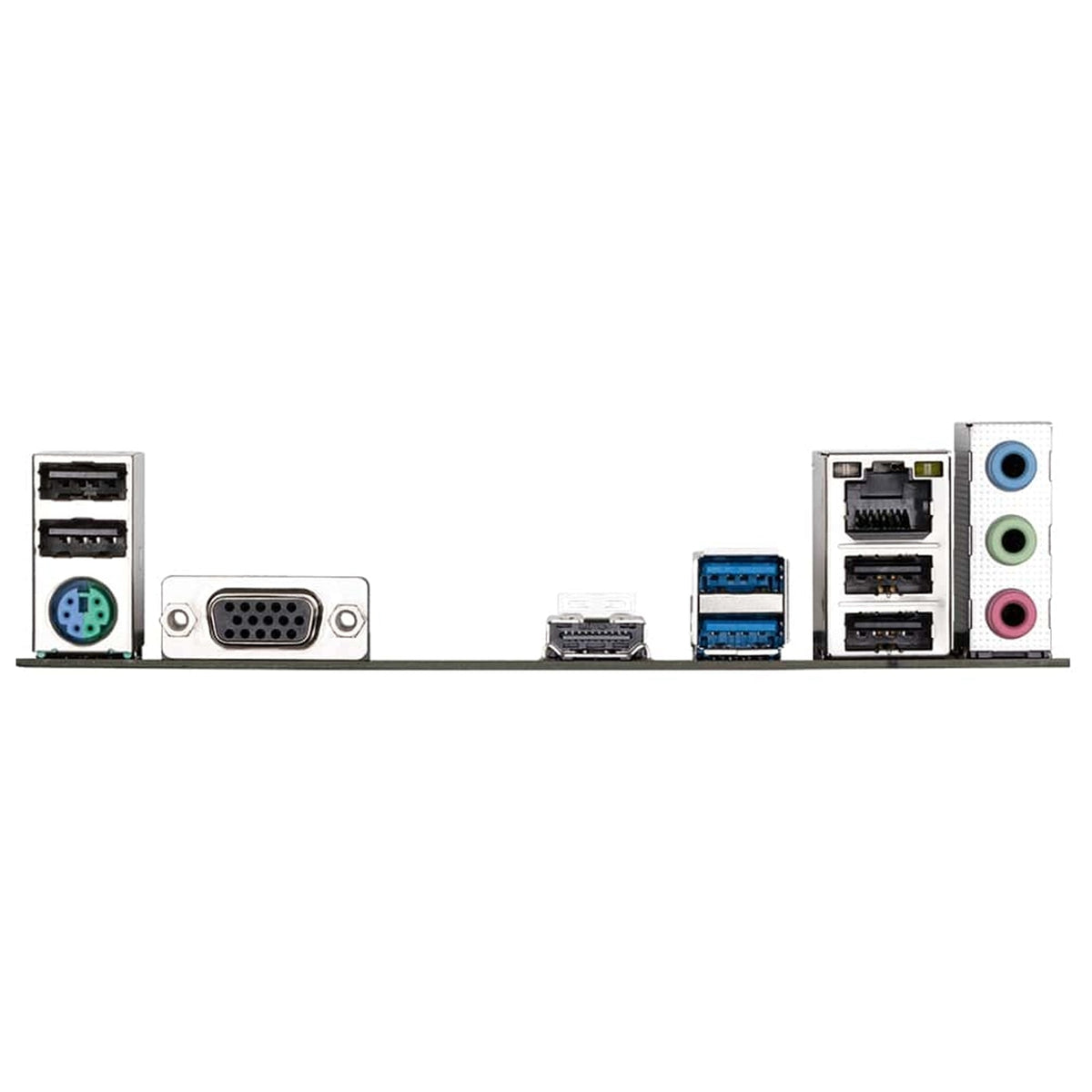

Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller
- iTE I/O Controller Chip
Hardware Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 128 Mbit flash
- AMI UEFI BIOS
- Supports:
- PnP 1.0a
- DMI 2.7
- WfM 2.0
- SM BIOS 2.7
- ACPI 5.0
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- Micro ATX
- Dimensions: 22.3 cm x 19.3 cm
Specification Table
| Category | Details |
|---|---|
| CPU | LGA1700, 14th/13th/12th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel H610 Express |
| Memory | 2 x DDR4 DIMM, up to 64 GB, DDR4 3200–2133 MT/s, Dual Channel, XMP |
| Graphics Outputs | 1 x D-Sub (1920x1200@60 Hz), 1 x HDMI (4096x2160@60 Hz) |
| Audio | Realtek Audio CODEC, HD Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| M.2 | 1 x M.2 (Socket 3, M key, 2280/2260, PCIe 3.0 x4/x2 SSD) |
| SATA | 4 x SATA 6 Gb/s |
| USB (Rear) | 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers |
| Cooling Headers | 1 x CPU fan, 2 x system fan (PWM/DC), Smart Fan 6 |
| Power Connectors | 24-pin ATX, 8-pin ATX 12V (solid pin) |
| Form Factor | Micro ATX, 22.3 cm x 19.3 cm |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
