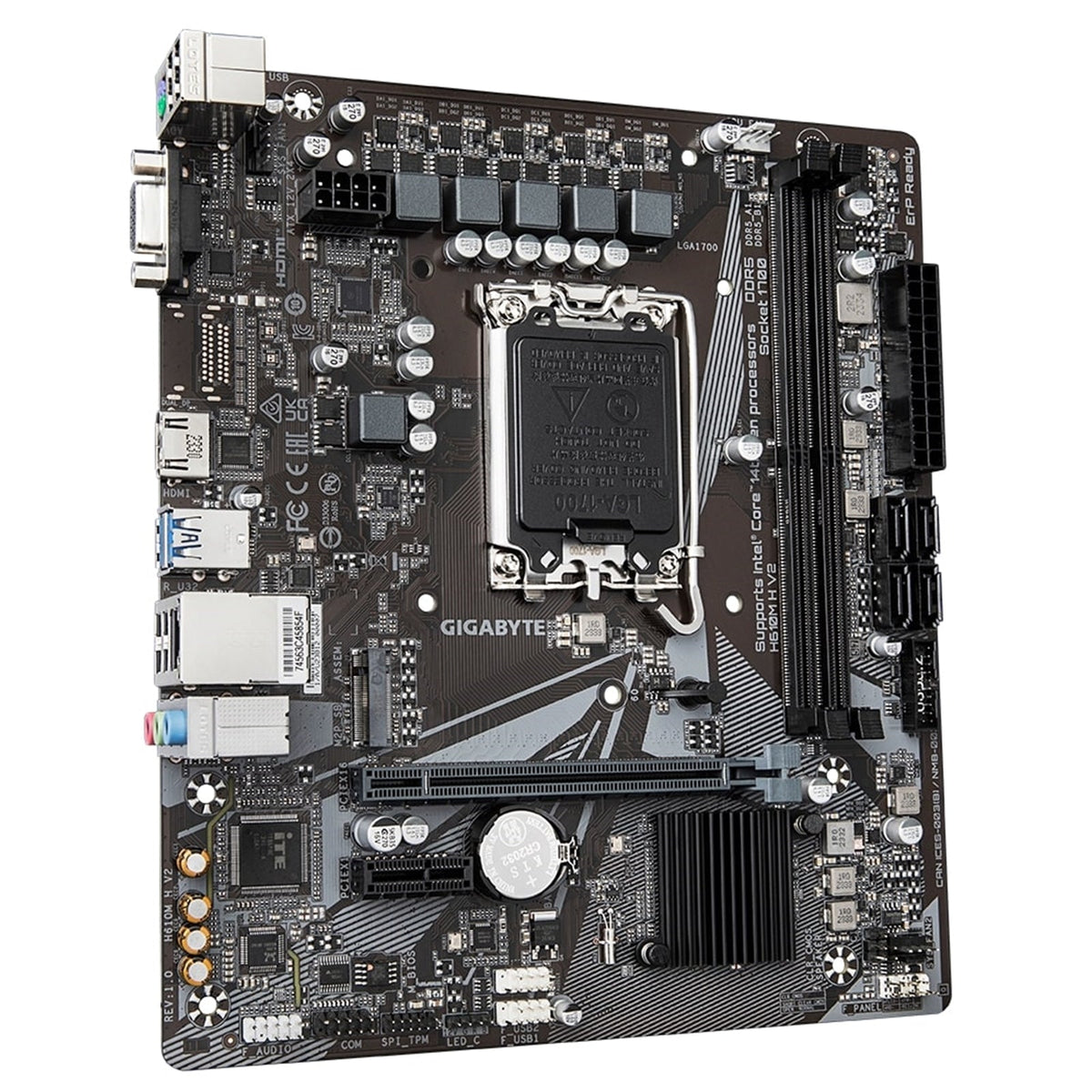

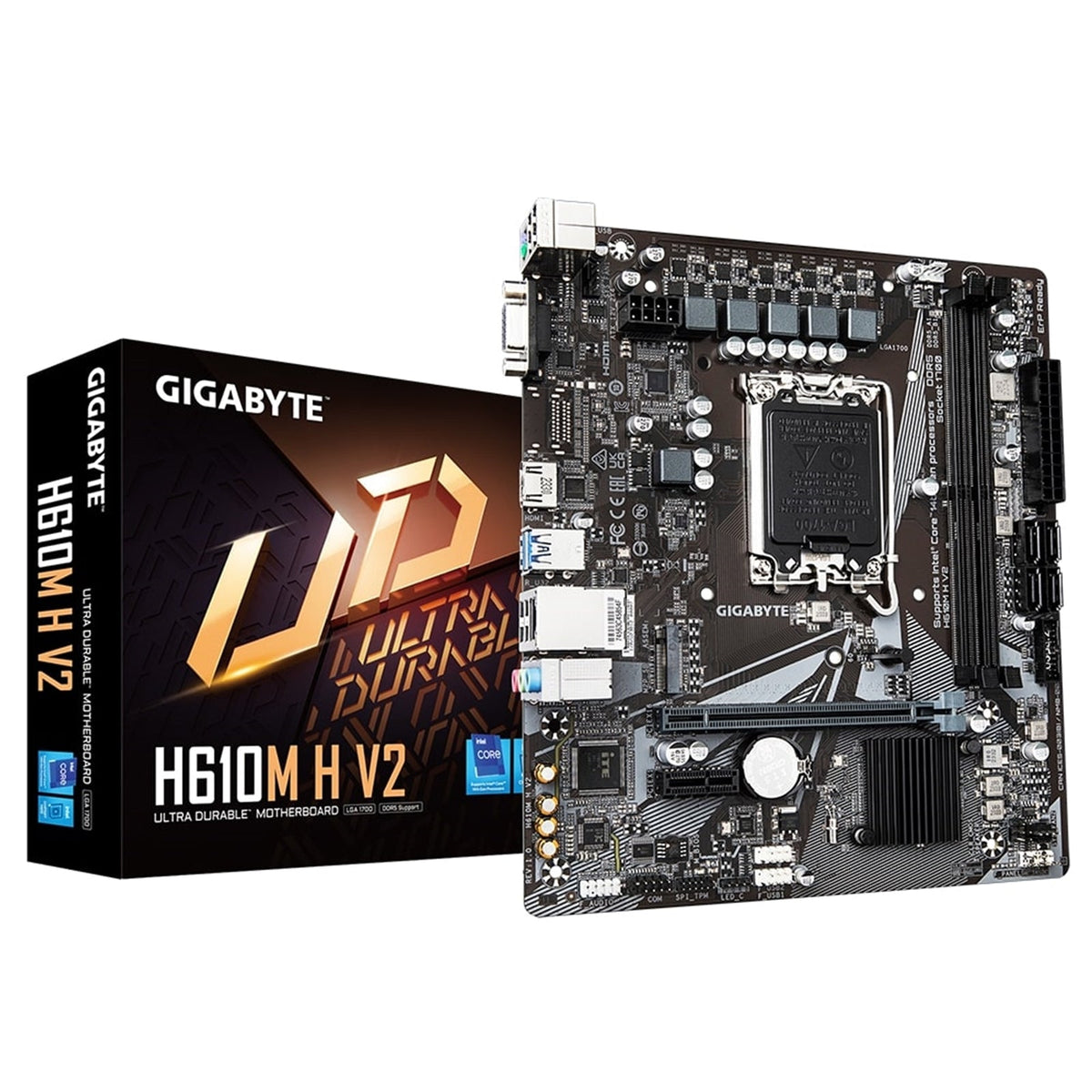

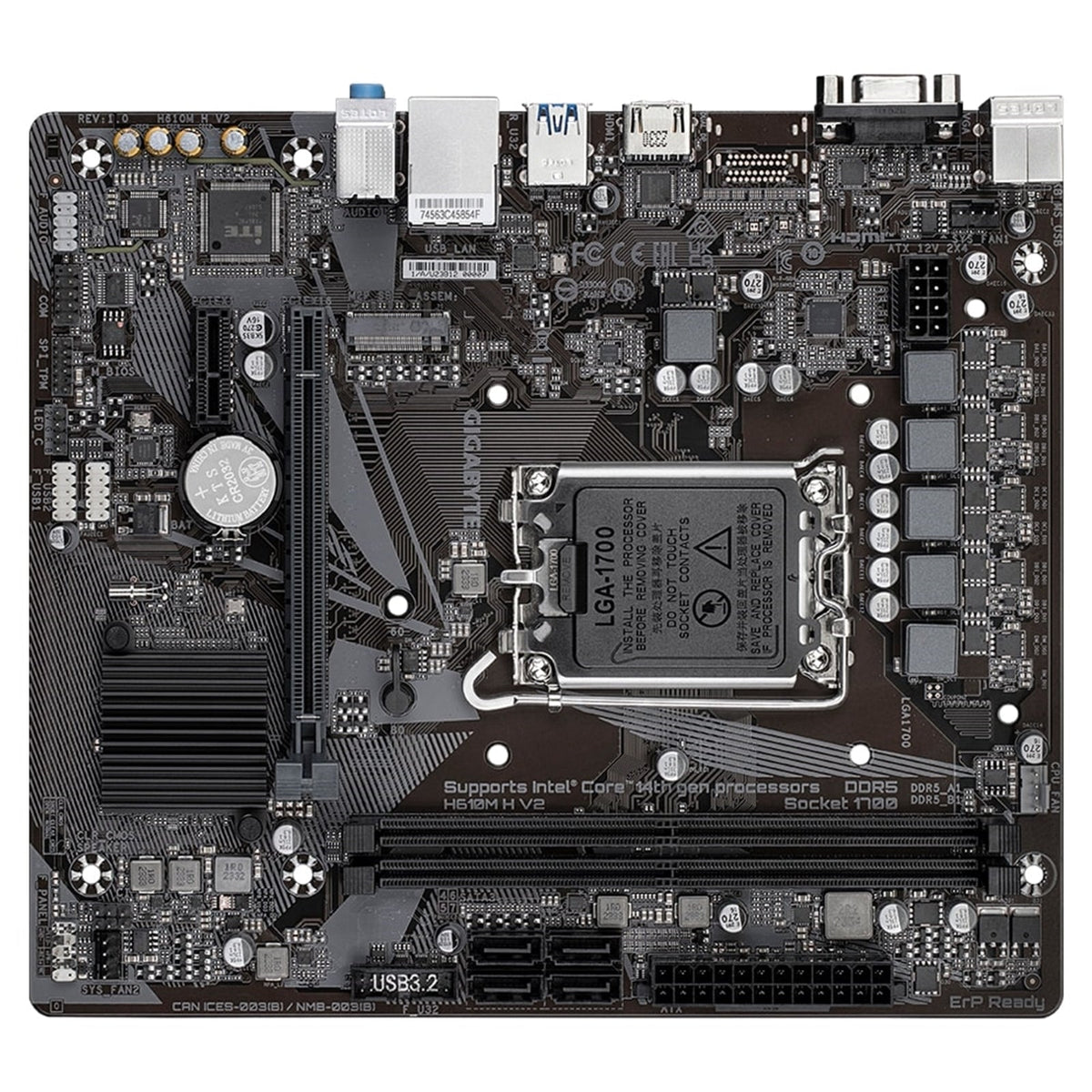

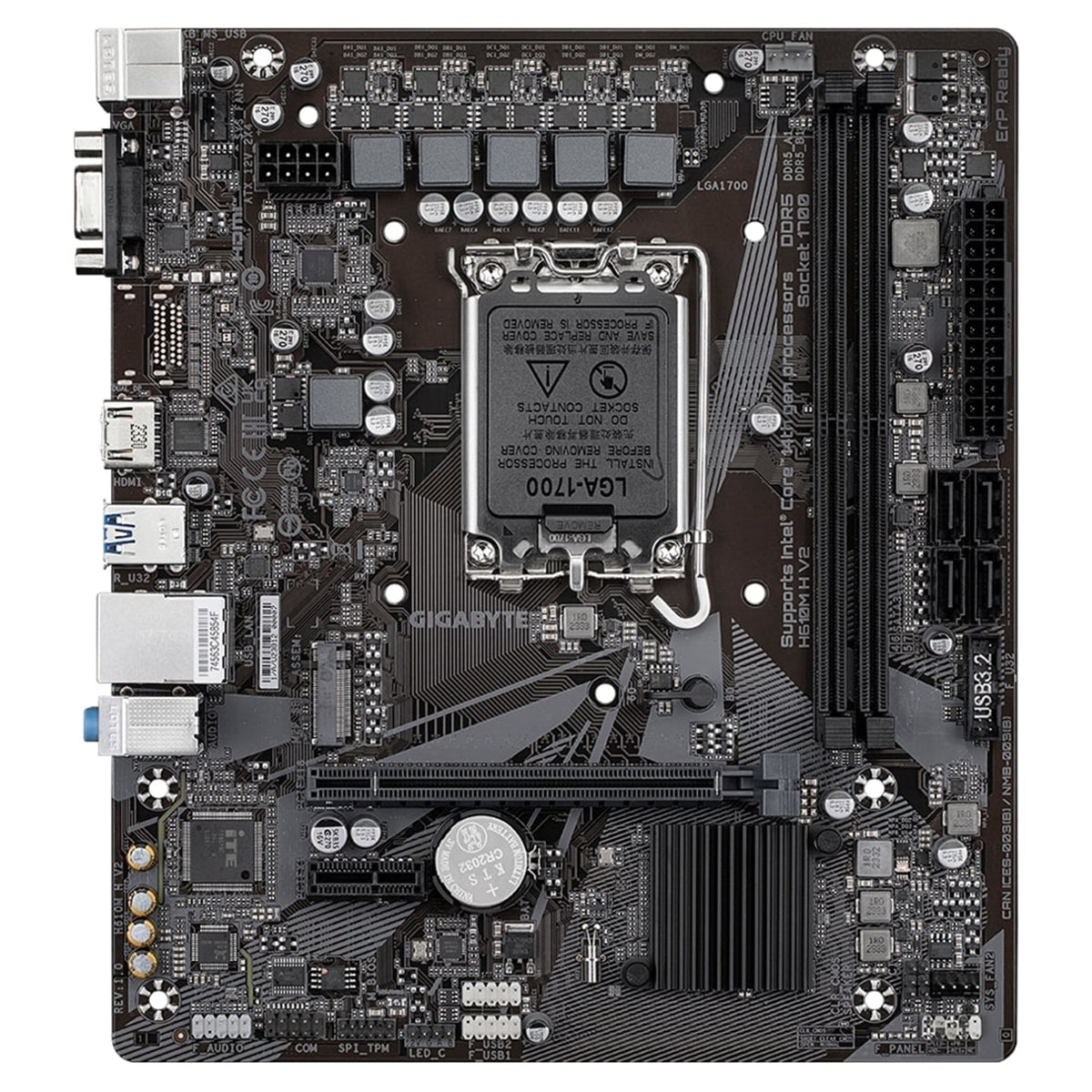

Gigabyte H610M H V2 (Rev. 1.0) Intel 1700 Socket Motherboard
$101.00
GIGABYTE H610M D3W (Rev. 1.1) Micro ATX Motherboard
The GIGABYTE H610M D3W (Rev. 1.1) is designed for Intel® 14th, 13th, and 12th Gen processors, delivering a solid foundation for modern desktop systems with DDR5 memory support, NVMe M.2 storage, and comprehensive connectivity.
Key Features
- CPU Support
-
Supports Intel® Core™ 14th / 13th / 12th Gen processors
-
Memory
- Dual channel DDR5
- 2 x DIMM slots
-
Non-ECC unbuffered memory support
-
Power Design
-
4+1+1 Hybrid Digital VRM Design
-
Networking
-
GbE LAN with bandwidth management
-
Storage
-
NVMe PCIe 3.0 x4 M.2 slot
-
Audio
- High quality audio capacitors
-
Audio Noise Guard
-
Cooling & Control
- Smart Fan 6 with multiple temperature sensors
-
Hybrid fan headers with FAN STOP
-
Software & Reliability
- GIGABYTE APP Center for simple and easy use
- Anti-sulfur resistors design
Specifications
CPU
| Item | Details |
|---|---|
| Socket | LGA1700 |
| Support | 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors* |
| Cache | L3 cache varies with CPU |
* Refer to the "CPU Support List" for more information.
Chipset
| Item | Details |
|---|---|
| Chipset | Intel® H610 Express |
Memory
| Item | Details |
|---|---|
| Support (14th & 13th Gen Core™ i9/i7) | DDR5 5600/5200/4800/4400 MT/s modules |
| Support (13th Gen Core™ i5/i3 & 12th Gen Core™, Pentium® Gold, Celeron®) | DDR5 4800/4400 MT/s modules |
| Slots | 2 x DDR5 DIMM sockets |
| Max Capacity | Up to 128 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP | Support for Extreme Memory Profile (XMP) |
The CPU and memory configuration may affect supported memory types, speeds, and number of modules. Refer to the "Memory Support List" on GIGABYTE's website for details.
BIOS
| Item | Details |
|---|---|
| ROM | 1 x 128 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Support | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Graphics
Integrated Graphics Processor – Intel® HD Graphics support*:
- 1 x D-Sub port
- Max resolution: 1920 x 1200 @ 60 Hz
- 1 x HDMI port
- Max resolution: 4096 x 2160 @ 60 Hz
- Supports HDMI 2.1 and HDCP 2.3
- Supports native HDMI 2.1 TMDS compatible ports
* Graphics specifications may vary depending on the CPU.
Audio
| Item | Details |
|---|---|
| Codec | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel* |
* Audio jack functionality can be changed in the audio software. To configure 7.1-channel audio, use the audio software settings.
LAN
| Item | Details |
|---|---|
| Chip | Realtek® GbE LAN chip |
| Speed | 1 Gbps / 100 Mbps / 10 Mbps |
Wireless LAN: N/A
Expansion Slots
- CPU:
- 1 x PCI Express x16 slot, PCIe 4.0, running at x16
- Chipset:
- 1 x PCI Express x1 slot, PCIe 3.0, running at x1
Storage
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260, PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID: N/A
USB
- Chipset:
- 4 x USB 3.2 Gen 1 ports
- 2 x rear panel
- 2 x via internal header
-
4 x USB 2.0/1.1 ports on rear panel
-
Chipset + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports via internal headers
Internal Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header

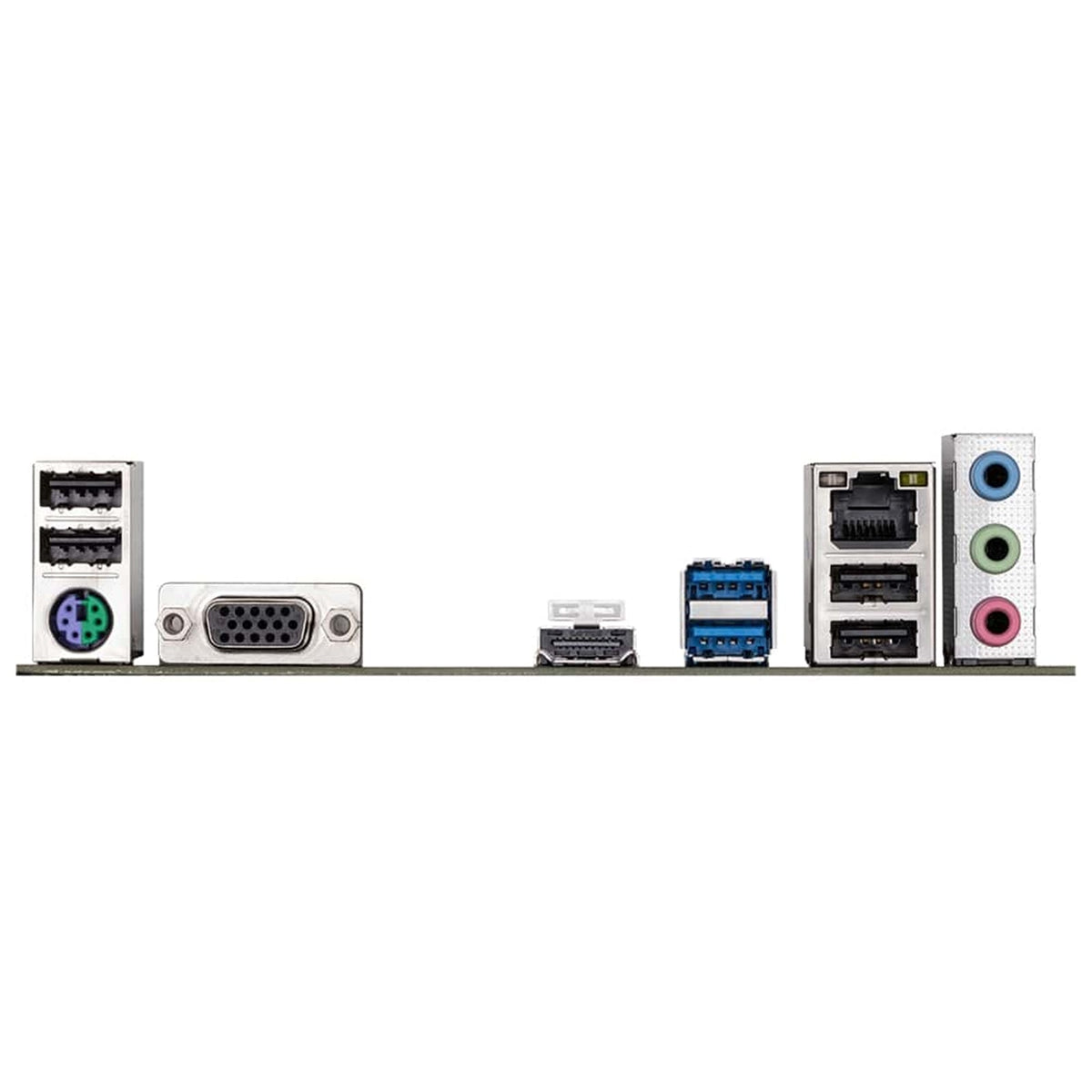

Rear Panel I/O
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
Form Factor
| Item | Details |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 22.3 cm x 19.6 cm |
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
