Gigabyte H610M D3W (Rev. 1.1) Intel 1700 Socket Motherboard
$103.00
GIGABYTE H610M D3W (Rev. 1.1) Motherboard
The GIGABYTE H610M D3W (Rev. 1.1) is a Micro ATX motherboard designed for Intel® 14th, 13th, and 12th Generation processors, offering reliable performance, DDR5 memory support, and essential connectivity for modern PC builds.
Key Features
- CPU Support
- Supports Intel® Core™ 14th, 13th, and 12th Generation processors
- Supports Intel® Pentium® Gold and Celeron® processors
-
LGA1700 socket
-
Next-Gen Memory Performance
- Dual Channel DDR5, 2 DIMMs
- Non-ECC Unbuffered DDR5 memory support
- Up to 128 GB system memory (64 GB per DIMM)
- Support for ECC Un-buffered DIMM (operates in non-ECC mode)
-
Support for Extreme Memory Profile (XMP) memory modules
-
Power Design
-
5+1+1 Hybrid Digital VRM Design
-
Storage & Expansion
- NVMe PCIe 3.0 x4 M.2 connector (Socket 3, M key, type 2280)
- 4 x SATA 6Gb/s connectors
- 1 x PCIe 4.0 x16 slot (from CPU)
-
1 x PCIe 3.0 x1 slot (from chipset)
-
Display Connectivity
- DisplayPort output
- HDMI output
-
Supports multiple displays
-
Networking & Audio
- Realtek® GbE LAN
- High Quality Audio Capacitors
- Audio Noise Guard
-
Realtek® Audio Codec, supporting up to 7.1-channel audio
-
Cooling & Control
- Smart Fan 6 with multiple temperature sensors
- Hybrid fan headers with FAN STOP
-
GIGABYTE CONTROL CENTER (GCC) for simple, easy control
-
Durability
-
Anti-Sulfur Resistors Design
-
Form Factor
- Micro ATX, 24.4cm x 22.0cm
Specifications
CPU
| Item | Details |
|---|---|
| Socket | LGA1700 |
| Support | 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, Celeron® processors |
| Cache | L3 cache varies with CPU |
(For the latest CPU support list, please refer to GIGABYTE’s website.)
Chipset
| Item | Details |
|---|---|
| Chipset | Intel® H610 Express |
Memory
| Item | Details |
|---|---|
| DIMM Slots | 2 x DDR5 DIMM sockets |
| Max Capacity | Up to 128 GB (64 GB per DIMM) |
| Channel Architecture | Dual Channel |
| Supported Modules | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode); non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Yes, Extreme Memory Profile (XMP) |
Supported Memory Speeds:
- 14th & 13th Gen Intel® Core™ i9/i7:
- DDR5 5600 / 5200 / 4800 / 4400 MT/s
- 13th Gen Intel® Core™ i5/i3 & 12th Gen Intel® Core™, Pentium® Gold, Celeron®:
- DDR5 4800 / 4400 MT/s
(CPU and memory configuration may affect supported memory types, speeds, and number of modules. Please see the “Memory Support List” on GIGABYTE’s website for details.)
BIOS
| Item | Details |
|---|---|
| ROM | 1 x 128 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Support | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Graphics
Integrated Graphics Processor (Intel® HD Graphics support, depending on CPU):
| Port | Specification |
|---|---|
| DisplayPort | Max resolution 4096x2304@60 Hz, DisplayPort 1.2, HDCP 2.3 |
| HDMI | Max resolution 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3; native HDMI 2.1 TMDS compatible port |
(Graphics specifications may vary depending on CPU support.)
Audio
| Item | Details |
|---|---|
| Codec | Realtek® Audio CODEC |
| Standard | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel support* |
* Functionality of an audio jack can be changed via audio software. To configure 7.1-channel audio, use the audio software settings.
LAN
| Item | Details |
|---|---|
| Controller | Realtek® GbE LAN chip |
| Speeds | 1 Gbps / 100 Mbps / 10 Mbps |
| Wireless LAN | N/A |
Expansion Slots
| Source | Slot |
|---|---|
| CPU | 1 x PCI Express x16, PCIe 4.0, runs at x16 |
| Chipset | 1 x PCI Express x1, PCIe 3.0, runs at x1 |
Storage
| Source | Connector |
|---|---|
| Chipset | 1 x M.2 (Socket 3, M key, type 2280, PCIe 3.0 x4/x2 SSD support) |
| Chipset | 4 x SATA 6Gb/s connectors |
RAID: N/A
USB
From Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support (via internal header)
- 3 x USB 3.2 Gen 1 ports
- 1 x rear panel
- 2 x via internal header
- 2 x USB 2.0/1.1 ports via internal header
From Chipset + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on rear panel
Internal Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable RGB Gen2 LED strip headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header (USB 3.2 Gen 1 support)
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

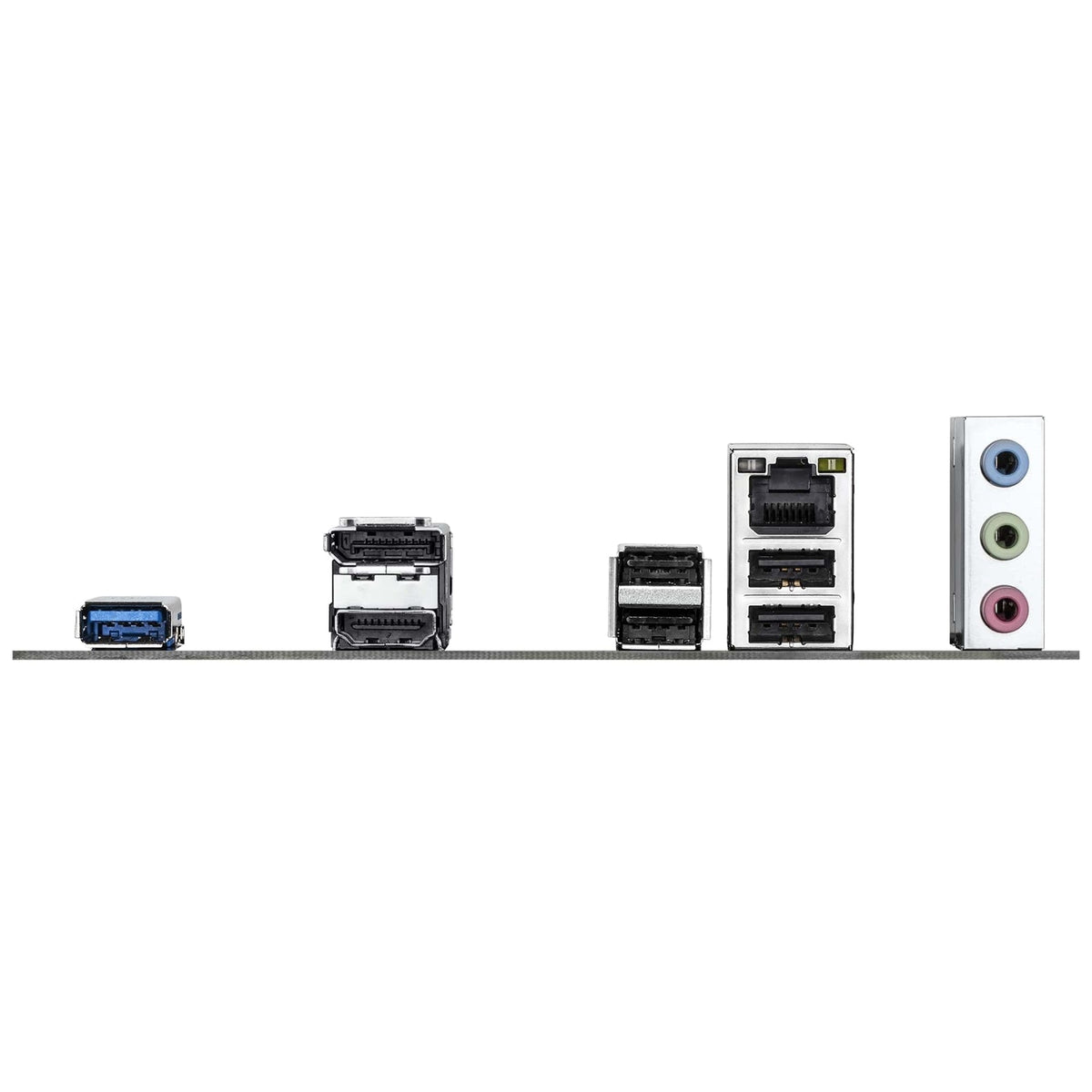

Rear Panel I/O
- 1 x DisplayPort*
- 1 x HDMI port*
- 1 x USB 3.2 Gen 1 port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
* Refer to “Graphics” section for version and resolution support.
Form Factor
| Item | Details |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 24.4 cm x 22.0 cm |
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
