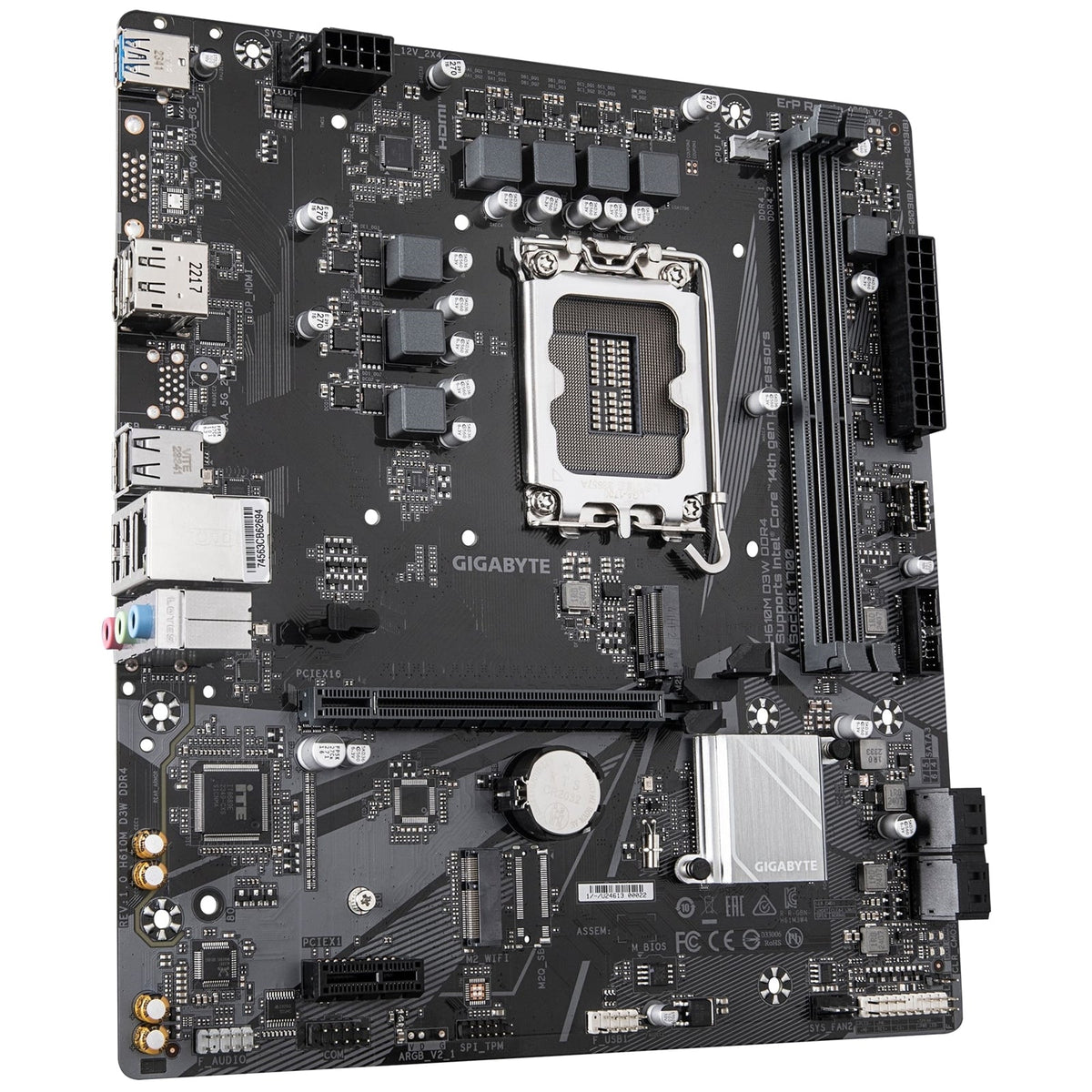

Gigabyte H610M D3W DDR4 Intel 1700 Socket Motherboard

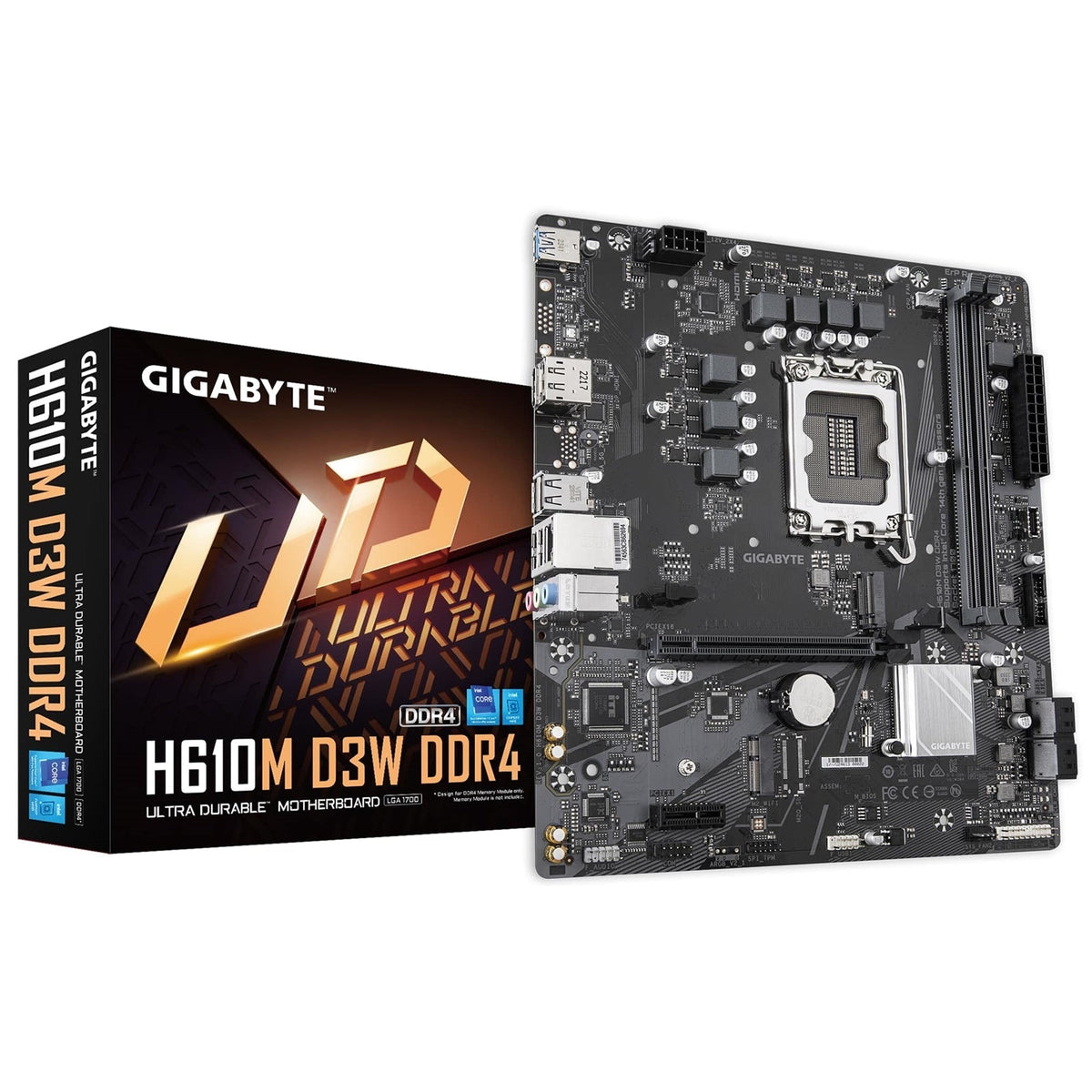

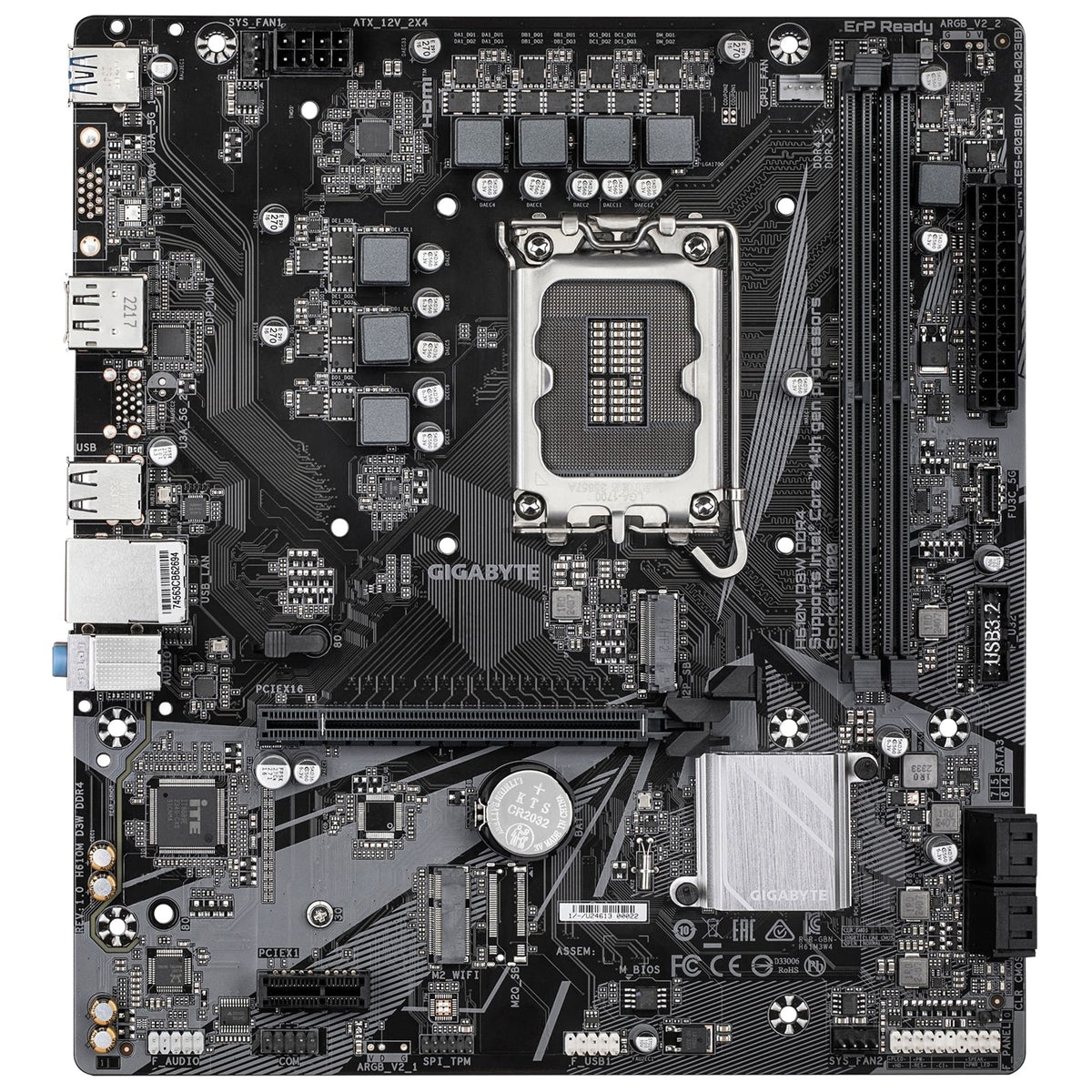

GIGABYTE H610M D3W DDR4 (Rev. 1.x) Micro ATX Motherboard

The GIGABYTE H610M D3W DDR4 (Rev. 1.x) is designed for Intel® 14th, 13th, and 12th Gen processors, delivering a balanced platform with DDR4 memory support, hybrid digital VRM design, NVMe storage, and comprehensive connectivity in a compact micro ATX form factor.

Key Features

• CPU Support: Intel® Core™ 14th / 13th / 12th Gen processors
• Memory: Dual Channel Non-ECC Unbuffered DDR4, 2 DIMM slots (up to 64 GB)
• Power Design: 5+1+1 Hybrid Digital VRM Design
• Network: GbE LAN with bandwidth management
• Storage: NVMe PCIe 3.0 x4 M.2 slot
• Audio: High quality audio capacitors and Audio Noise Guard
• Cooling: Smart Fan 6 with multiple temperature sensors, hybrid fan headers with FAN STOP
• Software: GIGABYTE APP Center for simple and easy use
• Durability: Anti-sulfur resistors design

Specifications

CPU

Chipset

Memory

BIOS

Graphics

Integrated Graphics Processor – Intel® HD Graphics support (graphics specifications depend on CPU):

• DisplayPort
• 1 x DisplayPort
• Max resolution: 4096 x 2304 @ 60 Hz

• Supports DisplayPort 1.2 and HDCP 2.3

• HDMI

• 1 x HDMI port
• Max resolution: 4096 x 2160 @ 60 Hz
• Supports HDMI 2.1 and HDCP 2.3
• Supports native HDMI 2.1 TMDS compatible ports

Audio

* Audio jack functionality can be configured via the audio software. To set up 7.1-channel audio, use the audio software for configuration.

LAN

Wireless LAN

Expansion Slots

From CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0, running at x16 (PCIEX16)
• The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• If only one graphics card is installed, it must be in the PCIEX16 slot.

From Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 3.0, running at x4 (PCIEX4)

Storage

From Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2280)
• Supports PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors

RAID

USB

From Chipset:

• 1 x USB Type-C® port with USB 3.2 Gen 1 support (available through internal header)
• 3 x USB 3.2 Gen 1 ports
• 1 x rear panel
• 2 x via internal header
• 2 x USB 2.0/1.1 ports via internal header

From Chipset + 1 USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel

Internal Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable RGB Gen2 LED strip headers**
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

** Addressable RGB Gen2 LED strip headers only on PCB rev. 1.1 or later.

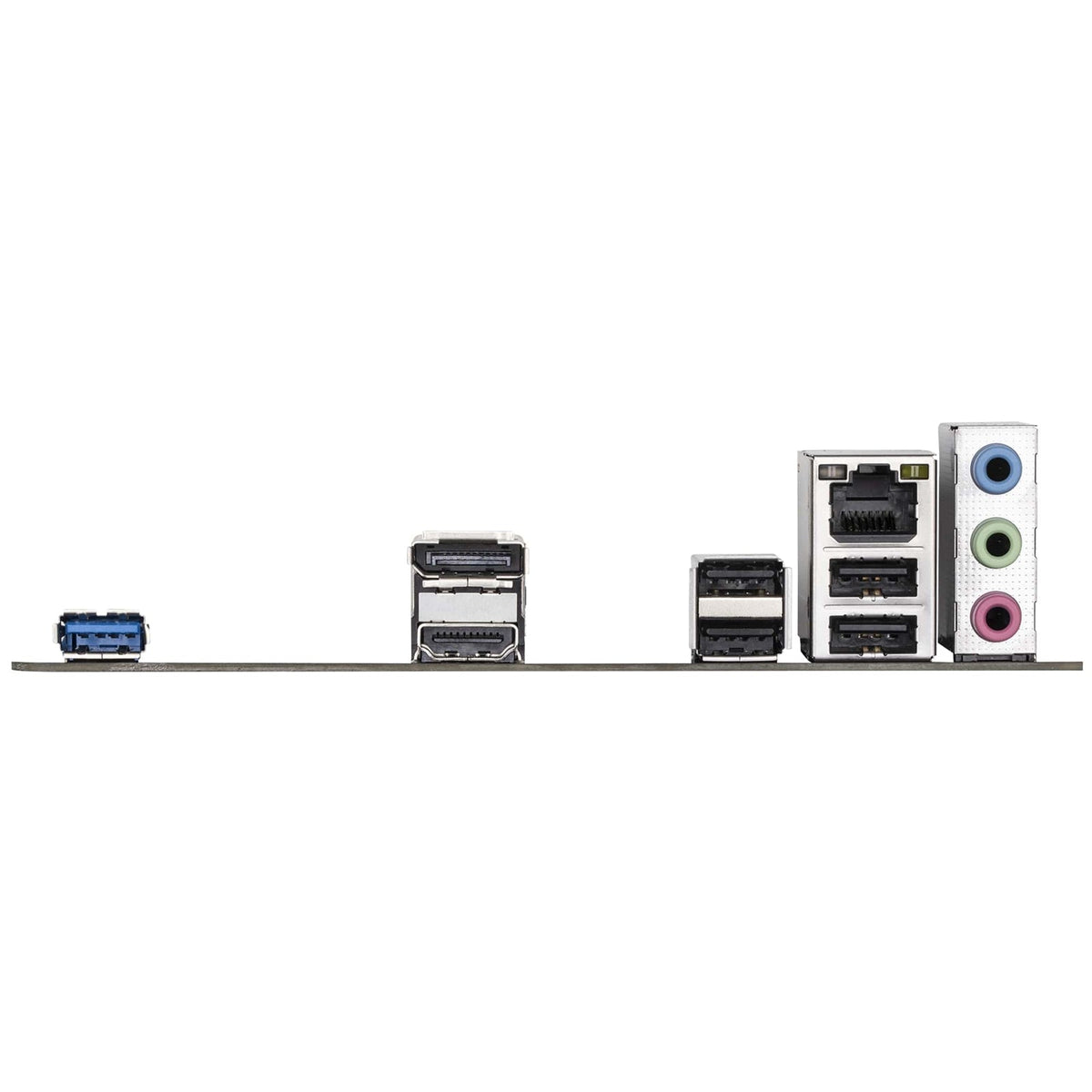

Rear Panel I/O

• 1 x DisplayPort*
• 1 x HDMI port*
• 1 x USB 3.2 Gen 1 port
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

* Refer to “Graphics” section for specifications.

Form Factor

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit
