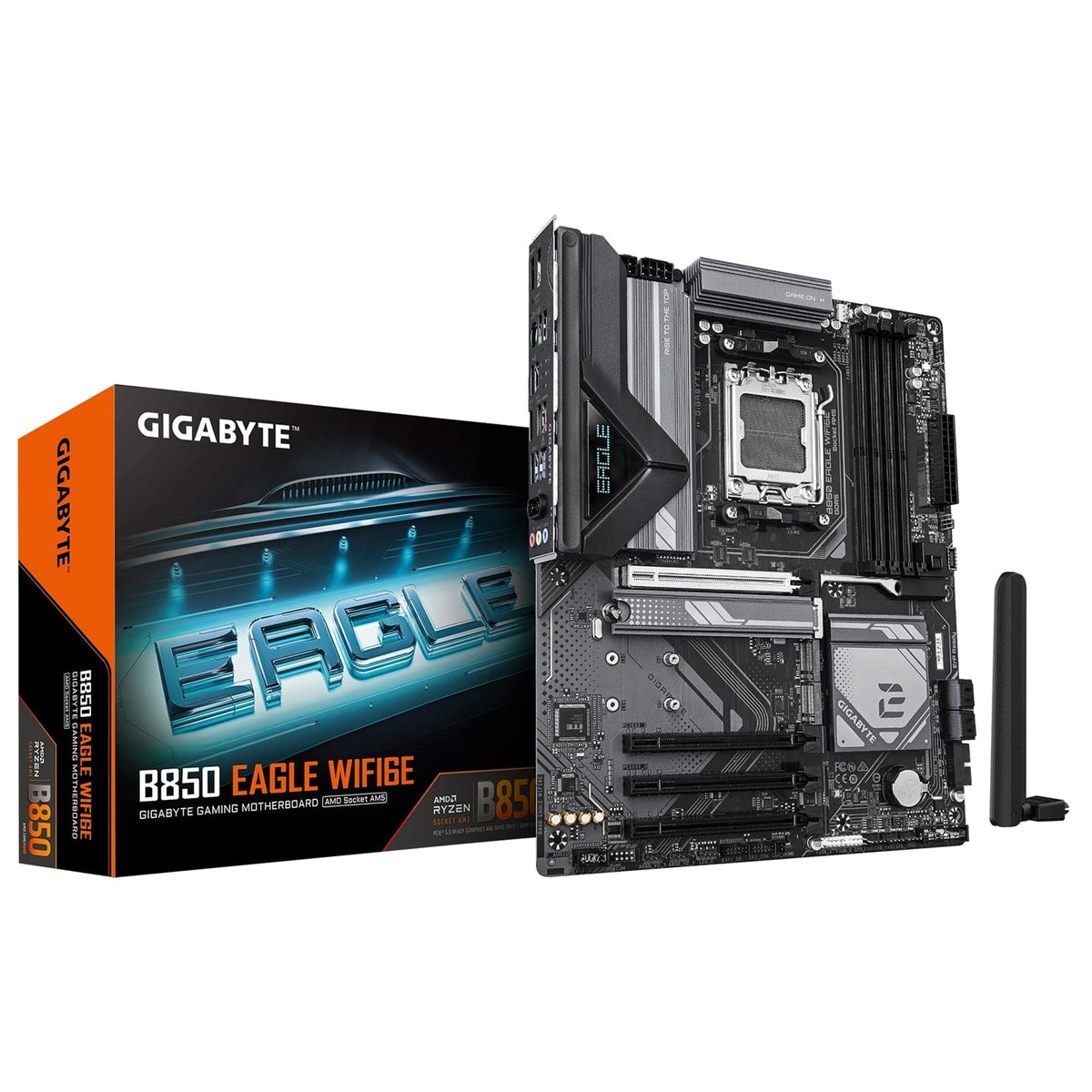

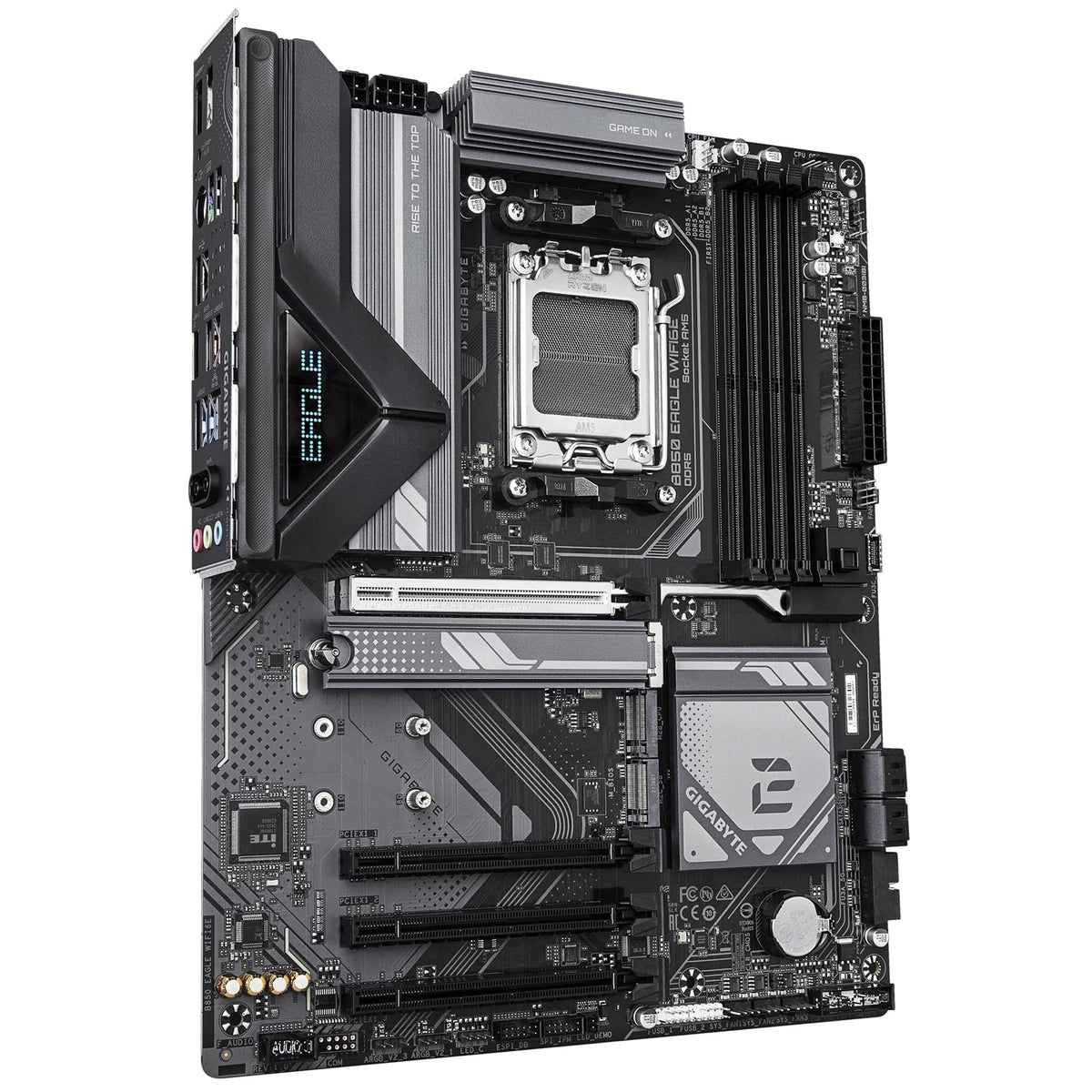

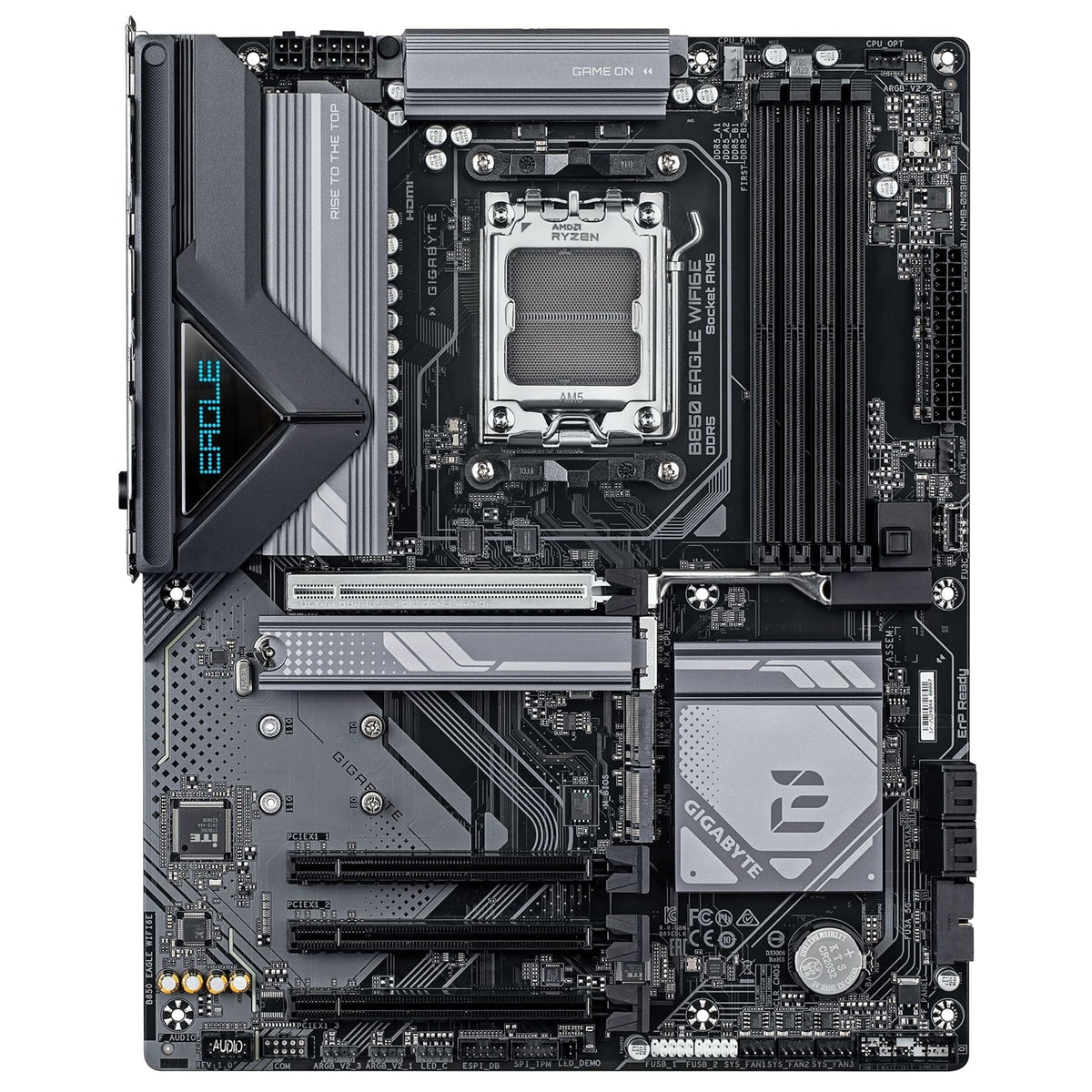

Gigabyte B850 EAGLE WIFI6E AMD AM5 Socket Motherboard
Gigabyte B850 EAGLE WIFI6E AMD AM5 Socket Motherboard está agotado y se enviará tan pronto como vuelva a estar disponible.
¡Sé el primero en saber cuándo está en stock!
Regístrese ahora para ser notificado tan pronto como esté disponible.
Entrega y envío
Entrega y envío
Envío y procesamiento
Procesamiento de pedidos
- Mismo día hábil para pedidos realizados antes de las 3 PM (GMT), excepto en casos raros cuando puede tomar 1 día de negocios adicional.
- Los artículos más grandes o especializados requieren hasta 3 días hábiles para procesar.
Opciones de entrega
- Royal Mail 48
- Gratuito por pedidos superiores a 20 £
- £2.99 por orden bajo £20
- Entrega en 2-3 días hábiles
- Seguimiento 24 (Siguiente Día)- 4,99 libras
- Standard (Large " Specialist Items)
- Gratuito por pedidos superiores a 20 £
- £6.99 por orden bajo £20
- Entrega en 2 a 14 días hábiles (normalmente alrededor de 7 días)
- El proceso puede tardar hasta 3 días hábiles
- Internacional
- Enviamos a todo el mundo. Las opciones de entrega y los plazos estimados para su país están disponibles en el checkout.
- Aduanas, deberes e impuestos de importación son su responsabilidad.
Usted recibirá los detalles de seguimiento tan pronto como sus naves de pedido [Golpe su pedido aquí]. Para detalles completos, por favor vea nuestra [Política de envío].
Free Returns
Free Returns
Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.
No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.
Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.
Gigabyte B850 EAGLE WIFI6E AMD AM5 Socket Motherboard
$281.00
GIGABYTE AMD B850 ATX Motherboard – Key Features & Specifications
Key Features
- X3D Turbo Mode – Designed to unleash a new era of gaming performance
- AMD Socket AM5 – Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Next-Gen Memory Performance
- DDR5 OC support up to 8200 MT/s
- Dual Channel DDR5 with 4 DIMM slots
-
AMD EXPO™ and XMP memory module support
-
Robust Power Design
-
Digital twin 8+2+2 phases VRM solution
-
Ultra-Fast Storage
-
3 x M.2 slots, including PCIe 5.0 x4 support
-
Efficient Cooling & Easy Installation
- VRM Thermal Armor Advanced & M.2 Thermal Guard
- EZ-Latch Plus: PCIe and M.2 quick release, screwless design
-
EZ-Latch Click: Screwless M.2 heatsink design
-
Wi-Fi & Networking
- WIFI EZ-Plug: Quick and easy Wi-Fi antenna installation
-
Fast Networking: GbE LAN & Wi-Fi 6E with directional ultra-high gain antenna
-
User-Friendly Experience
-
Friendly UI with Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and software
-
Extended Connectivity
- HDMI & DisplayPort outputs
- PCIe UD Slot: PCIe 5.0 x16 slot with 10X strength for graphics card and enhanced heat dissipation effect
Technical Specifications
CPU
| Item | Details |
|---|---|
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Note | For the latest CPU support list, please refer to GIGABYTE's website. |
Chipset
| Item | Details |
|---|---|
| Chipset | AMD B850 |
Memory
| Item | Details |
|---|---|
| Memory Type | DDR5 |
| Supported Speeds (MT/s) | 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 |
| DIMM Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| Supported Modules | Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Overclock Profiles | AMD EXPO™ and XMP support |
| Note | CPU and memory configuration may affect supported memory types, speed, and module count. Refer to GIGABYTE's Memory Support List for details. |
Onboard Graphics
| Item | Details |
|---|---|
| Integrated GPU | AMD Radeon™ Graphics (CPU dependent) |
| DisplayPort | 1 x DisplayPort, max 3840x2160 @ 144 Hz, DP 1.4, HDR support |
| HDMI | 1 x HDMI, max 4096x2160 @ 60 Hz, HDMI 2.1, HDCP 2.3, HDR support |
| Note | Supports native HDMI 2.1 TMDS compatible ports. Graphics specifications may vary depending on CPU. |
Audio
| Item | Details |
|---|---|
| Codec | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel |
| Note | Jack functions configurable via audio software. Configure 7.1-channel audio in the audio software. |
LAN
| Item | Details |
|---|---|
| Controller | Realtek® GbE LAN chip |
| Speed | 1 Gbps / 100 Mbps / 10 Mbps |
Wireless Communication
| PCB Rev. | Module | Details |
|---|---|---|
| 1.0 | Intel® Wi-Fi 6E AX210 | Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160 MHz support |
| 1.1 | Realtek® Wi-Fi 6E RTL8852CE | Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160 MHz support |
Actual data rate may vary depending on environment and equipment.
Expansion Slots
CPU:
- 1 x PCI Express x16 slot (PCIEX16)
- AMD Ryzen™ 9000 / 7000: PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series – Phoenix 1: PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series – Phoenix 2: PCIe 4.0 x4 mode
- The PCIEX16 slot supports either a graphics card or an NVMe SSD. If only one graphics card is used, install it in PCIEX16.
Chipset:
- 3 x PCI Express x16 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), PCIe 3.0, running at x1
Storage Interface
M.2 Slots:
- M2A_CPU (CPU integrated, Socket 3, M key, 22110/2280)
- Ryzen™ 9000 / 7000: PCIe 5.0 x4/x2 SSDs
- Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2 SSDs
-
Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2 SSDs
-
M2B_CPU (CPU integrated, Socket 3, M key, 22110/2280)
- Ryzen™ 9000: PCIe 4.0 x4/x2 SSDs
- Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2 SSDs
-
Ryzen™ 8000 Phoenix 2: PCIe 4.0 x2 SSDs
-
M2C_SB (Chipset integrated, Socket 3, M key, 22110/2280)
- PCIe 4.0 x2 SSDs
SATA:
- 4 x SATA 6Gb/s connectors
RAID Support:
- NVMe SSDs: RAID 0, 1, 5*, 10
- RAID 5 only on AMD Ryzen™ 9000 Series Processors
- SATA devices: RAID 0, 1, 10
USB
CPU:
- Rear I/O: 1 x USB Type-C® (USB 3.2 Gen 1)
- Rear I/O: 2 x USB 3.2 Gen 2 Type-A (red)
Chipset:
- Internal: 1 x USB Type-C® header (USB 3.2 Gen 1)
- Rear I/O: 2 x USB 3.2 Gen 1 ports
- Internal: 2 x USB 3.2 Gen 1 ports via header
- Rear I/O: 4 x USB 2.0/1.1 ports
Chipset + USB 2.0 Hub:
- Internal: 4 x USB 2.0/1.1 ports via headers
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header (USB 3.2 Gen 1)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper

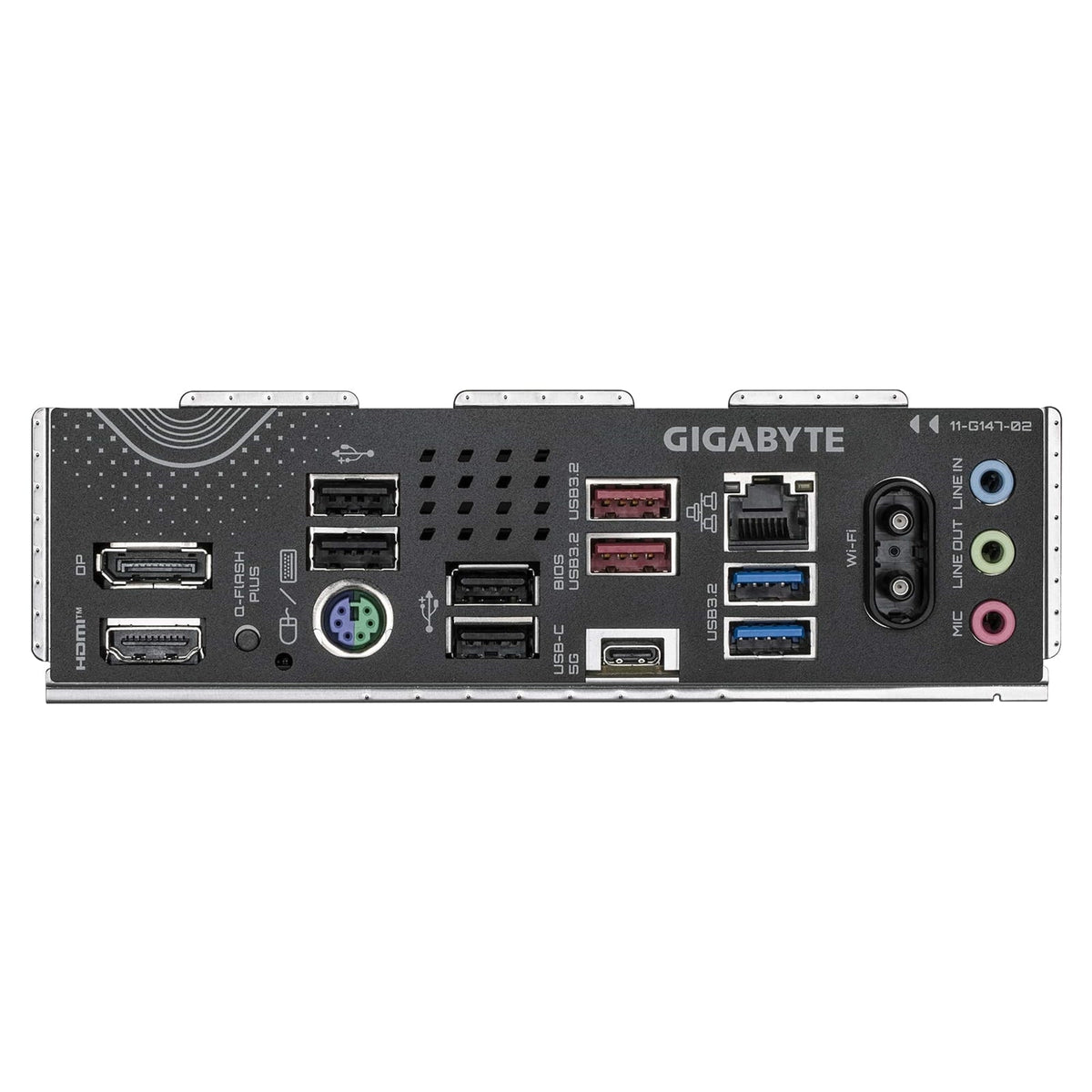

Back Panel Connectors
- 1 x DisplayPort*
- 1 x HDMI port*
- 1 x Q-Flash Plus button
- 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 1 x USB Type-C® port (USB 3.2 Gen 1)
- 1 x RJ-45 LAN port
- 2 x USB 3.2 Gen 1 ports
- 2 x antenna connectors (2T2R)
- 3 x audio jacks
*Actual display support may vary by CPU.
I/O Controller
- iTE® I/O Controller Chip
Hardware Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control*
*Support for fan/pump speed control depends on the installed fan/pump.
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)*
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
*Available applications and functions in GCC may vary by motherboard model and specifications.
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- ATX Form Factor
- Dimensions: 30.5 cm x 24.4 cm
