Gigabyte B760M GAMING X WIFI6E GEN 5 INTEL Socket Motherboard
$184.00
Gigabyte B760M GAMING X WIFI6E (PCIe 5.0, Wi‑Fi 6E, Gen5-Ready)
Experience next-generation performance and connectivity with the GIGABYTE B760M GAMING X WIFI6E motherboard, engineered for PCIe Gen5 graphics, high-speed storage, and advanced networking.
PCIe Gen5 Performance
- PCIe 5.0 x16 slot for graphics, doubling bandwidth over PCIe 4.0 (from 16 GT/s to 32 GT/s per lane)
- Optimized for high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement
- Designed to deliver boosted PCIe Gen5 performance on the existing Intel LGA1700 platform
Advanced Thermal Design
- Fully covered thermal design for improved heat dissipation
- High-coverage MOSFET and integrated molding heatsinks enhance thermal efficiency with better airflow and heat exchange
- Smart Fan 6 with:
- Multiple temperature sensors
- Hybrid fan headers with FAN STOP
DIY-Friendly & Durable
- Hassle-free assembly with user-oriented design for a smooth DIY build
- Built on GIGABYTE Ultra Durable technology, focusing on longevity and reliability
- PCIe EZ-Latch: PCIe 5.0 x16 slot with quick release design
- PCIe UD Slot: SMD PCIe 5.0 armor for enhanced graphics card support
- Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card
Power & Performance
- Optimal power design for maximum Turbo Boost and overclocking performance
- Hybrid 8+1+1 phases VRM solution for stable power delivery
Memory
- Dual Channel DDR5, 4 x DIMM slots, up to 256 GB (64 GB per DIMM)
- Support for:
- DDR5 5600/5200/4800/4400 MT/s (14th & 13th Gen Intel Core i9/i7)
- DDR5 4800/4400 MT/s (13th Gen Intel Core i5/i3 & 12th Gen Intel Core, Pentium Gold, Celeron)
- ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)
- Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Extreme Memory Profile (XMP) memory modules
(Supported memory types, speeds, and DRAM count depend on CPU and configuration; see GIGABYTE’s Memory Support List.)
All-Round Connectivity
- Fast Networks
- Realtek 2.5GbE LAN
- Intel Wi‑Fi 6E AX210 (2.4/5/6 GHz, 11ax 160 MHz support)
- Bluetooth 5.3
- WIFI EZ-Plug: Quick and easy Wi‑Fi antenna installation
-
WIFI Compass: Auto-detects best antenna position for strongest signal
-
Extended Connectivity
- Front USB Type‑C® 10 Gb/s (USB 3.2 Gen 2)
-
Display output via HDMI and DisplayPort
-
Next Generation Storage
- 2 x PCIe 4.0 x4 M.2 connectors
- 4 x SATA 6 Gb/s connectors
- RAID 0/1/5/10 support for SATA storage
Personalization & Software
- Customizable lighting effects and motherboard controls via GIGABYTE software
- Support for GIGABYTE Control Center (GCC)
- Includes Norton Internet Security (OEM version) and LAN bandwidth management software
Key Features (Summary)
- PCIe Gen5 Performance – Perfect Sync to Win
- Supports Intel Core 14th / 13th / 12th Gen processors
- Efficient Thermal – VRM Thermal Armor Advanced & M.2 Thermal Guard
- Wi‑Fi EZ-Plug & Wi‑Fi Compass
- PCIe EZ-Latch & PCIe UD Slot
- Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR5, 4 x DIMMs with XMP support
- 2.5GbE LAN & Wi‑Fi 6E 802.11ax
- Front USB‑C 10 Gb/s, DP, HDMI
- 2 x PCIe 4.0 x4 M.2
- Smart Fan 6
- Q‑Flash Plus
Specifications
CPU
| Feature | Details |
|---|---|
| Socket | LGA1700 |
| Supported CPUs | 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors |
| L3 Cache | Varies with CPU |
| Chipset | Intel B760 Express Chipset |
Memory
| Feature | Details |
|---|---|
| Architecture | Dual channel DDR5 |
| Slots | 4 x DDR5 DIMM, up to 256 GB (64 GB per DIMM) |
| Supported Speeds (14th/13th Gen Core i9/i7) | DDR5 5600/5200/4800/4400 MT/s |
| Supported Speeds (13th Gen Core i5/i3 & 12th Gen Core/Pentium Gold/Celeron) | DDR5 4800/4400 MT/s |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP | Support for Extreme Memory Profile (XMP) |
Onboard Graphics
| Output | Max Resolution |
|---|---|
| HDMI | 4096 x 2160 @ 60 Hz |
| DisplayPort | 4096 x 2304 @ 60 Hz |
(Integrated graphics support depends on CPU.)
Audio
| Feature | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio | High Definition Audio, 2/4/5.1/7.1-channel |
LAN & Wireless
| Feature | Details |
|---|---|
| LAN | Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Intel Wi‑Fi 6E AX210 (a/b/g/n/ac/ax, 2.4/5/6 GHz) |
| Bluetooth | Bluetooth 5.3 |
| Note | Actual data rate may vary depending on environment and equipment |
Expansion Slots
| Source | Slot | Standard | Lanes |
|---|---|---|---|
| CPU | 1 x PCIe x16 (PCIEX16) | PCIe 5.0 | x16 |
| Chipset | 1 x PCIe x16 (PCIEX4) | PCIe 3.0 | x4 |
Storage
| Source | Connector | Type | Interface |
|---|---|---|---|
| CPU | 1 x M.2 (M2A_CPU) | Socket 3, M key, 2280 | PCIe 4.0 x4/x2 |
| Chipset | 1 x M.2 (M2P_SB) | Socket 3, M key, 22110/2280 | PCIe 4.0 x4/x2 |
| Chipset | 4 x SATA | SATA 6 Gb/s | RAID 0/1/5/10 for SATA |
USB
| Location / Controller | Ports |
|---|---|
| Chipset (internal) | 1 x USB Type‑C (USB 3.2 Gen 2) via header |
| Chipset | 5 x USB 3.2 Gen 1 (3 rear, 2 via header) |
| Chipset | 1 x USB 2.0/1.1 (rear) |
| Chipset + 2 x USB 2.0 Hubs | 8 x USB 2.0/1.1 (4 rear, 4 via headers) |
Internal I/O Connectors
- 1 x 24‑pin ATX main power connector
- 1 x 8‑pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 3 x addressable LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6 Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type‑C header (USB 3.2 Gen 2)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt add-in card connectors
- 1 x Trusted Platform Module header (GC‑TPM2.0 SPI series only)
- 1 x serial port header
- 1 x Q‑Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper

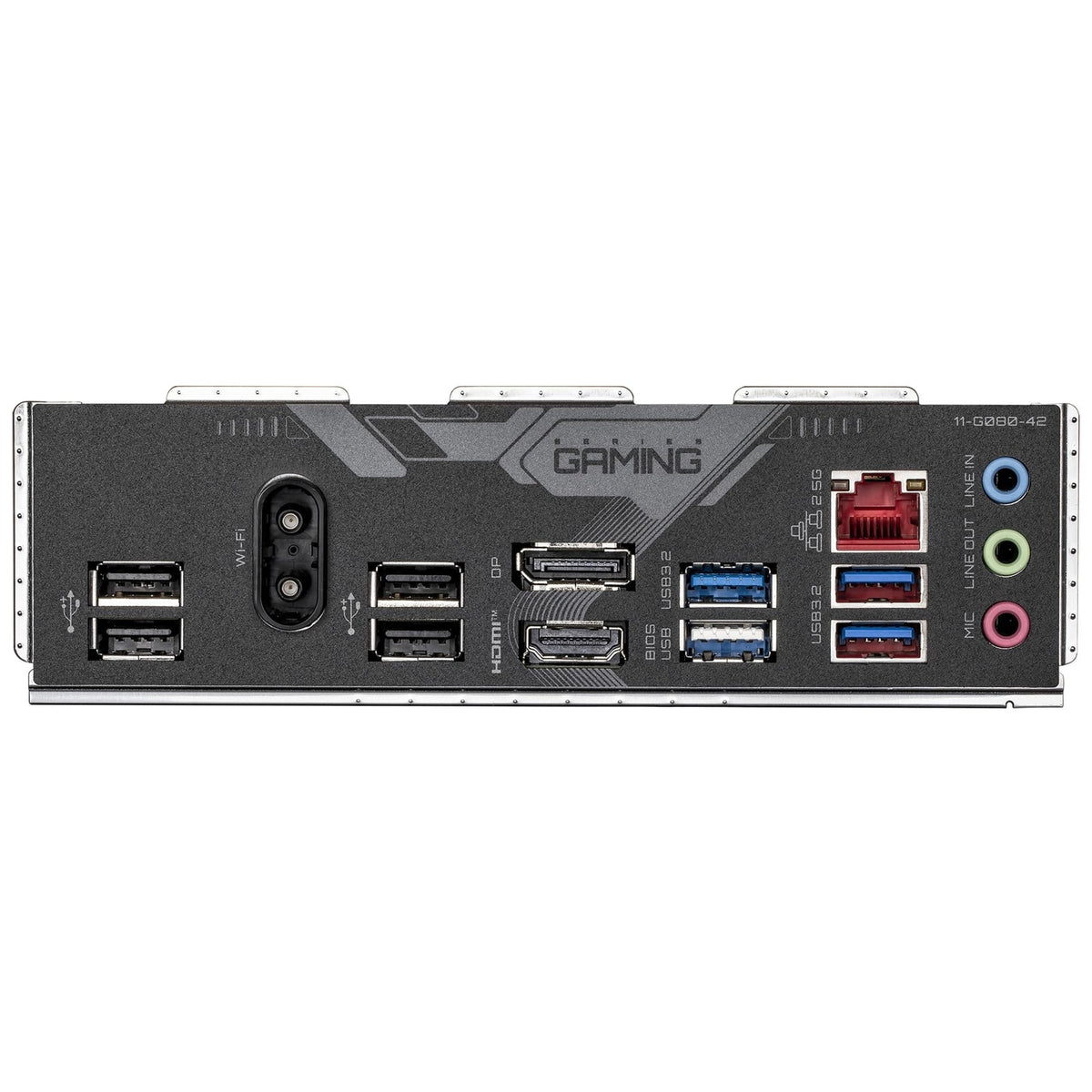

Back Panel Connectors
- 3 x USB 3.2 Gen 1 ports
- 5 x USB 2.0/1.1 ports
- 2 x antenna connectors (2T2R)
- 1 x HDMI port
- 1 x DisplayPort
- 1 x RJ‑45 LAN port
- 3 x audio jacks
I/O Controller & Monitoring
- iTE I/O controller chip
- Voltage, temperature, fan speed, and water cooling flow rate detection
- Fan fail warning and fan speed control
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q‑Flash & Q‑Flash Plus
- Support for Smart Backup
Operating System
- Windows 11 64‑bit
- Windows 10 64‑bit
Form Factor
- Micro ATX
- Dimensions: 24.4 cm x 24.4 cm
