Gigabyte B760M AORUS ELITE WIFI6E GEN5 Intel 1700 Socket Motherboard
$215.00
Gigabyte B760M AORUS ELITE WIFI6E Gen5 Motherboard
Micro ATX LGA1700 motherboard with PCIe 5.0, DDR5, Wi-Fi 6E, and advanced thermal design.
PCIe Gen5 Performance
Express to PCIe 5 performance with the new GIGABYTE B760 platform:
- PCIe 5.0 x16 slot doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane
- Ideal for high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement
- PCIe UD Slot with SMD PCIe 5.0 Armor for enhanced graphics card support
Efficient Cooling & Thermal Design
Stay cool under load with a fully covered thermal solution:
- High-coverage MOSFET and integrated molding heatsinks
- Improved thermal efficiency through better airflow and heat exchange
- VRM Thermal Armor Advanced & M.2 Thermal Guard
- Smart Fan 6 with multiple temperature sensors, hybrid fan headers, and FAN STOP
DIY-Friendly Design
Built for hassle-free assembly and the ultimate DIY experience:
- EZ-Latch: PCIe 5.0 x16 slot with quick release design
- EZ-Latch Plus: M.2 connectors with quick release and screwless design
- Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card
- Onboard Q-Flash Plus button and clear CMOS jumper
Ultra Durable & Optimized Power
Born from GIGABYTE Ultra Durable technology for longevity and reliability:
- Twin 12*+1+1 phases hybrid VRM solution
- Designed for maximum Turbo Boost and overclocking performance
- Engineered to endure and excel in demanding gaming scenarios
High-Speed Networking & Wireless
Fast, stable connectivity for gaming and productivity:
- Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
- Intel Wi-Fi 6E AX210 with 2.4/5/6 GHz support
- Bluetooth 5.3
- WIFI EZ-Plug for quick, easy Wi-Fi antenna installation
- WIFI Compass for automatic detection of the best antenna position
Customization & Software
Tailor your system to your style and workflow:
- Customizable lighting effects with outstanding aesthetics
- Several useful and intuitive software tools to control motherboard functions
- Support for GIGABYTE Control Center (GCC)
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Extended Connectivity & Storage
Comprehensive connectivity for peripherals and storage:
- Rear USB-C 20Gb/s and front USB-C 10Gb/s
- DisplayPort and HDMI video outputs
- Next-generation storage with 2 x PCIe 4.0 x4 M.2 connectors
- RAID 0/1/5/10 support for SATA drives
Key Features Summary
- PCIe Gen5 performance: perfect sync to win
- Supports Intel Core 14th / 13th / 12th Gen processors
- Twin 12*+1+1 phases hybrid VRM solution
- Dual channel DDR5 (4 DIMMs) with XMP support
- Fast networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Smart Fan 6 cooling control
- High-res audio with ALC1220 and high-end audio capacitors
- Micro ATX form factor: 24.4 cm x 24.4 cm
Specifications
CPU
| Feature | Details |
|---|---|
| Socket | LGA1700 |
| CPU Support | 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Cache | L3 cache varies with CPU |
Chipset
| Feature | Details |
|---|---|
| Chipset | Intel B760 Express Chipset |
Memory
| Feature | Details |
|---|---|
| Supported CPUs & Speeds | 14th & 13th Gen Intel Core i9/i7: DDR5 5600/5200/4800/4400 MT/s; 13th Gen Intel Core i5/i3 & 12th Gen Intel Core, Pentium Gold, Celeron: DDR5 4800/4400 MT/s |
| Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP | Support for Extreme Memory Profile (XMP) |
Onboard Graphics
| Feature | Details |
|---|---|
| Integrated | Intel HD Graphics (CPU dependent) |
| HDMI | 1 x HDMI port, max 4096x2160 @ 60 Hz |
| DisplayPort | 1 x DisplayPort, max 4096x2304 @ 60 Hz |
Audio
| Feature | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Channels | High Definition Audio, 2/4/5.1/7.1-channel |
| Extras | ALC1220 & high-end audio capacitors |
LAN
| Feature | Details |
|---|---|
| Controller | Realtek 2.5GbE LAN chip |
| Speeds | 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication
| Feature | Details |
|---|---|
| Module | Intel Wi-Fi 6E AX210 |
| Wi-Fi Standards | a/b/g/n/ac/ax |
| Bands | 2.4/5/6 GHz carrier frequency bands |
| Bluetooth | Bluetooth 5.3 |
| Note | Support for 11ax 160 MHz (actual data rate may vary by environment and equipment) |
Expansion Slots
| Source | Slot | Standard | Lane Configuration |
|---|---|---|---|
| CPU | 1 x PCI Express x16 (PCIEX16) | PCIe 5.0 | x16 |
| Chipset | 1 x PCI Express x16 (PCIEX4) | PCIe 4.0 | x4 |
Storage
| Controller | Connector | Type | Notes |
|---|---|---|---|
| CPU | 1 x M.2 (M2A_CPU) | Socket 3, M key, type 2280 | PCIe 4.0 x4/x2 SSD support |
| Chipset | 1 x M.2 (M2P_SB) | Socket 3, M key, type 22110/2280 | PCIe 4.0 x4/x2 SSD support |
| Chipset | 4 x SATA 6Gb/s | — | RAID 0/1/5/10 support for SATA storage devices |
USB
| Source | Ports | Type & Speed |
|---|---|---|
| Chipset | 1 x rear USB Type-C | USB 3.2 Gen 2x2 |
| Chipset | 1 x internal USB Type-C header | USB 3.2 Gen 2 |
| Chipset | 1 x rear USB Type-A (red) | USB 3.2 Gen 2 |
| Chipset | 1 x rear port | USB 3.2 Gen 1 |
| Chipset | 4 x internal ports | USB 2.0/1.1 via headers |
| Chipset + USB 3.2 Gen 1 Hub | 4 x ports (2 rear, 2 internal) | USB 3.2 Gen 1 |
| Chipset + USB 2.0 Hub | 4 x rear ports | USB 2.0/1.1 |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header (USB 3.2 Gen 2)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt add-in card connectors
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper

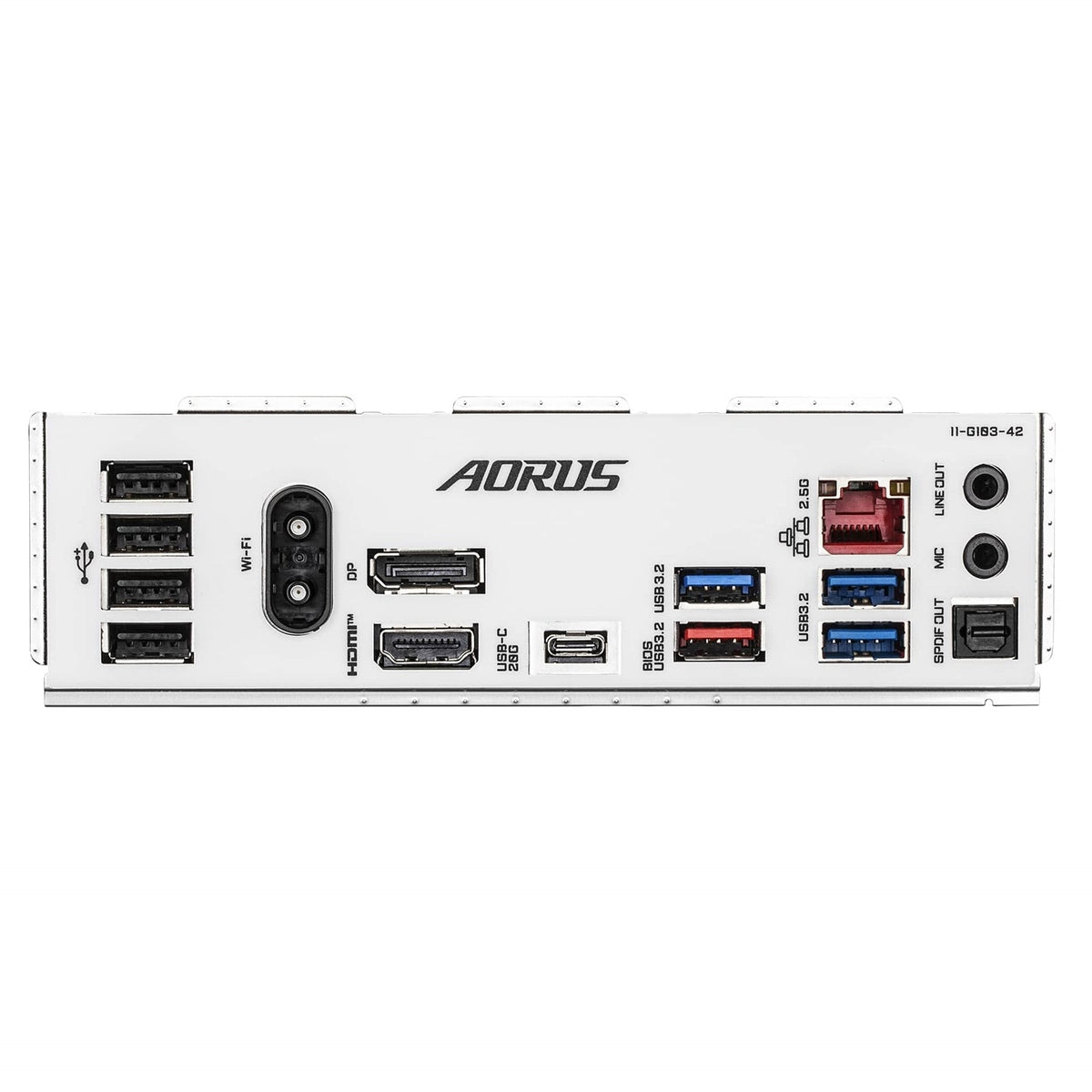

Back Panel Connectors
- 2 x antenna connectors (2T2R)
- 1 x USB Type-C port (USB 3.2 Gen 2x2)
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x HDMI port (Note)
- 1 x DisplayPort (Note)
- 1 x RJ-45 LAN port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
I/O Controller & Monitoring
| Feature | Details |
|---|---|
| Controller | iTE I/O Controller chip |
| Monitoring | Voltage, temperature, fan speed, water cooling flow rate |
| Alerts & Control | Fan fail warning, fan speed control |
BIOS
| Feature | Details |
|---|---|
| ROM | 1 x 256 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Utilities | Support for Q-Flash, Q-Flash Plus |
Unique Features & Software
- Support for GIGABYTE Control Center (GCC)
- Q-Flash and Q-Flash Plus support
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor
| Feature | Details |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 24.4 cm x 24.4 cm |
