Gigabyte A620M GAMING X AMD AM5 Socket Motherboard

GIGABYTE A620 Micro ATX Motherboard – AM5, DDR5, PCIe 4.0

Experience optimized gaming and application performance with the GIGABYTE A620 motherboard. Designed to keep pace with fast-evolving technology, this AM5 platform delivers advanced power design, next‑generation storage, and high‑speed connectivity for modern gaming PCs.

Unparalleled Performance

• AMD Socket AM5 Support
• Compatible with AMD Ryzen™ 7000 Series Processors

• AMD A620 chipset

• PCIe 4.0 Ready

• Designed for PCIe 4.0 devices, which are expected to offer up to twice the bandwidth of PCIe 3.0 devices

• Low impedance PCB design helps maintain signal integrity and maximize performance

• Advanced DDR5 Memory Support

• Shielded memory routing under a PCB inner layer with a large ground layer to help protect from external interference
• Supports DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets, up to 192 GB (48 GB per DIMM)
• Dual channel architecture
• Supports non‑ECC Un‑buffered DIMM 1Rx8/2Rx8/1Rx16 modules

EXPO & XMP Memory Optimization

• Dual Overclocking Profile Support
• Supports AMD EXtended Profiles for Overclocking (AMD EXPO™)
• Supports Intel® Extreme Memory Profile (XMP) memory modules

• Automatically detects profile formats in SPD; users can enable a profile from the BIOS to easily reach overclocked memory performance

• DDR5 Auto Booster

• Boosts native DDR5 frequency to 5000 MHz under heavy system load with a single click

• AMD EXPO™ & Intel® XMP 3.0 User Profile

• Define and create your own SPD profile for Native, AMD EXPO™, and Intel® XMP 3.0 memory modules
• One user‑defined profile can be saved and loaded locally or from/to external storage
• Features include:
  • One empty SPD profile available for user definition and transfer to another system
  • Quick memory performance simulation based on user‑defined clock and timing parameters
  • Profile save and load for sharing memory parameters online

Outstanding Thermal Design & Smart Fan 6

GIGABYTE motherboards focus on thermal optimization to help ensure CPU, chipset, and SSD stability and low temperatures under full load and gaming workloads.

Smart Fan 6 Cooling Features

• High Current Support
• Fan headers support PWM/DC fans and water cooling pumps

• Up to 24W (12V x 2A) per fan header with over‑current protection

• Precision Control

• Multiple temperature and fan speed control points for accurate fan curve tuning

• Dual Curve Mode

• Slope mode: traditional linear fan speed curve

• Stair mode: non‑linear curve where fan speed remains constant between specified temperature intervals

• Fan Stop

• Fans can stop completely below a user‑specified temperature

Smart Fan 6 BIOS Interface

1. Enhanced Fan Curve UI
2. Control points increased from 5 to 7

3. Larger fan speed graph for more precise tuning

4. Slope/Stair Graph Modes

5. Easily switch between Slope and Stair fan curve modes

6. Manual Input

7. Advanced users can set fan speeds manually for fine‑tuned control

8. EZ Tuning

9. Place 4 EZ Tuning points (temperature/fan speed), and Smart Fan 6 automatically generates a fan curve

10. Fan Curve Profiles

11. Save fan profiles in BIOS ROM; settings are retained after BIOS updates

High-Speed Connectivity & Networking

• GbE LAN with Bandwidth Management
• Integrated network bandwidth management application

• Helps improve latency and maintain low ping times in crowded LAN environments

• USB Type‑C® & USB 3.2

• Front and rear USB 3.2 Gen 1 Type‑C® ports with speeds up to 5 Gbps
• Backward compatible with USB 2.0
• Available via both reversible USB Type‑C™ and traditional USB Type‑A connectors

Enhanced Audio Experience

• High-End Audio Capacitors

• Designed to deliver high resolution, high fidelity audio for more realistic sound effects

• Audio Noise Guard

• PCB‑level separation of sensitive analog audio components from potential noise sources

User-Friendly BIOS & Software

BIOS Ease of Use

• Easy Mode

• Displays key hardware information (CPU clock, memory, storage, fan) on a single page

• My Favorites

• Add frequently used items to a favorites menu for quick access

• Storage Information

• View details for SATA, PCIe, and M.2 interfaces

• Changelog

• Lists all setting changes before saving and exiting BIOS

• Intuitive Load Line Curve

• Graphically displays load line calibration settings

GIGABYTE Control Center (GCC)

• Unified software platform for all supported GIGABYTE products
• Intuitive, redesigned user interface
• Modularized control for installed hardware only
• Auto‑update function to keep the system and future products supported

DIY-Friendly Features

• PCIe EZ‑Latch

• Easily unlock the PCIe slot latch when removing a graphics card

• Q‑Flash Plus

• Update the BIOS without installing CPU, memory, or graphics card

Specifications

General

Memory

Onboard Graphics

Audio

LAN

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24‑pin ATX main power connector
• 1 x 8‑pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type‑C® header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (for GC‑TPM2.0 SPI / GC‑TPM2.0 SPI 2.0 module only)
• 1 x Clear CMOS jumper

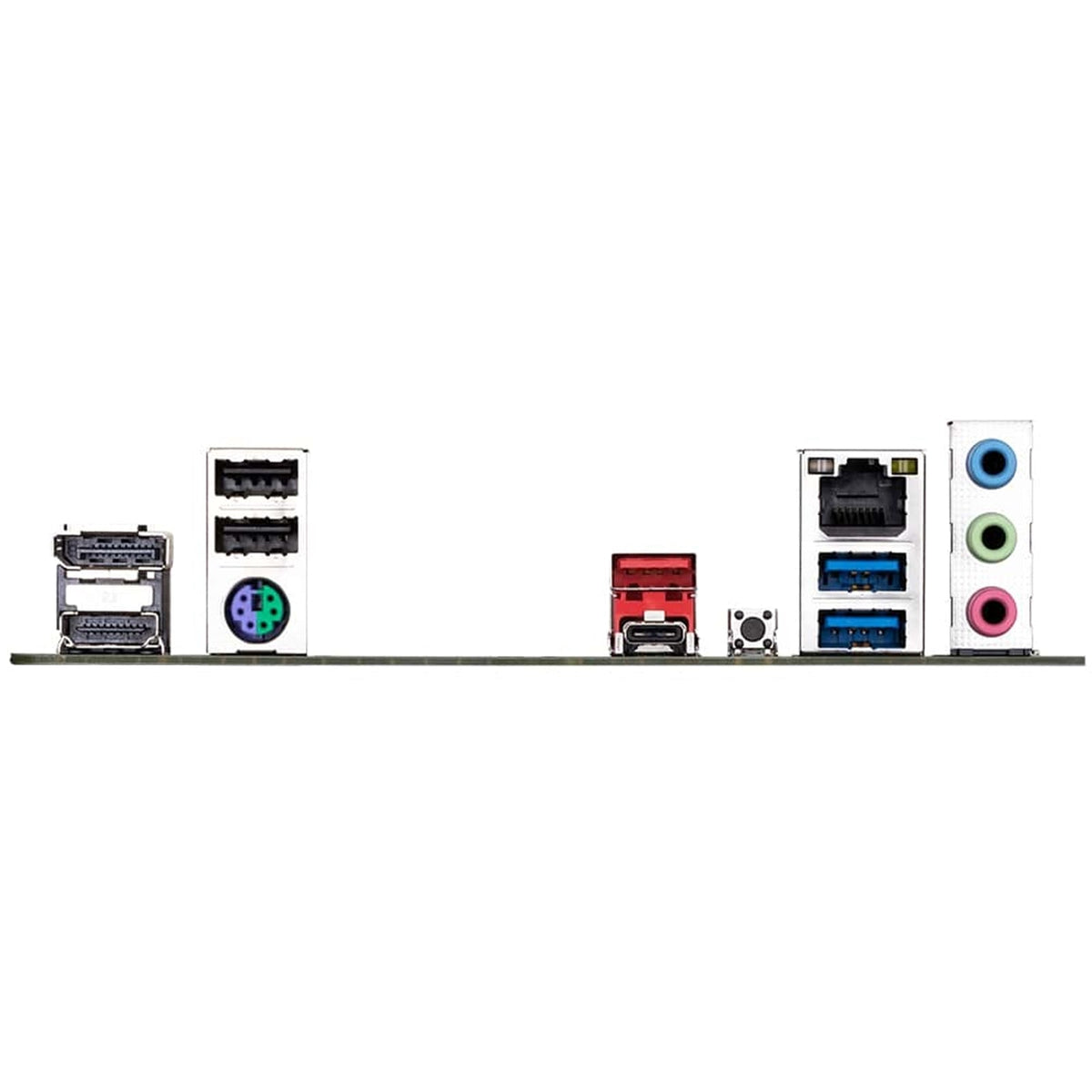

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 1 x USB Type‑C® port (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 2 Type‑A port (red)
• 2 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x HDMI port
• 1 x DisplayPort
• 1 x Q‑Flash Plus button
• 1 x RJ‑45 LAN port
• 3 x audio jacks

I/O Controller & Monitoring

• iTE® I/O Controller chip
• Voltage, temperature, and fan speed detection
• Water cooling flow rate detection
• Fan fail warning and fan speed control

BIOS

• 1 x 256 Mbit flash
• Licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q‑Flash
• Support for Q‑Flash Plus

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64‑bit
• Windows 10 64‑bit
