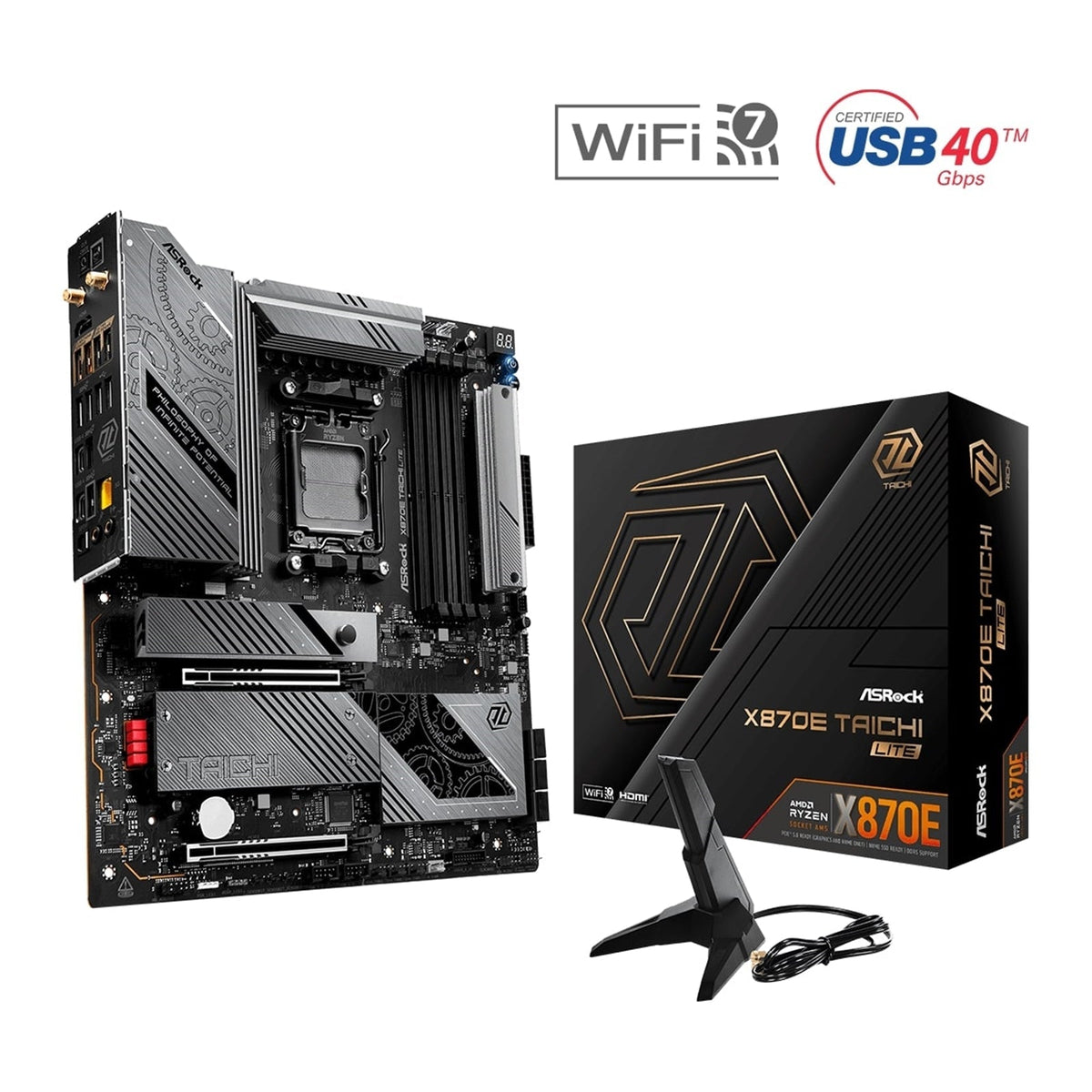

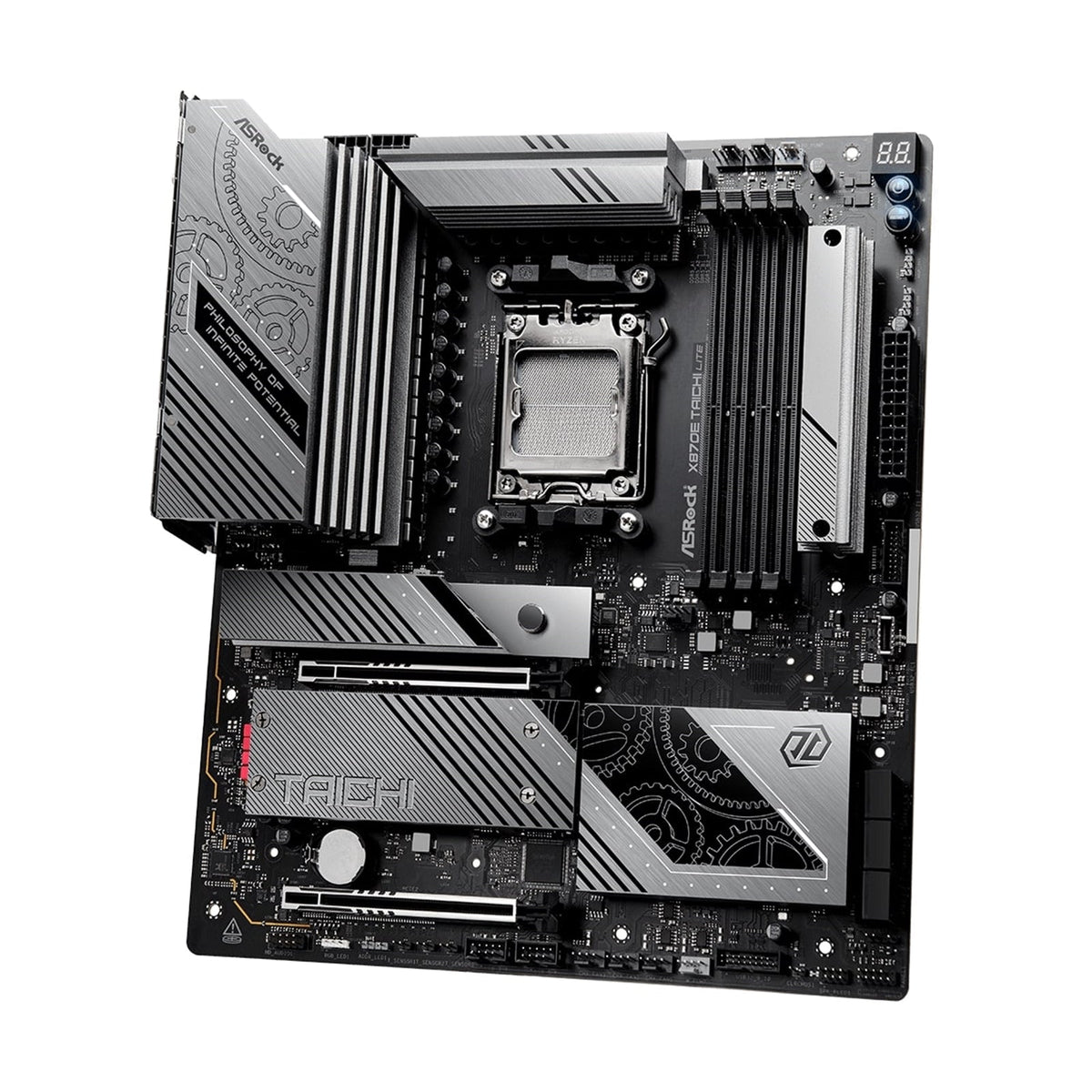

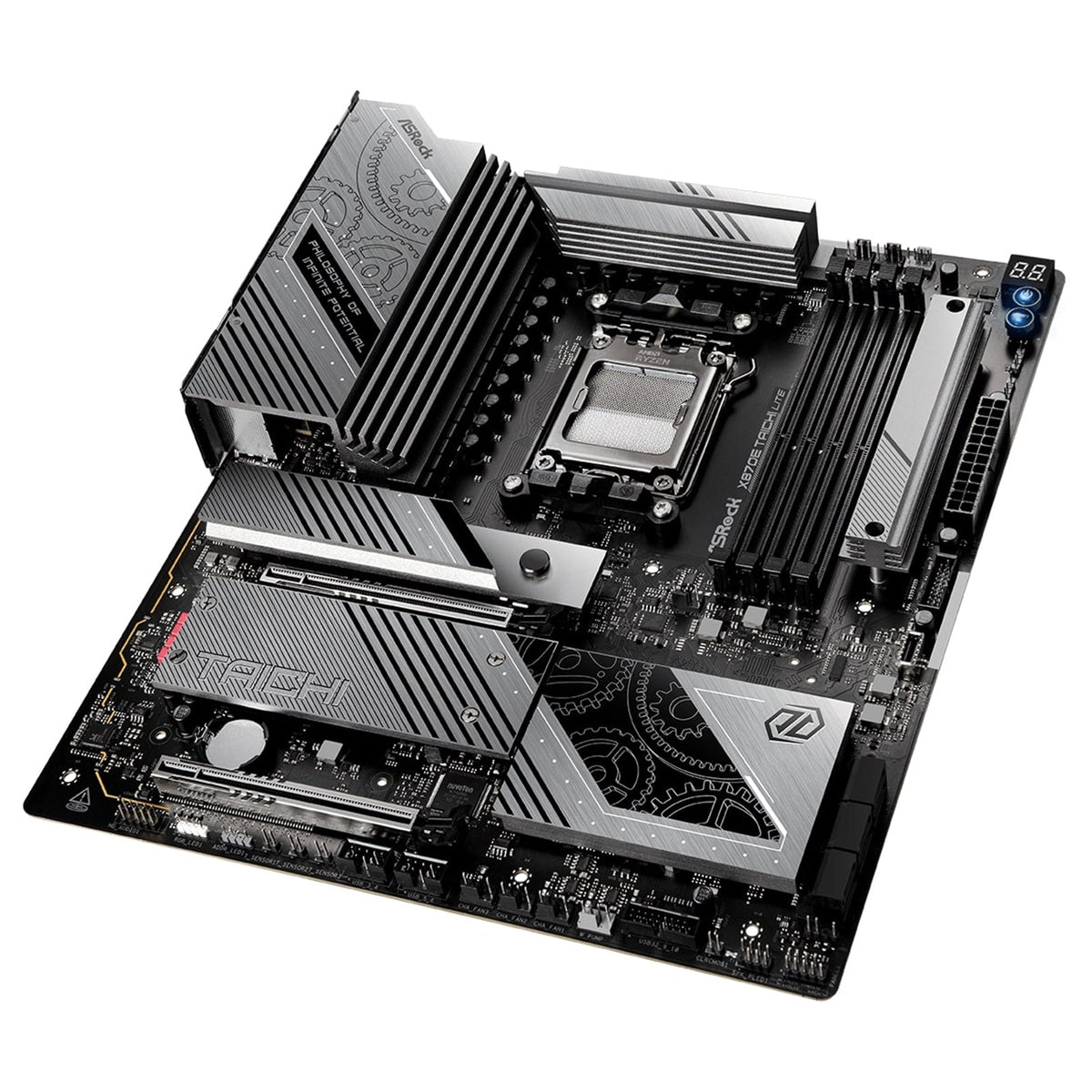

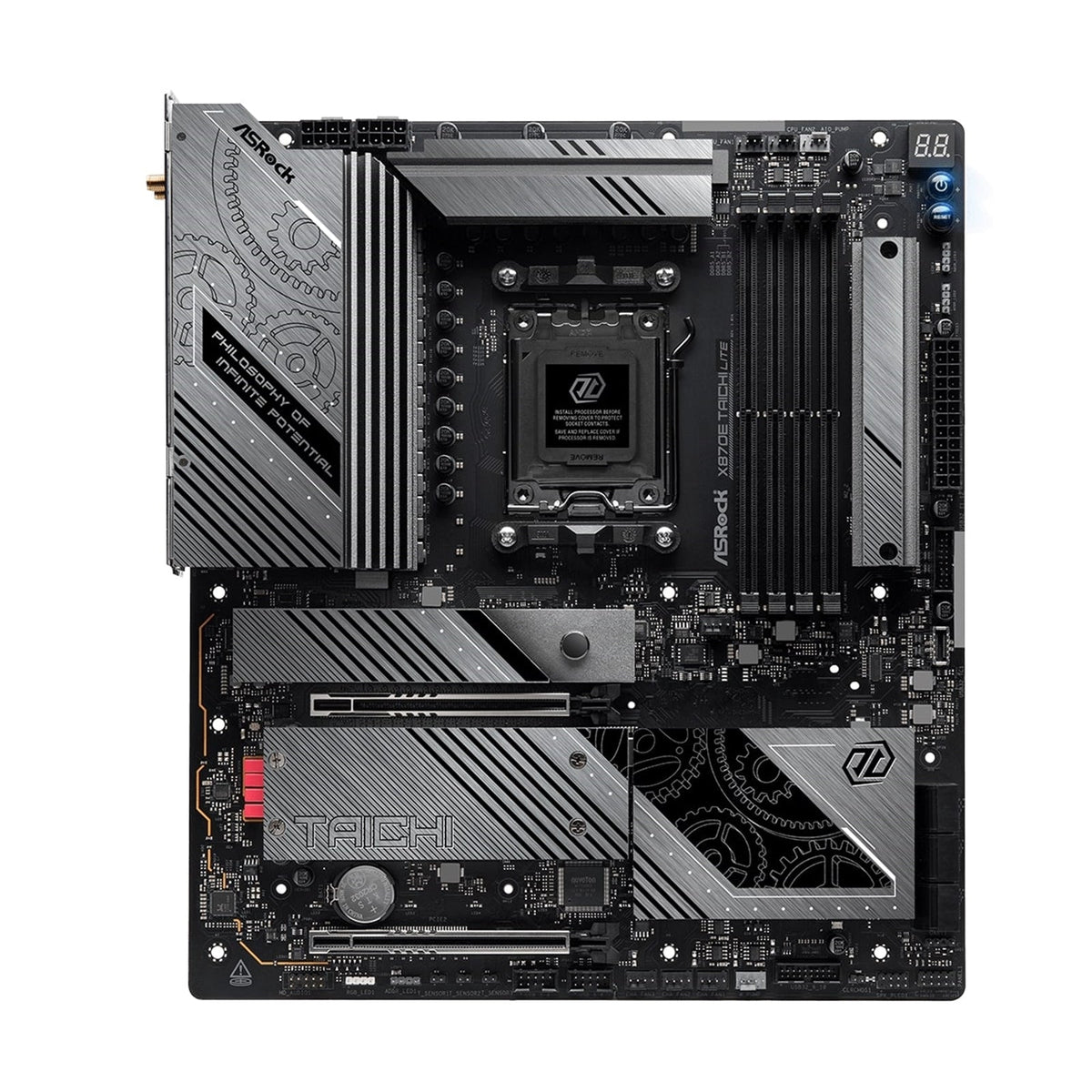

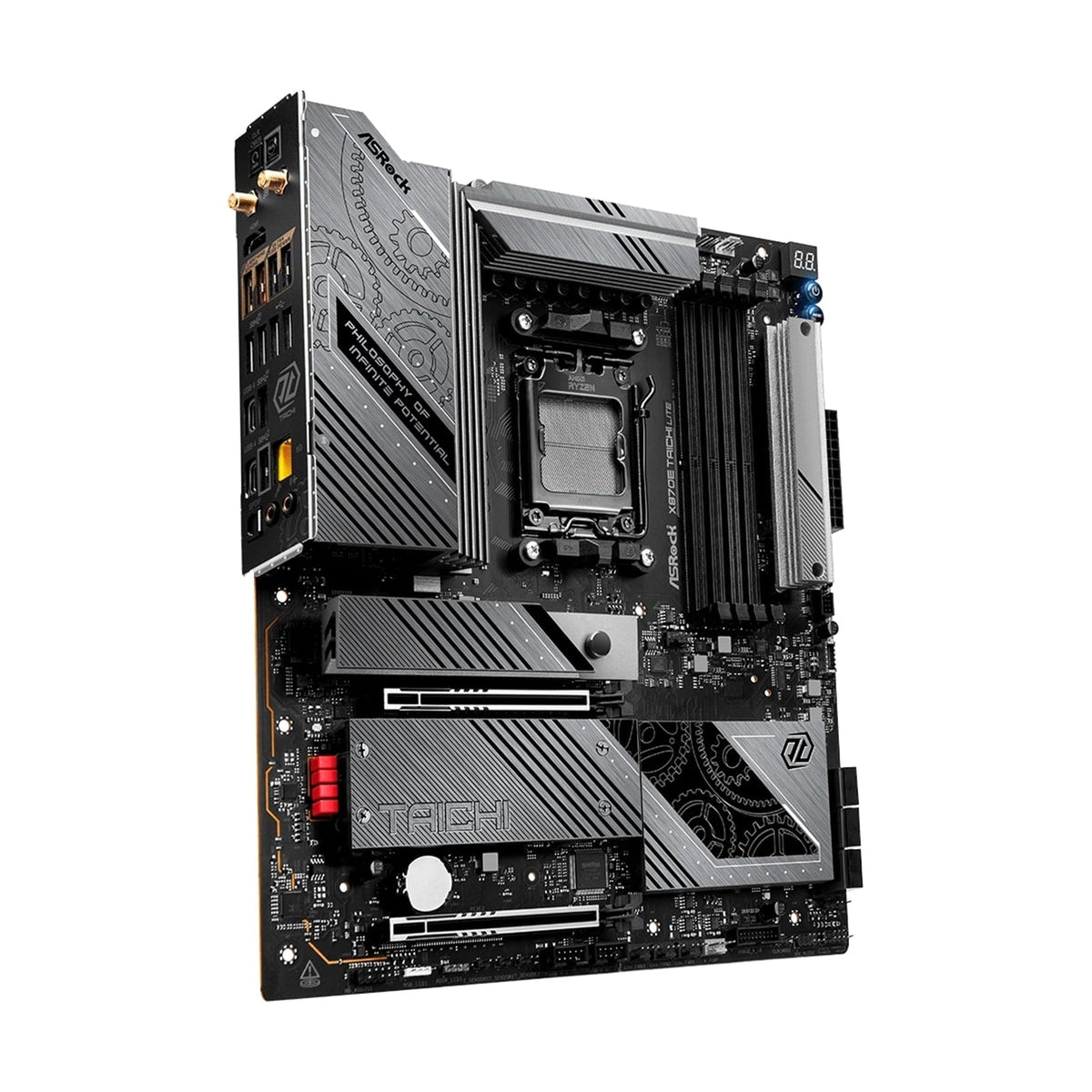

ASRock X870E TAICHI LITE AMD AM5 Socket Motherboard

ASRock X870E Taichi Lite Motherboard

The X870E Taichi Lite delivers top-tier performance in a streamlined, functionality-focused design. Built on the Taichi philosophy of infinite potential, this motherboard is crafted to handle every task with style—shapeless, formless, and versatile for any situation.

Key Features

Superb Productivity & Performance

• PCIe Gen5 Support (Graphics & M.2) for next-generation GPUs and SSDs
• Dual Channel DDR5 memory support
• USB4 Type-C Ports (40 Gb/s) for ultra-fast connectivity
• 24+2+1 Power Phase Design with 110A SPS for VCore+SOC and enlarged heatsink armor
• Exclusive 20K Black Capacitors (1000uF) for extended durability and enhanced capacitance
• ASRock Hyper BCLK Engine support

Rock-Solid Durability

• Server-Grade Low-Loss PCB for improved signal integrity
• 8-Layer PCB with 2oz Copper Inner Layers for lower temperature and higher efficiency
• Hi-Density Power Connectors (CPU 8-pin and ATX 24-pin) for higher current and stability
• 20K Long-Lasting Black Caps (high-quality conductive polymer capacitors)
• Flexible Integrated I/O Shield

Ultrafast Connectivity

• 5G LAN (Realtek RTL8126) with optimized 5 Gb/s LAN connector and EMI resistance
• Wi-Fi 7 (802.11be) 2x2 Module with Bluetooth 5.4
• USB4 Type-C (40 Gb/s) on the rear panel
• Front Panel USB 3.2 Gen2x2 Type-C Header (20 Gb/s)

Advanced Power & PCB Design

• 24+2+1 Power Phase Design
  Sturdy power components and smooth CPU power delivery, supporting enhanced performance and overclocking at lower temperatures.

• SPS (Smart Power Stage) Dr.MOS Design
  Optimized to monitor current and temperature per phase, delivering cleaner power and improved OC capability.

• Hi-Density Power Connectors
  Designed to withstand higher currents than traditional connectors, aiding system stability and lowering fire risk under heavy overclocking.

• Server-Grade Low-Loss PCB
  Improves signal integrity, supports PCIe 5.0 for graphics and M.2 SSDs, and increases memory overclocking potential.

• 8-Layer PCB with 2oz Copper
  Stable signal traces and power shapes, lower temperatures, higher energy efficiency, and long-term reliability.

Memory Performance

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+ (OC)
• Maximum system memory capacity: 256 GB
• Supports Intel XMP & AMD EXPO memory profiles

This board is built with high-quality materials to enable stable DDR5 overclocking via pre-tested profiles. Ensure your memory modules support Intel XMP/AMD EXPO for effortless, affordable, and satisfying overclocking.

Storage & Expansion

PCIe Slots

• CPU:
• 2 x PCIe 5.0 x16 (PCIE1 & PCIE2), support x16 or x8/x8 modes
• Supports AMD CrossFire

M.2 & SATA

• CPU:

• 1 x Blazing M.2 (M2_1, Key M)

  • Type 2280, PCIe Gen5x4 (128 Gb/s)

• Chipset:

• 1 x Hyper M.2 (M2_2, Key M), Type 2280, PCIe Gen4x4 (64 Gb/s)
• 1 x Hyper M.2 (M2_3, Key M), Type 2280, PCIe Gen4x4 (64 Gb/s)
• 1 x Hyper M.2 (M2_4, Key M), Type 2280, PCIe Gen4x4 (64 Gb/s)
• 6 x SATA3 6.0 Gb/s connectors

RAID Support

• RAID 0, 1, 10 for SATA storage devices
• RAID 0, 1, 10 for M.2 NVMe storage devices

Next-Gen Storage & Cooling

• PCIe Gen5 Blazing M.2
  Supports the latest PCIe 5.0 standard, delivering twice the bandwidth of the previous generation and up to 128 GB/s transfer speeds for next-gen SSDs.

• PWM/DC Fan Support
  Fan headers auto-detect PWM/DC mode, enabling fine-tuned fan curves and quieter operation.

Networking & Wireless

Wired LAN

• 5 Gigabit LAN (10/100/1000/2500/5000 Mb/s)
• Optimized 5 Gb/s LAN connector with patent-pending design and superior EMI resistance for high-speed, stable networking.

Wi-Fi 7 & Bluetooth

• 802.11be 2x2 Wi-Fi 7 Module
• Supports 802.11a/b/g/n/ac/ax/axe/be
• 2.4 GHz / 5 GHz / 6 GHz bands
• 160 MHz channel bandwidth (6 GHz band)
• 1 antenna supporting 2T2R diversity
• Supports MU-MIMO
• Bluetooth 5.4

Enhanced VR & AR Experience

Wi-Fi 7 offers higher throughput, lower latency, and Multi-link Operation (MLO) for smoother, more immersive VR/AR and real-time interactive experiences.

Multi-Link Operation (MLO)

Enables simultaneous use of multiple bands and channels to boost speed and throughput while reducing latency.

New Wi-Fi Antenna Design

Engineered for high-bandwidth, low-latency applications and stable wireless connections.

USB & Connectivity

Rear USB

• CPU:
• 2 x USB4 Type-C (40 Gb/s)

• 2 x USB 3.2 Gen2 Type-A

• Chipset:

• 3 x USB 3.2 Gen2 Type-A (10 Gb/s)
• 3 x USB 3.2 Gen1 Type-A
• 2 x USB 2.0

USB32_12 are Lightning Gaming Ports.
USB32_34 supports Ultra USB Power.

Internal USB Headers

• 1 x USB 3.2 Gen2x2 Type-C Front Panel Header (20 Gb/s)
• 2 x USB 3.2 Gen1 Headers (support 4 x USB 3.2 Gen1 ports)
• 2 x USB 2.0 Headers (support 4 x USB 2.0 ports)

Display & Graphics

• CPU Support: AMD Socket AM5 Ryzen 9000, 8000, 7000 Series
• Chipset: AMD X870E
• Integrated AMD RDNA Graphics (actual support varies by CPU)

Video Outputs

• 1 x HDMI 2.1 TMDS/FRL 8G compatible
• Supports HDR, HDCP 2.3
• Max resolution: 4K @ 120 Hz
• 2 x USB4 (video output)
• Supports HDCP 2.3
• Max resolution: 8K @ 30 Hz

Audio

• Realtek ALC4082 5.1 CH HD Audio with Content Protection
• WIMA Audio Capacitors (rear outputs)
• ESS SABRE9219 DAC for rear audio (130 dB SNR)
• Individual PCB layers for left/right audio channels
• Direct Drive Technology for front headphone port (supports up to 600 Ohm headsets)
• Nahimic Audio software support

Rear panel includes:
- 1 x Optical SPDIF Out
- 1 x Line Out (Gold jack)
- 1 x Microphone In (Gold jack)

RGB Lighting

POLYCHROME RGB

• Onboard RGB and addressable RGB headers
• Connects to compatible LED strips, CPU fans, coolers, chassis, and other devices
• Synchronize lighting effects across Polychrome RGB Sync-certified accessories for fully customized lighting setups.

Headers:
- 1 x RGB LED Header
- 3 x Addressable LED Headers

Cooling & Power Connectors

• 2 x CPU Fan Connectors (4-pin, Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin, Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin, Smart Fan Speed Control)
• 1 x Water Pump Fan Connector (4-pin, Smart Fan Speed Control)
• 3 x Thermistor Cable Headers

Power

• 1 x 24-pin ATX Power Connector (Hi-Density)
• 2 x 8-pin 12V Power Connectors (Hi-Density)

Internal Headers & Controls

• 1 x Power LED and Speaker Header
• 1 x Front Panel Audio Connector (15µ Gold Audio Connector)
• 1 x Dr. Debug LED
• 1 x Power Button with LED
• 1 x Reset Button with LED

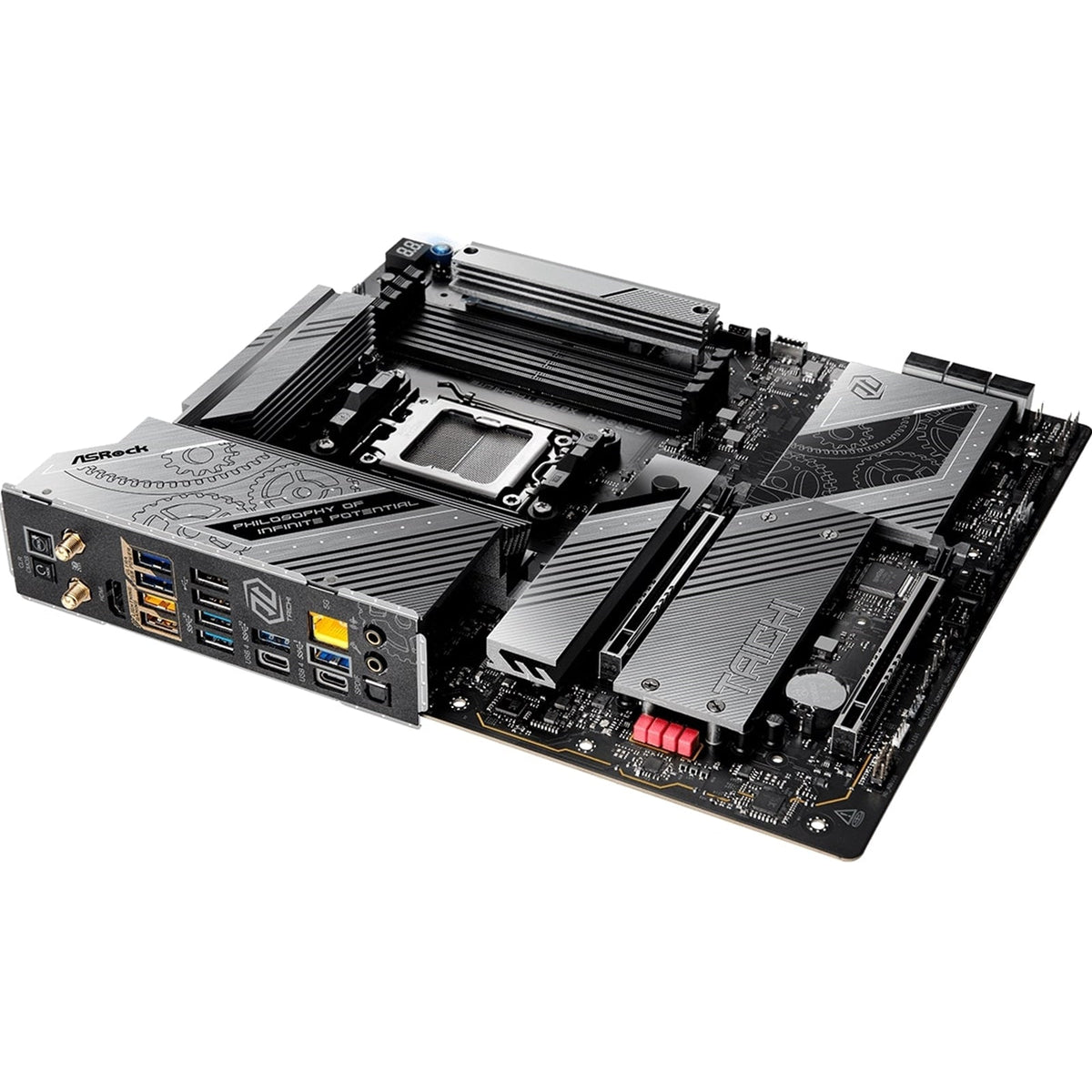

Rear Panel I/O

• 2 x Antenna Ports
• 1 x HDMI Port
• 2 x USB4 Type-C Ports (40 Gb/s)
• 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ‑45 5G LAN Port
• 1 x Optical SPDIF Out Port
• 1 x Clear CMOS Button
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold)
• 1 x Microphone Input Jack (Gold)

Software & UEFI

Included Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Polychrome SYNC
• ASRock XFast LAN

UEFI Features

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Included Accessories

• 4 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 1 x ARGB Splitter Cable
• 3 x Thermistor Cables

Technical Specifications

The ASRock X870E Taichi Lite combines a functionality-first design with powerful performance, advanced connectivity, and durable construction—ideal for enthusiasts seeking a high-end AM5 platform with PCIe 5.0, DDR5, Wi-Fi 7, and USB4 capabilities.
