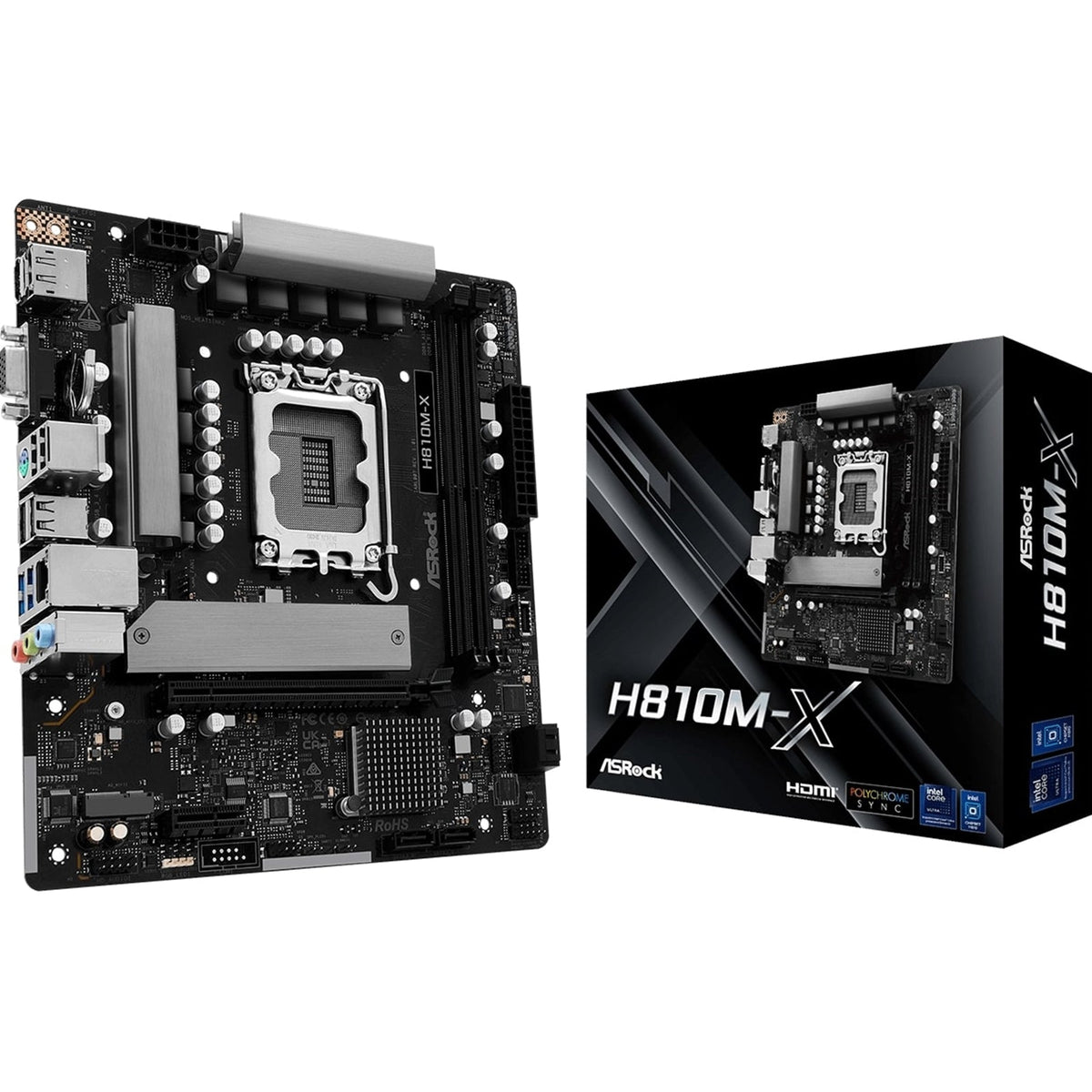

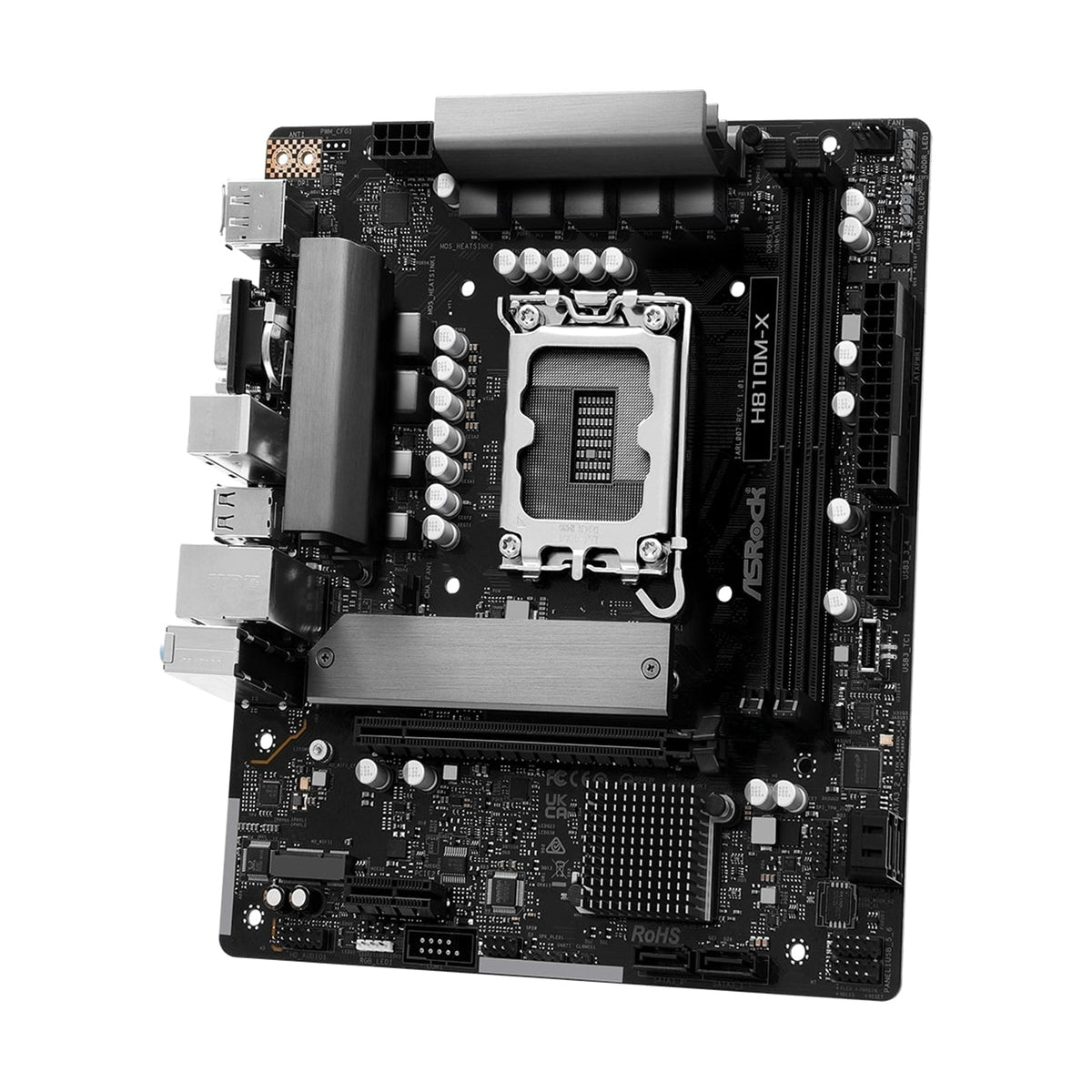

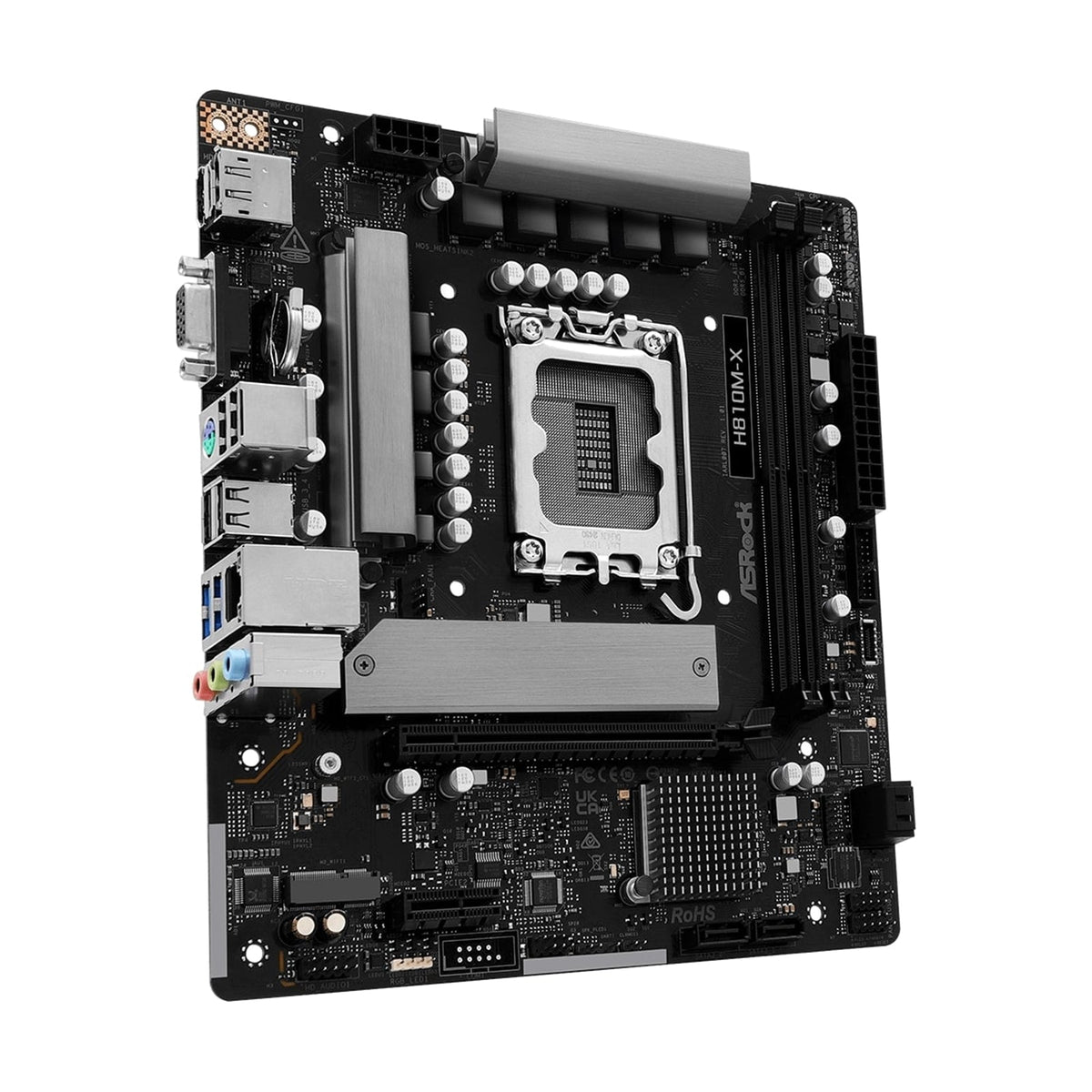

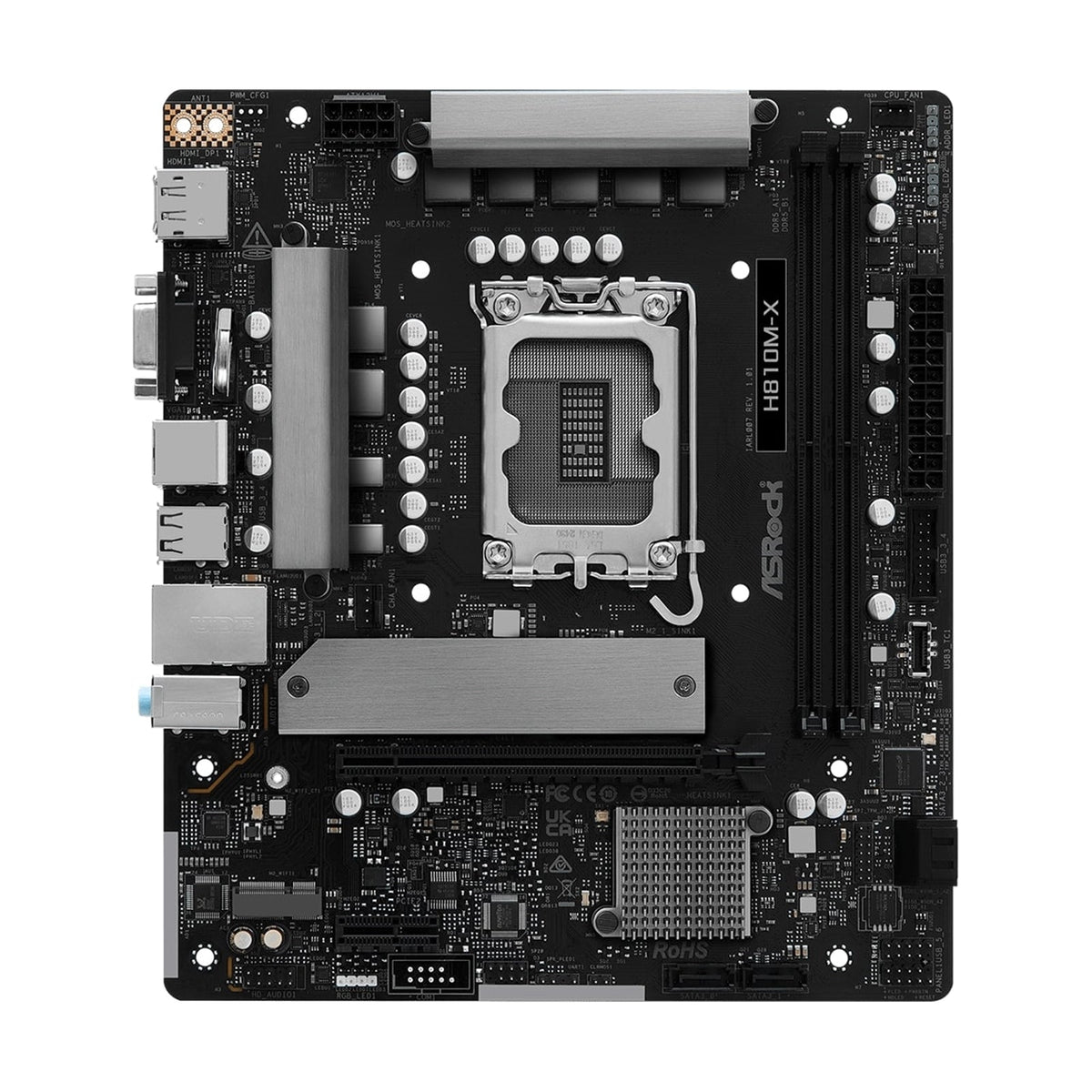

ASRock H810M-X Intel Socket 1851 Motherboard

ASRock H810M-XX Series Micro ATX Motherboard

The ASRock H810M-XX Series motherboard delivers a compact, high-value platform that balances performance, versatility, and reliability for both professional workloads and everyday computing.

Key Features

High-Speed M.2 Solution

Hyper M.2 Gen4 x4

• Supports PCI Express 4.0 M.2 SSDs
• Capable of up to twice the speed of 3rd generation solutions
• Designed to deliver lightning-fast data transfer for responsive system performance

Intelligent Cooling Design

Aluminum Heatsink

• Optimized aluminum heatsink design for efficient heat dissipation
• Helps maintain stable thermal performance under heavy workloads such as gaming and productivity tasks
• Contributes to long-term system stability and durability

Dual Band 802.11ac WiFi & Bluetooth

• Integrated 802.11ac WiFi module (2.4 GHz / 5 GHz)
• Supports wireless networking and Bluetooth
• Aimed at reducing weak signals and sluggish internet connectivity

Dragon 2.5 Gb/s LAN

• 2.5 Gigabit LAN (10/100/1000/2500 Mb/s)
• Can boost networking performance up to 2.5X the bandwidth of standard Gigabit Ethernet
• Designed for demanding home networking, content creation, online gaming, and high-quality streaming
• Enables faster, uncompromised connectivity for gaming, file transfers, and backups

Front USB 3.2 Gen1 Type-C

• Front panel USB 3.2 Gen1 Type-C header
• Supports up to 5 Gbps data transfer rate
• Reversible connector for easier front-panel access

Polychrome RGB & SignalRGB

Polychrome RGB

• Onboard RGB headers and addressable RGB headers
• Connect compatible LED devices such as strips, CPU fans, coolers, and chassis lighting
• Synchronize RGB devices across Polychrome RGB Sync-certified accessories to create custom lighting effects

SignalRGB

• Unifies RGB devices for seamless customization
• Supports game-reactive effects, macro automation, and system monitoring
• Official partnership enhances lighting control, device compatibility, and customization flexibility on ASRock motherboards

Triple Display Support

3 Graphics Outputs

• D-Sub + DisplayPort + HDMI
• Offers three of the most commonly used display connectors for flexible multi-monitor setups

Auto Driver Installer

• LAN driver preinstalled to simplify driver setup
• No optical disk drive required

Simple 3-Step Process:

1. Install Auto Driver Installer
2. Update required drivers
3. Done

Specifications

Unique Features

• Superb Productivity
• Dual Channel DDR5
• Rock-Solid Durability
• 6+1+1+1+1 Power Phase
• ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
• Ultrafast Connectivity
• 2.5G LAN
• EZ Update – ASRock Auto Driver Installer

CPU

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• Supports Intel Hybrid Technology
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel Thermal Velocity Boost (TVB)
• Supports Intel Adaptive Boost Technology (ABT)
• Integrated NPU for dedicated AI acceleration

Chipset

• Intel H810

Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM slots
• Supports DDR5 non-ECC, un-buffered memory up to 6400
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Maximum system memory capacity: 128 GB
• Supports Intel Extreme Memory Profile (XMP) 3.0

Graphics

• Intel Xe LPG Graphics Architecture

Outputs:

• 1 x HDMI 2.1 TMDS/FRL 8G compatible
• Supports HDR, HDCP 2.3
• Max resolution up to 4K 120 Hz
• 1 x DisplayPort 1.4 with DSC (compressed)
• Supports HDCP 2.3
• Max resolution up to 8K 60 Hz / 5K 120 Hz
• 1 x D-Sub
• Max resolution up to Full HD (1920 x 1080) 60 Hz

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

• 2.5 Gigabit LAN (10/100/1000/2500 Mb/s)
• Dragon RTL8125BG controller

Dragon 2.5G LAN Software Features:

• Smart Auto Adjust Bandwidth Control
• Visual user-friendly UI
• Visual network usage statistics
• Optimized default settings for Game, Browser, and Streaming modes
• User-customized priority control

Expansion Slots

CPU:

• 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode

Chipset:

• 1 x PCIe 4.0 x1 slot (PCIE2)
• 1 x M.2 socket (Key E), supports type 2230 PCIe WiFi/BT module

Storage

Chipset:

• 1 x Hyper M.2 socket (M2_1, Key M)
• Supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• 4 x SATA3 6.0 Gb/s connectors

USB

Chipset:

• 1 x USB 3.2 Gen1 Type-C (front)
• 4 x USB 3.2 Gen1 Type-A (2 rear, 2 front)
• 6 x USB 2.0 (4 rear, 2 front)

Internal Connectors

• 1 x SPI TPM header
• 1 x Power LED and Speaker header
• 1 x RGB LED header
• 2 x Addressable LED headers
• 1 x CPU fan connector (4-pin, Smart Fan Speed Control)
• 1 x Chassis fan connector (4-pin, Smart Fan Speed Control)
• 1 x 24-pin ATX power connector
• 1 x 8-pin 12V power connector
• 1 x Front panel audio connector
• 1 x USB 2.0 header (supports 2 x USB 2.0 ports)
• 1 x USB 3.2 Gen1 header (supports 2 x USB 3.2 Gen1 ports)
• 1 x Front panel Type-C USB 3.2 Gen1 header

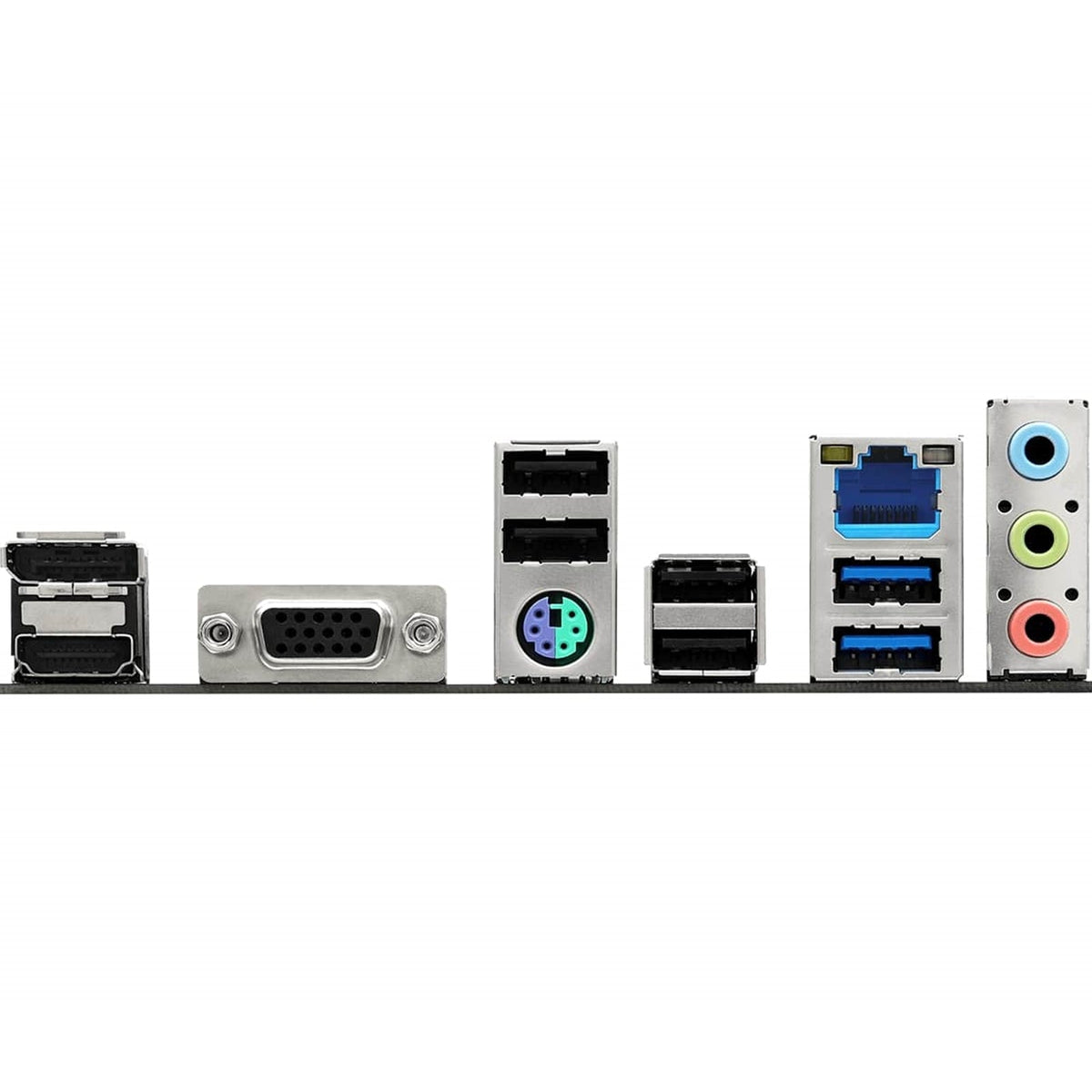

Rear Panel I/O

• 2 x Antenna mounting points
• 1 x PS/2 mouse/keyboard port
• 1 x D-Sub port
• 1 x HDMI port
• 1 x DisplayPort 1.4
• 2 x USB 3.2 Gen1 ports
• 4 x USB 2.0 ports
• 1 x RJ-45 LAN port
• HD audio jacks: Line in / Front speaker / Microphone

Software & UEFI

Software:

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC

UEFI:

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Accessories

• 1 x I/O shield
• 2 x SATA data cables
• 1 x Screw for M.2 socket

Form Factor

• Micro ATX
• 8.66 in x 7.6 in (22.0 cm x 19.3 cm)

Operating System

• Microsoft Windows 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
