ASRock H610M-HDV/M.2 D5 Gen5 Intel 1700 Socket Motherboard

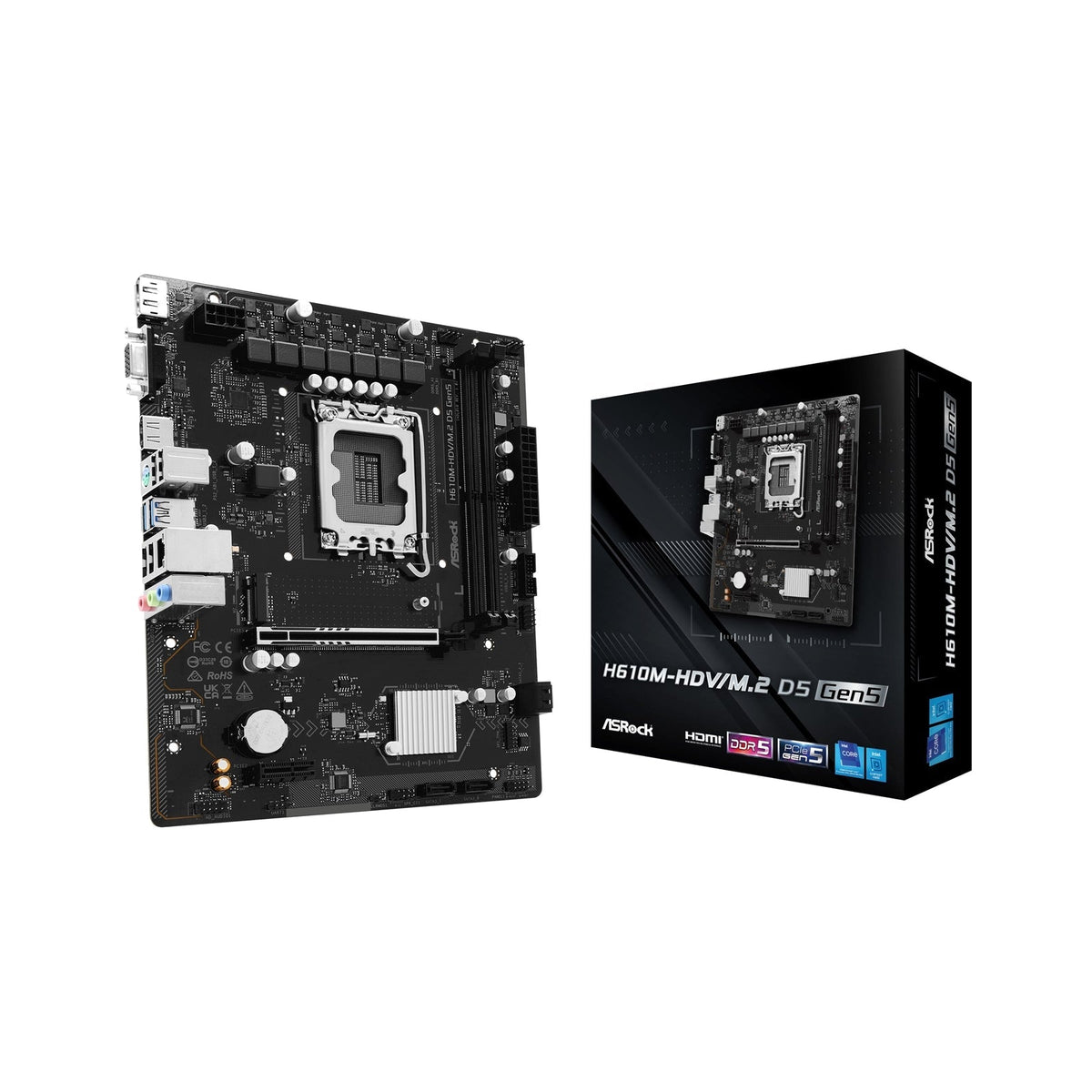

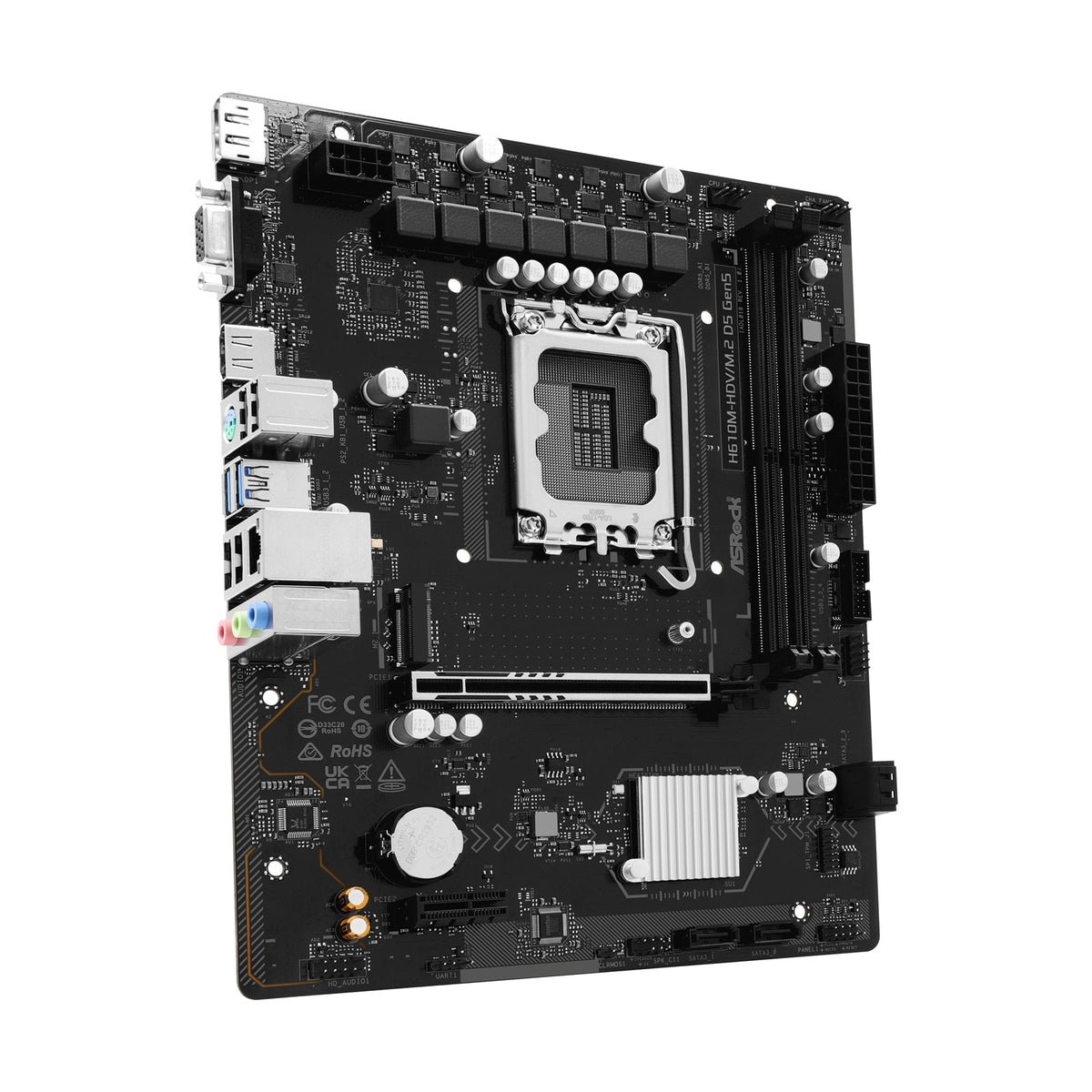

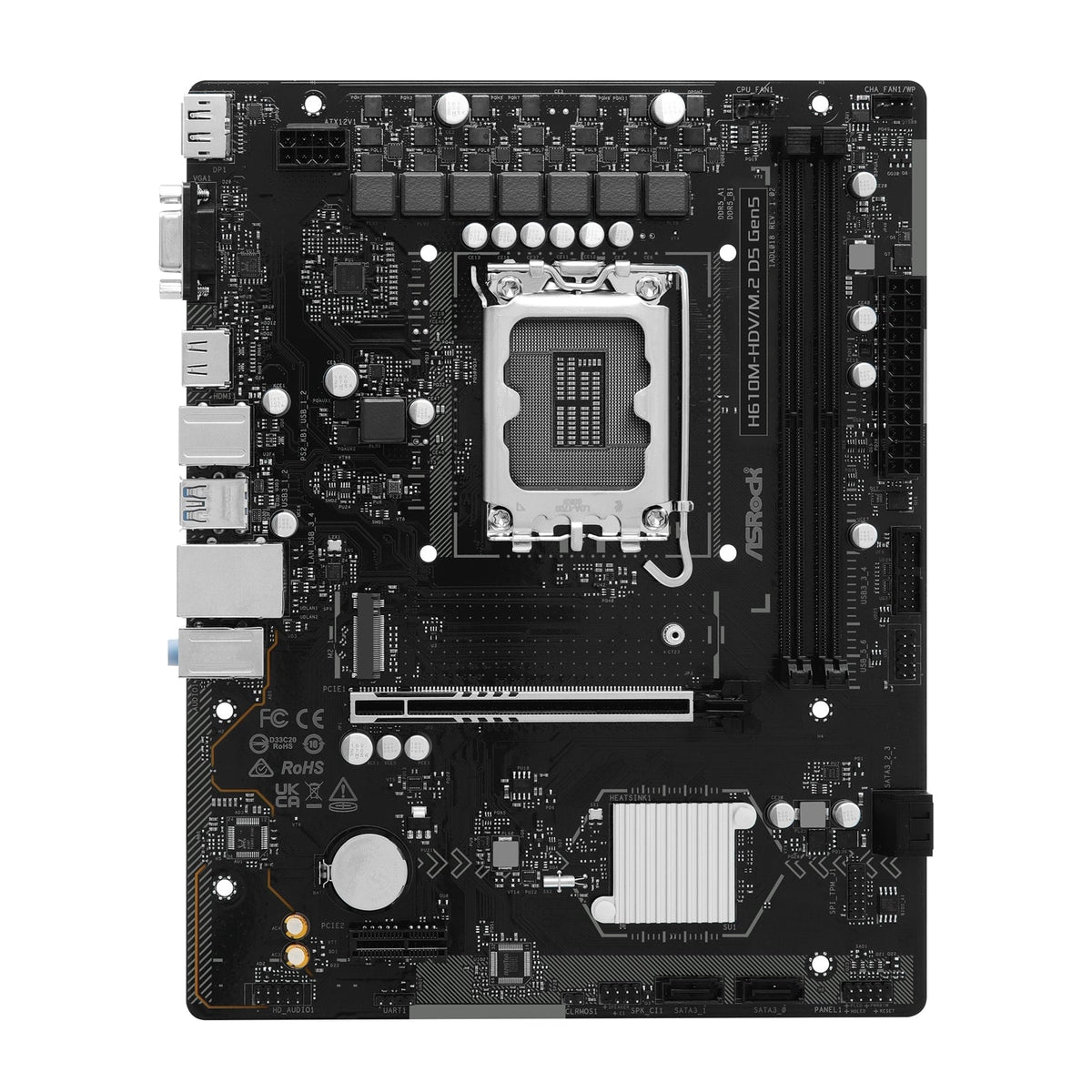

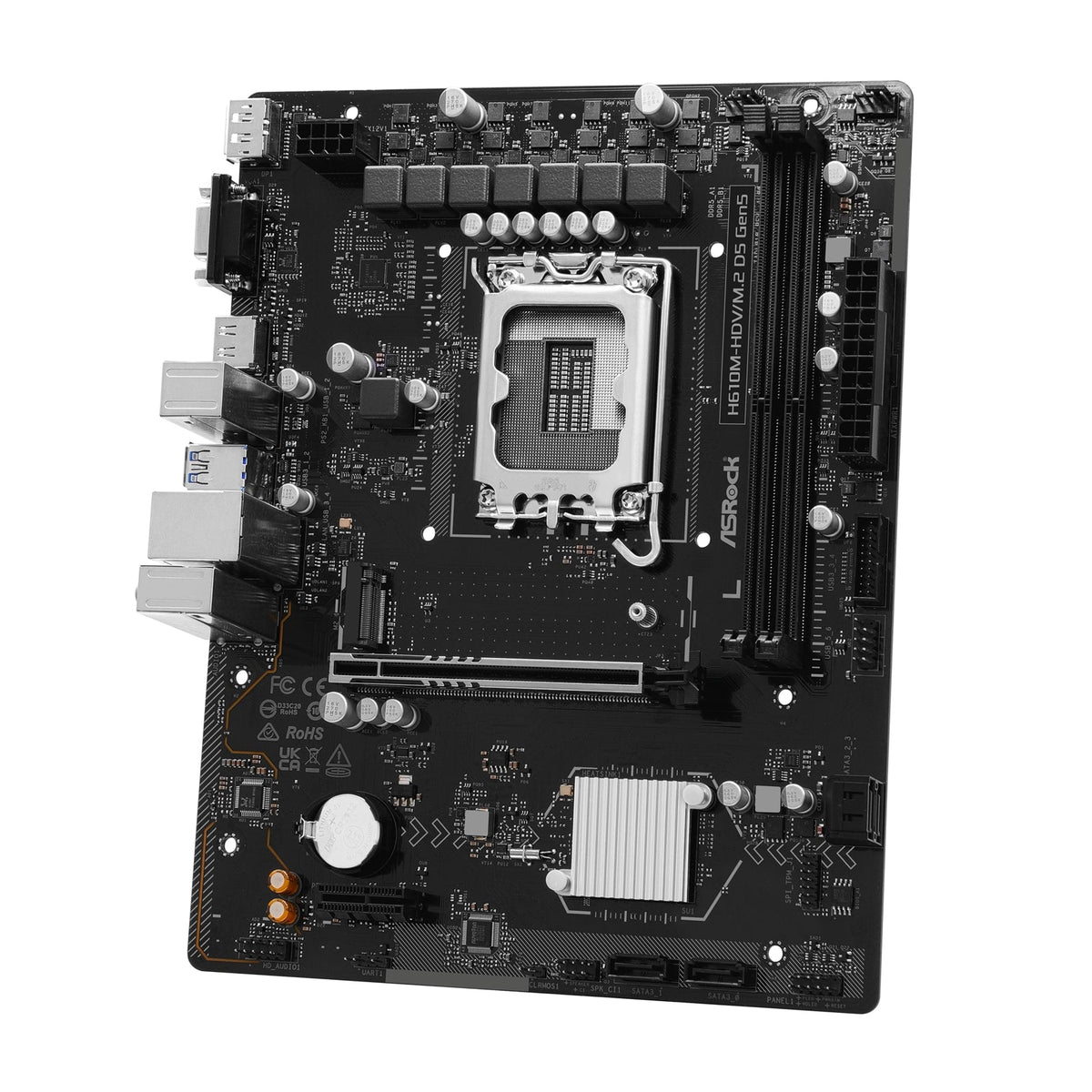

ASRock H610M-HDV/M.2 D5 Gen5 Micro ATX Motherboard

The ASRock H610M-HDV/M.2 D5 Gen5 is a micro ATX motherboard designed for 14th, 13th, and 12th Gen Intel® Core™ processors, offering PCIe Gen5 graphics support, dual channel DDR5 memory, and robust power delivery for dependable everyday performance.

Key Features

Superb Productivity

• PCIe Gen5 support for graphics
• Dual Channel DDR5 memory support

Rock-Solid Durability

• 6+1+1 power phase design
• ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology

EZ Update

• ASRock Auto Driver Installer

CPU & Chipset

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Chipset: Intel® H610

Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM slots
• 14th & 13th Gen Intel® Core™ Processors: DDR5 non-ECC, un-buffered memory up to 5600*
• 12th Gen Intel® Core™ Processors: DDR5 non-ECC, un-buffered memory up to 4800*
• Max. system memory capacity: 128GB*
• Supports Intel® Extreme Memory Profile (XMP) 3.0

Graphics

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS compatible, supports:
• HDCP 2.3
• Max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports:
• HDCP 2.3
• Max. resolution up to 8K 60Hz / 5K 120Hz
• 1 x D-Sub, supports:
• Max. resolution up to Full HD (1920x1080) 60Hz

Audio & LAN

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Gigabit LAN 10/100/1000 Mb/s (Realtek 8111H)
• Wireless LAN: N/A

Expansion Slots

CPU: - 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode*

Chipset: - 1 x PCIe 3.0 x1 slot (PCIE2)

Storage

Chipset: - 1 x Ultra M.2 socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s connectors

RAID: N/A

USB Connectivity

Chipset: - 4 x USB 3.2 Gen1 (2 rear, 2 front)
- 6 x USB 2.0 (4 rear, 2 front)

Internal Connectors

• 1 x SPI TPM header
• 1 x Chassis intrusion and speaker header
• 1 x CPU fan connector (4-pin) (Smart Fan Speed Control)*
• 1 x Chassis/Water Pump fan connector (4-pin) (Smart Fan Speed Control)**
• 1 x 24-pin ATX power connector
• 1 x 8-pin 12V power connector
• 1 x Front panel audio connector
• 1 x USB 2.0 header (supports 2 x USB 2.0 ports)
• 1 x USB 3.2 Gen1 header (supports 2 x USB 3.2 Gen1 ports)

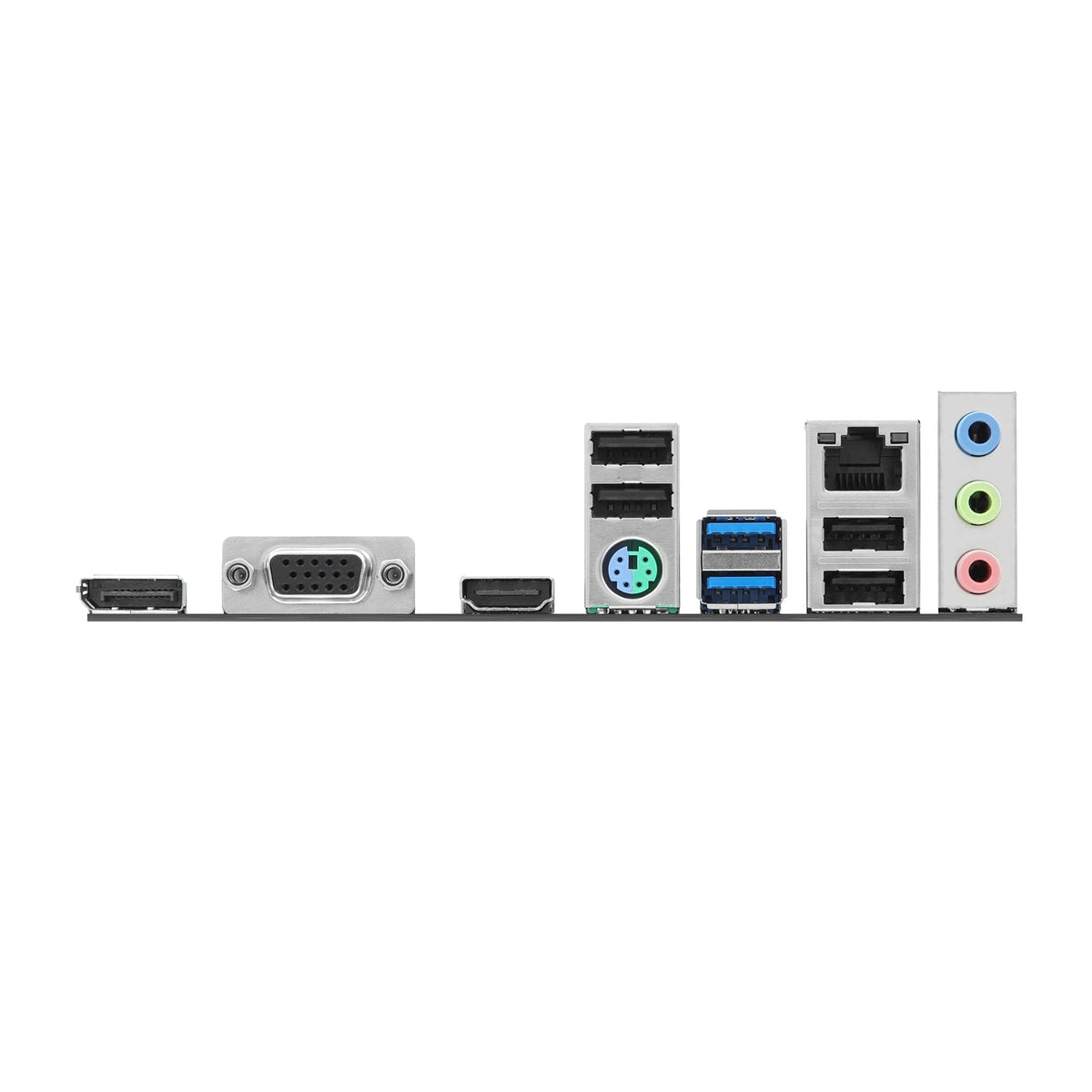

Rear Panel I/O

• 1 x PS/2 mouse/keyboard port
• 1 x D-Sub port
• 1 x HDMI port
• 1 x DisplayPort 1.4
• 2 x USB 3.2 Gen1 ports
• 4 x USB 2.0 ports
• 1 x RJ-45 LAN port
• HD Audio jacks: Line In / Front Speaker / Microphone

BIOS & Software

• 128Mb AMI UEFI Legal BIOS with GUI support

Software: - ASRock Motherboard Utility (A-Tuning)*

UEFI Features: - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories

• 1 x I/O shield
• 2 x SATA data cables
• 1 x Screw for M.2 socket

Form Factor & Design

• Micro ATX form factor: 9.6 in x 7.6 in (24.4 cm x 19.3 cm)
• Solid capacitor design

Operating System Support

• Microsoft Windows® 10 64-bit
• Microsoft Windows® 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply required)
