DS3230 Pro 180°

DS3230Pro 30KG Large Torque Digital Servo

The DS3230Pro is a high-torque digital servo designed for stable performance across a wide temperature range. Built with a durable engineering plastic and aluminum alloy case, it combines precise digital control with robust mechanical construction.

Environmental Conditions

• Storage temperature: -30°C to 80°C

• Operating temperature: -25°C to 70°C

Mechanical Specifications

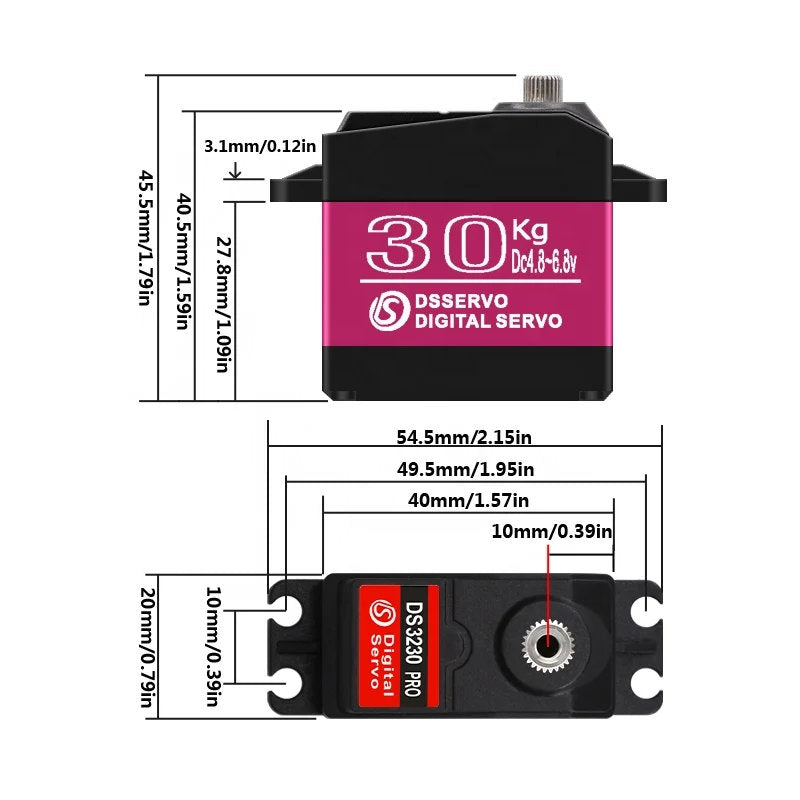

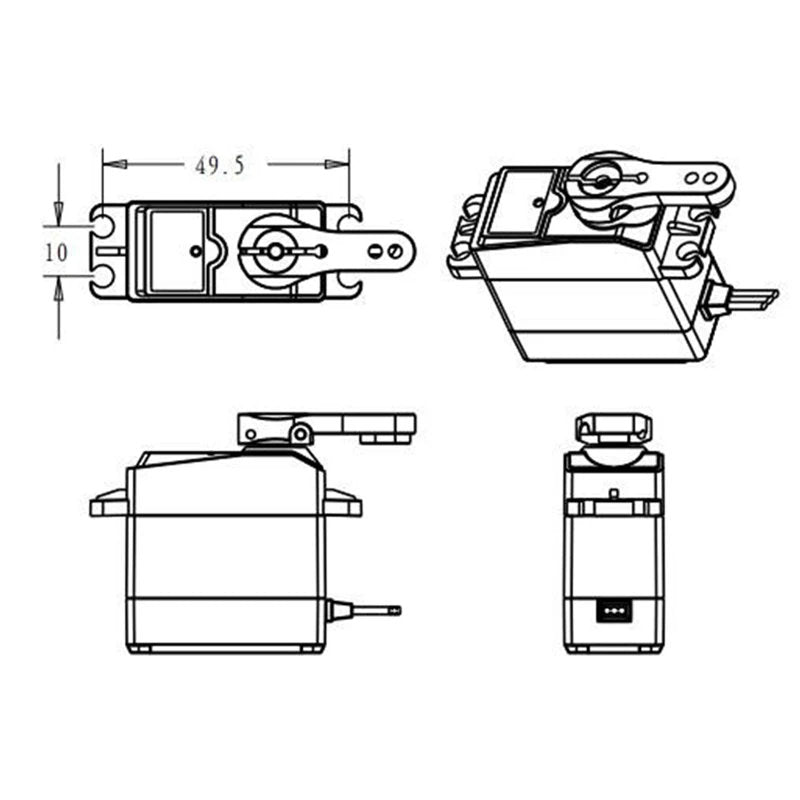

• Dimensions: 40.0 × 20 × 40.5 mm

• Weight: 78 g ±2 g

• Limit angle: 180°

• Bearing: Dual ball bearing (2BB)

• Horn gear spline: 25T

  • Diameter: 5.9 mm

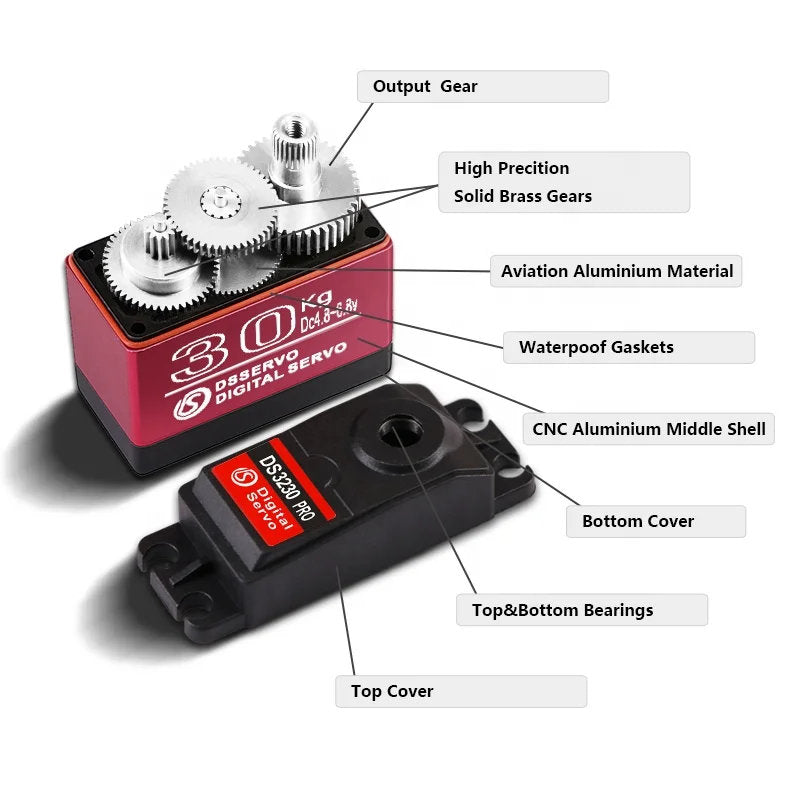

• Case material: Engineering plastics + aluminum alloy

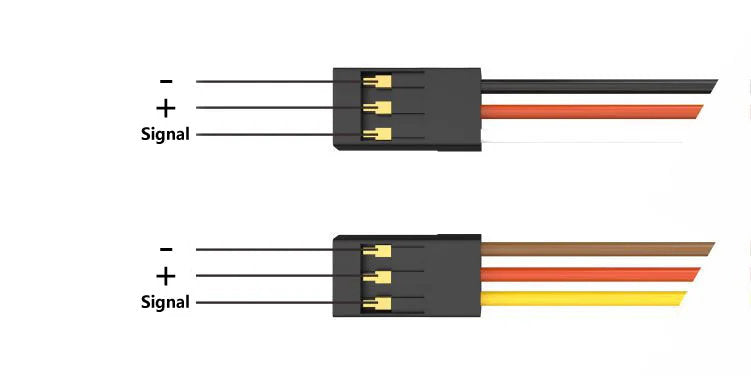

• Connector wire length: 320 mm ±5 mm

• Motor type: Carbon brush motor

Electrical Specifications

• Working voltage range: 4.8 – 6.8 V

• Command signal: Pulse Width Modulation (PWM)

• Amplifier type: Digital controller

• Pulse width range: 500–2500 µsec

• Neutral position: 1500 µsec

• Running degree:

  • 180° ±3° (PWM 500–2500 µsec)

  • 270° ±3° (PWM 500–2500 µsec)

• Dead band width: 3 µsec

• Rotating direction: Counterclockwise (1000–2000 µsec)

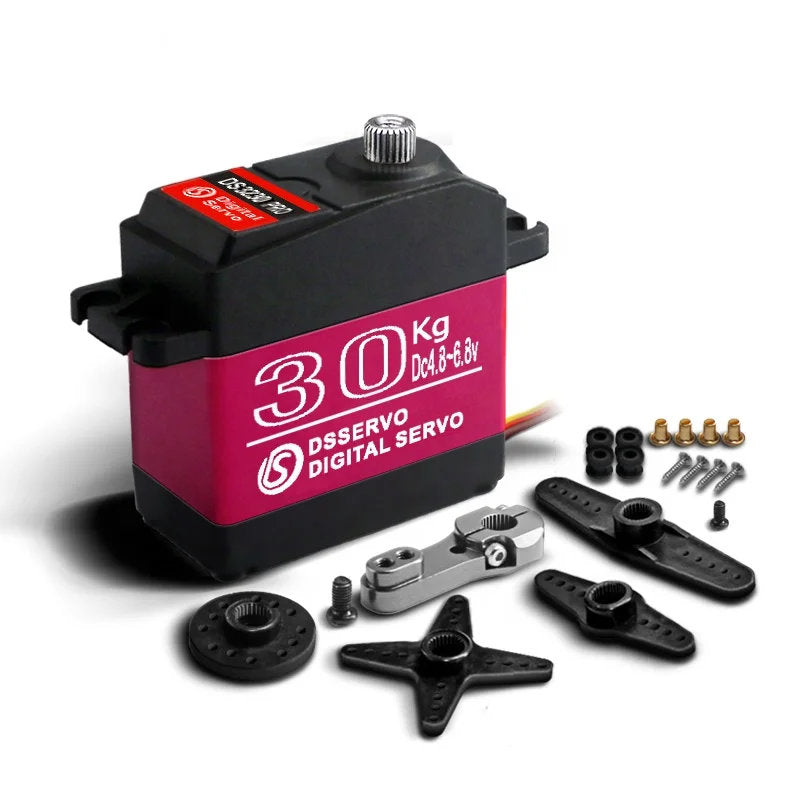

Package Contents

• 1 × Digital servo

• 1 × 25T adjustable metal servo arm

• 1 × Accessory bag

This digital servo offers precise control, solid construction, and reliable operation for applications requiring large torque and consistent performance.
