Gigabyte Z790 EAGLE AX Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port
$302.00

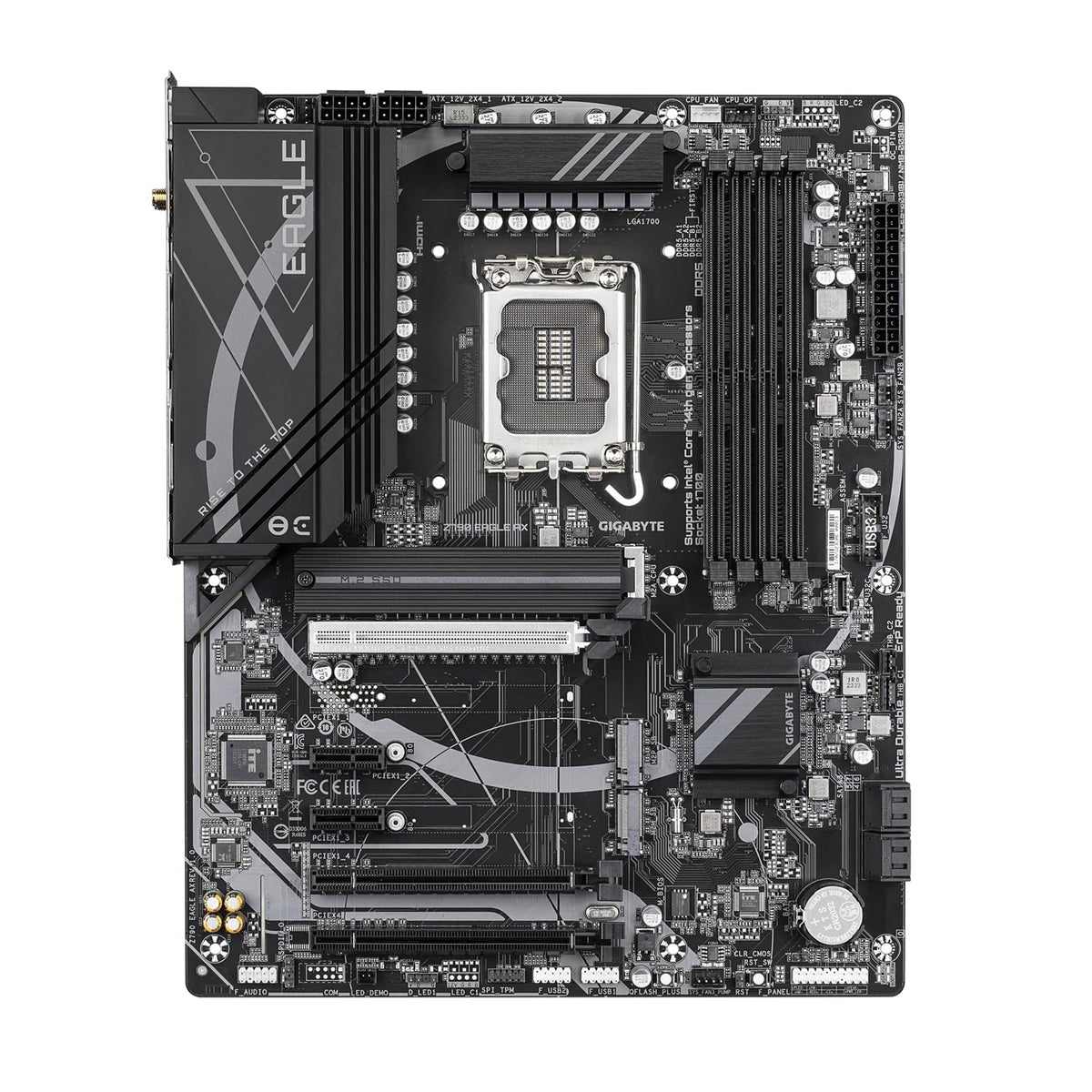

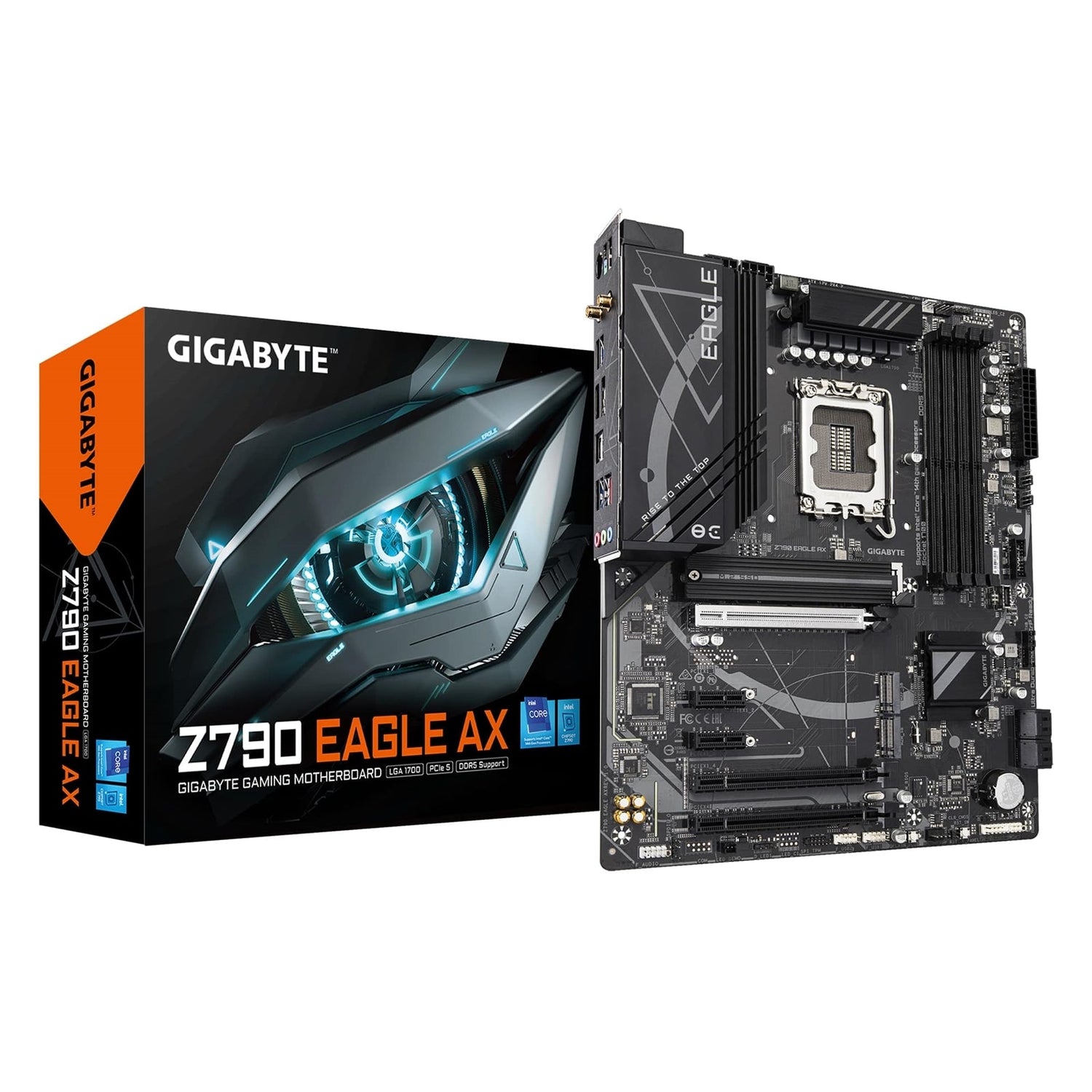

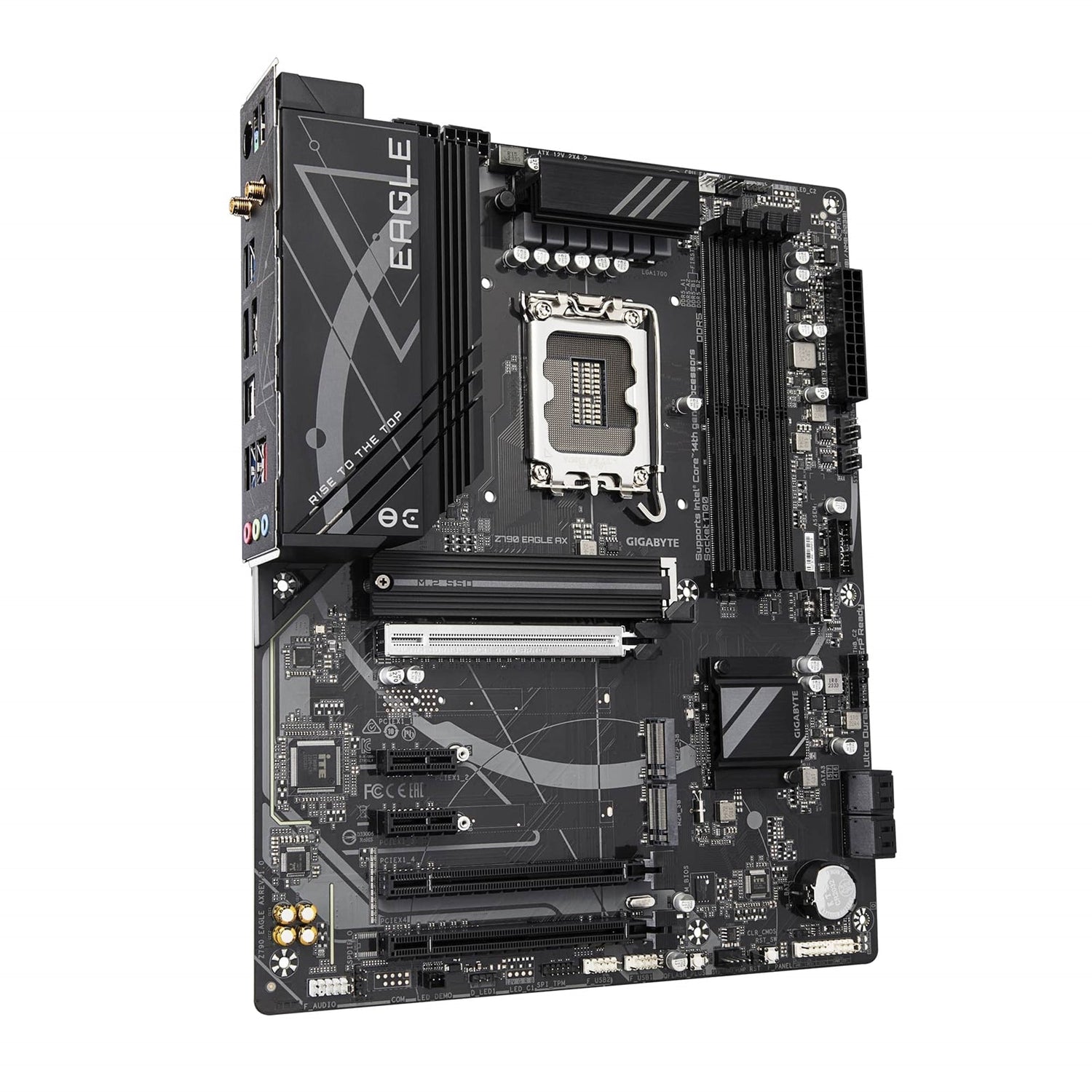

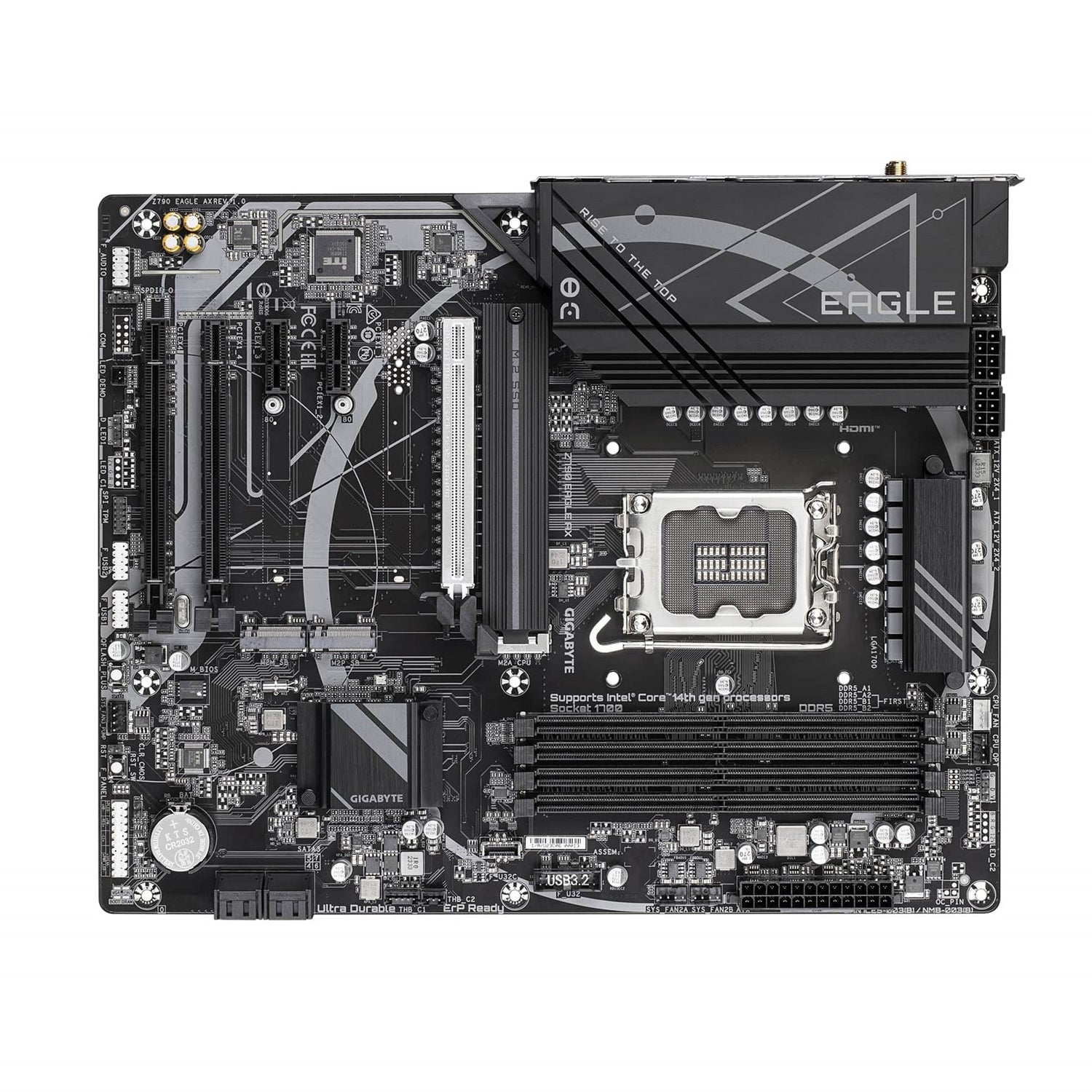

GIGABYTE Z790 EAGLE AX (rev. 1.0) ATX Motherboard
The GIGABYTE Z790 EAGLE AX (rev. 1.0) is engineered for 14th, 13th, and 12th Gen Intel processors, delivering high-end performance, next-generation connectivity, and robust cooling for modern gaming and productivity builds.
Key Features
-
CPU Support: Intel LGA1700 socket
Supports Intel Core 14th / 13th / 12th Gen, Pentium Gold, and Celeron processors -
Unparalleled Performance
- Twin 12+1+1 phases digital VRM solution
-
Digital PWM with Low RDS(on) MOSFETs
-
DDR5 Memory
- Dual channel DDR5
- 4 x DIMM slots with XMP 3.0 support
-
DDR5 overclocking up to 7600 MT/s and beyond*
-
Next-Gen Storage
- 3 x PCIe 4.0 x4 M.2 connectors
-
Support for NVMe and SATA (per slot specification)
-
Advanced Thermal Design
- Enlarged MOSFET heatsink
-
M.2 Thermal Guard to help maintain VRM power stability and M.2 SSD performance
-
PCIe & EZ-Latch
- PCIe 5.0 x16 primary slot
-
EZ-Latch quick-release design for easier graphics card removal
-
High-Speed Networking
- 2.5GbE LAN
- Wi-Fi 6E (802.11ax) with 2.4/5/6 GHz band support
-
Bluetooth 5.3
-
Extended Connectivity
- DisplayPort and HDMI video outputs
-
Rear USB-C 10Gb/s
-
Smart Fan 6
- Multiple temperature sensors
- Hybrid fan headers with PWM/DC and FAN STOP
-
Advanced fan curve control and profiles in BIOS
-
Q-Flash Plus
-
Update BIOS without CPU, memory, or graphics card installed
-
Ultra Durable Design
- Built with optimized components for stable, long-term performance
*Memory overclocking capability varies by CPU and memory configuration.
Premium Networking & Connectivity
Wi-Fi 6E 802.11ax
- Supports 2.4/5/6 GHz bands
- Wireless speeds up to 2.4 Gbps
- Smooth streaming, improved gaming experience, and fewer dropped connections
- Bluetooth 5.3 with increased range and faster transmission
2.5GbE LAN
- Realtek 2.5GbE LAN chip
- Supports 2.5 Gbps / 1 Gbps / 100 Mbps
- Designed for low-latency gaming and high-speed data transfer
PCIe 5.0 / 4.0 Hardware Design
- PCIe 5.0 x16 graphics slot
- PCIe 4.0 M.2 storage support
- Built to work with PCIe 5.0 / 4.0 devices for superior performance
Hi-Fi Audio
- Realtek high definition audio codec
- High-end audio capacitors for high-resolution, high-fidelity sound
- Audio Noise Guard design to help reduce PCB-level interference
- Supports 2/4/5.1/7.1-channel audio and S/PDIF Out
Easy, Builder-Friendly Design
EZ-Latch
- Quick-release PCIe slot design
- Easily unlock and remove graphics cards from the PCIe slot
Q-Flash Plus (BIOS Update Without CPU/Memory/GPU)
- Plug the 24-pin and 8-pin power cables into the motherboard.
- Download the motherboard BIOS file, rename it to
gigabyte.bin, save it to a FAT32 USB flash drive, and insert it into the Q-FLASH PLUS USB port. - Press the Q-FLASH PLUS button to start automatic BIOS updating.
Smart Fan 6 Cooling Control
Smart Fan 6 is designed to ensure optimal cooling and quiet operation with flexible configuration:
- High Current Support
- Each fan header supports PWM/DC fans and water cooling pumps
-
Up to 24W (12V x 2A) with over-current protection
-
Precision Control
-
Multiple temperature and fan speed control points for accurate fan curves
-
Dual Curve Mode
- Slope mode: Linear fan speed curve
-
Stair mode: Constant fan speed within defined temperature ranges
-
Fan Stop
- Fans can stop completely below user-defined temperature thresholds
Smart Fan 6 BIOS UI
- Enhanced fan curve UI with more control points (from 5 to 7) and a larger graph
- Slope/Stair dual graph mode for different usage scenarios
- Manual fan speed input for advanced fine-tuning
- EZ Tuning: Define 4 basic temp/speed points and auto-generate a curve
- Fan Curve Profile stored in BIOS ROM and retained after BIOS updates
UC BIOS & PerfDrive
- Redesigned BIOS UI and UX with an intuitive, visually refined interface
- Quick Access: 9 customizable slots in Easy Mode
- PerfDrive: Exclusive BIOS settings to optimize performance based on cooling configuration
Specifications
CPU
| Feature | Details |
|---|---|
| Socket | LGA1700 |
| Support | 14th, 13th, 12th Gen Intel Core, Pentium Gold, Celeron |
| Cache | L3 cache varies with CPU |
Chipset
| Feature | Details |
|---|---|
| Chipset | Intel Z790 Express |
Memory
| Feature | Details |
|---|---|
| Architecture | Dual channel DDR5 |
| Slots | 4 x DDR5 DIMM, up to 192 GB (48 GB per DIMM) |
| 14th & 13th Gen Core i9/i7 | DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 4800 / 4400 MT/s |
| 13th Gen Core i5/i3 & 12th Gen Core/Pentium Gold/Celeron | DDR5 4800 / 4400 MT/s |
| Module Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode), non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP | Support for Extreme Memory Profile (XMP) modules |
Onboard Graphics
| Port | Max Resolution |
|---|---|
| HDMI | 4096 x 2160 @ 60 Hz |
| DisplayPort | 4096 x 2304 @ 60 Hz |
Audio
| Feature | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Channels | 2/4/5.1/7.1-channel |
| Digital Output | S/PDIF Out support |
LAN
| Feature | Details |
|---|---|
| Controller | Realtek 2.5GbE LAN chip |
| Speeds | 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication (varies by PCB revision)
| PCB rev. | Module | Wi-Fi Standard | Bands | Bluetooth | Notes |
|---|---|---|---|---|---|
| 1.0 | Intel Wi-Fi 6E AX211 | 802.11a/b/g/n/ac/ax | 2.4/5/6 GHz | 5.3 | Supports 11ax 160 MHz |
| 1.1 | Realtek Wi-Fi 6E RTL8852CE | 802.11a/b/g/n/ac/ax | 2.4/5/6 GHz | 5.3 | Supports 11ax 160 MHz |
Expansion Slots
| Source | Slot | Standard | Lanes |
|---|---|---|---|
| CPU | 1 x PCIe x16 (PCIEX16) | PCIe 5.0 | x16 |
| Chipset | 1 x PCIe x16 (PCIEX4) | PCIe 4.0 | x4 |
| Chipset | 1 x PCIe x16 (PCIEX1_4) | PCIe 3.0 | x1 |
| Chipset | 2 x PCIe x1 (PCIEX1_2, PCIEX1_3) | PCIe 3.0 | x1 |
Storage
| Source | Connector | Type | Support |
|---|---|---|---|
| CPU | 1 x M.2 (M2A_CPU) | Socket 3, M key, 22110/2280 | PCIe 4.0 x4/x2 SSD |
| Chipset | 1 x M.2 (M2P_SB) | Socket 3, M key, 2280 | PCIe 4.0 x4/x2 SSD |
| Chipset | 1 x M.2 (M2M_SB) | Socket 3, M key, 2280 | SATA & PCIe 4.0 x4/x2 SSD |
| Chipset | 4 x SATA 6Gb/s | — | SATA devices |
RAID Support
- NVMe SSD: RAID 0, 1, 5, 10
- SATA: RAID 0, 1, 5, 10
USB
| Source | Connector | Type | Location |
|---|---|---|---|
| Chipset | 1 x USB Type-C | USB 3.2 Gen 2 | Back panel |
| Chipset | 1 x USB Type-C | USB 3.2 Gen 1 | Internal header |
| Chipset | 1 x USB Type-A (red) | USB 3.2 Gen 2 | Back panel |
| Chipset | 6 x USB | USB 3.2 Gen 1 | 4 back, 2 internal header |
| Chipset + Hub | 2 x USB | USB 2.0/1.1 | Back panel |
| Chipset + Hub | 4 x USB | USB 2.0/1.1 | Internal headers |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x addressable LED strip headers
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C header (USB 3.2 Gen 1)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt add-in card connectors
- 1 x Trusted Platform Module header (GC-TPM2.0 SPI series only)
- 1 x reset button
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper

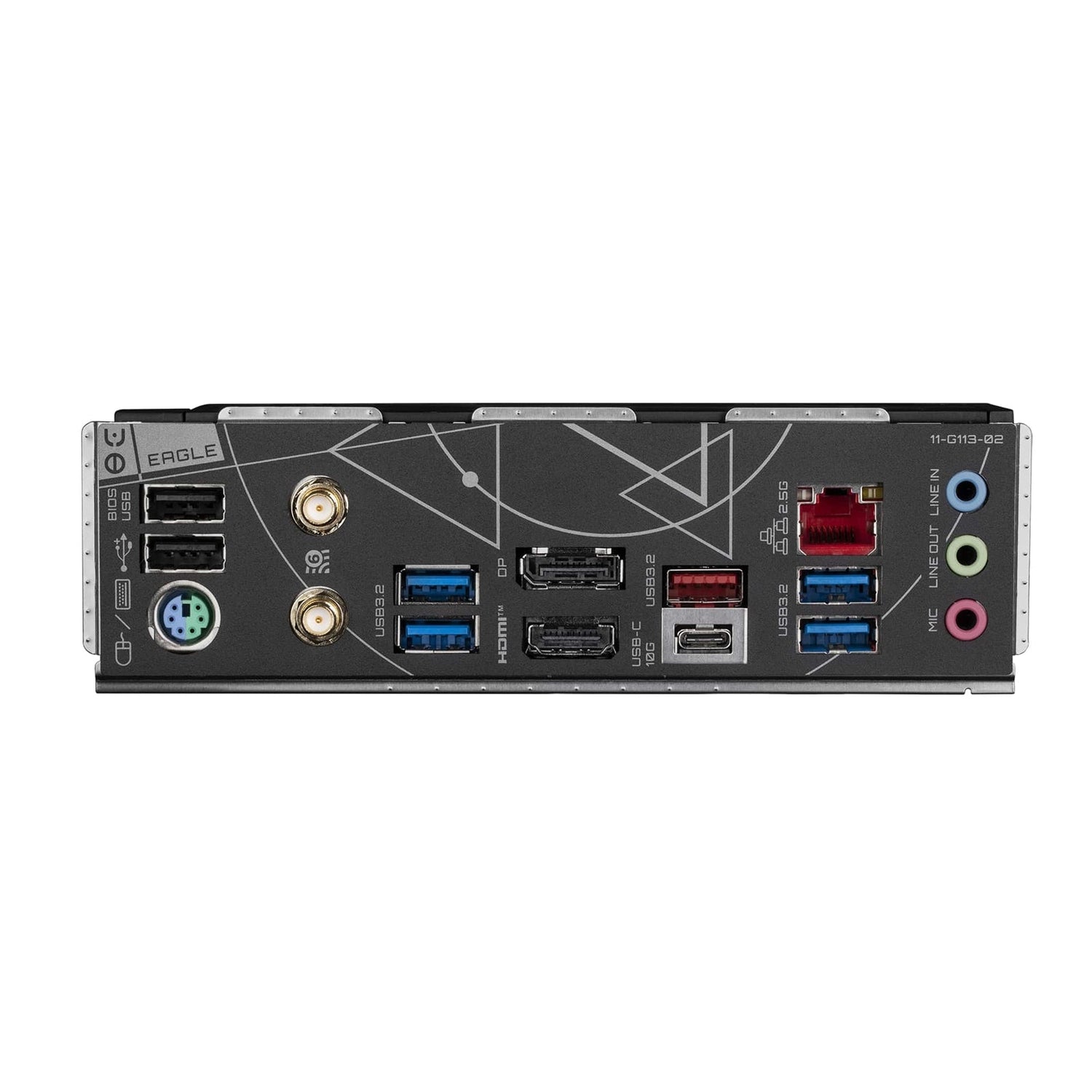

Back Panel Connectors
- 1 x PS/2 keyboard/mouse combo port
- 1 x USB Type-C (USB 3.2 Gen 2)
- 1 x USB 3.2 Gen 2 Type-A (red)
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (1T1R)
- 1 x HDMI port
- 1 x DisplayPort
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller & Monitoring
- iTE I/O controller chip
- Voltage, temperature, and fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 support
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Q-Flash and Q-Flash Plus
- Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- ATX
- Dimensions: 30.5 cm x 24.4 cm
